Flare apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 11, 2011
Grant Date -
N/A
app pub date -
Jun 29, 2007
filing date -
Jun 30, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

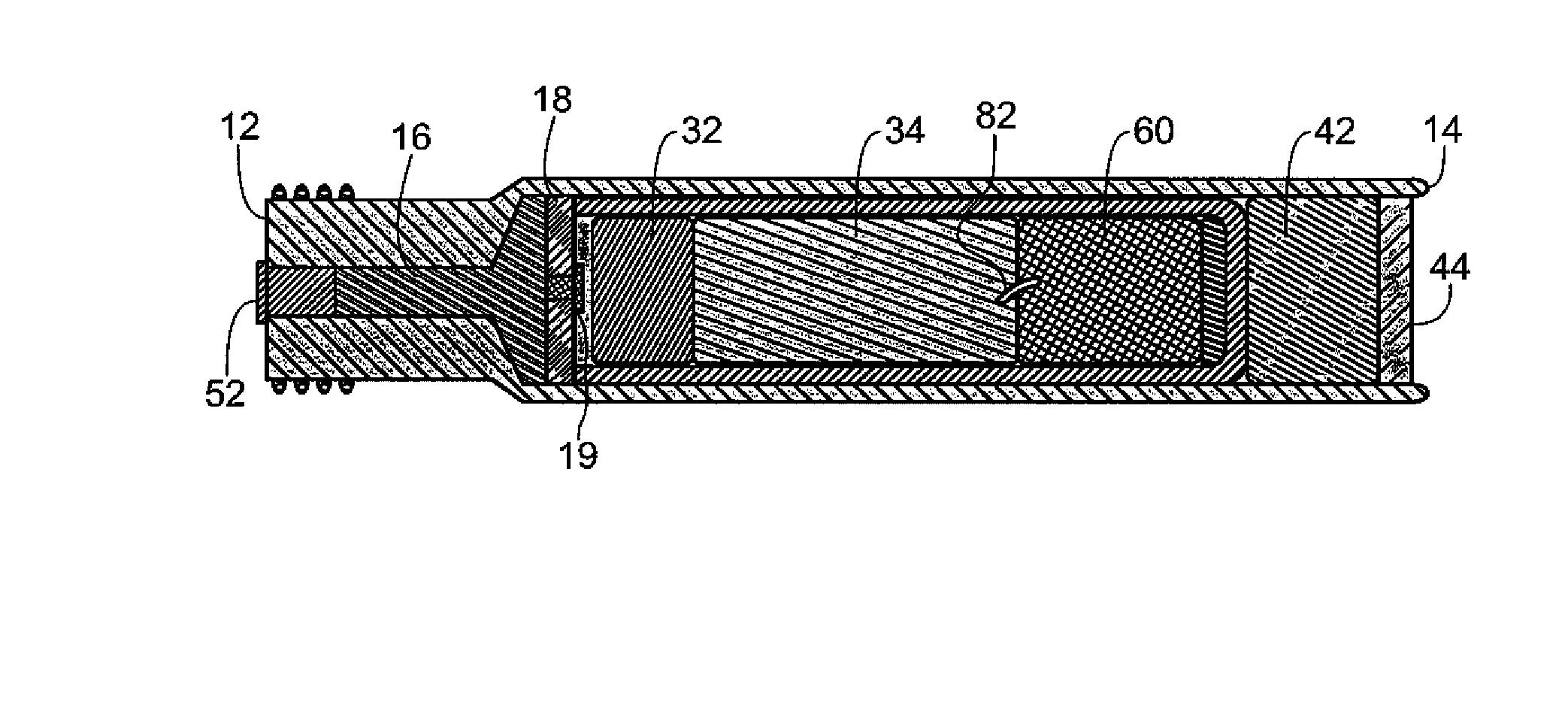

A flare apparatus constructed of a flare case with a primer functionally coupled to a propellant charge. Loaded within the flare case is a flare cup, having within, a starter composition, a flare composition, and a flash charge. The flare composition is functionally coupled to the flare starter composition, and the flash charge is functionally coupled to the flare composition. Upon primer activation the propellant charge is ignited. Flame and hot gasses from the propellant charge propel the flare cup out of the flare case and downrange while also igniting the flare starter composition within the flare cup. The flare starter composition ignites the flare composition, which produces a visual artifact and subsequently ignites the flash charge which produces a visual and audible artifact at or near the end of its flight.
First Claim
Other Claims data not available
