Method and device for adding one insert each to folded or bound printed products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 28, 2010
Grant Date -
Apr 23, 2009
app pub date -
Oct 4, 2006
filing date -
Apr 19, 2006
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

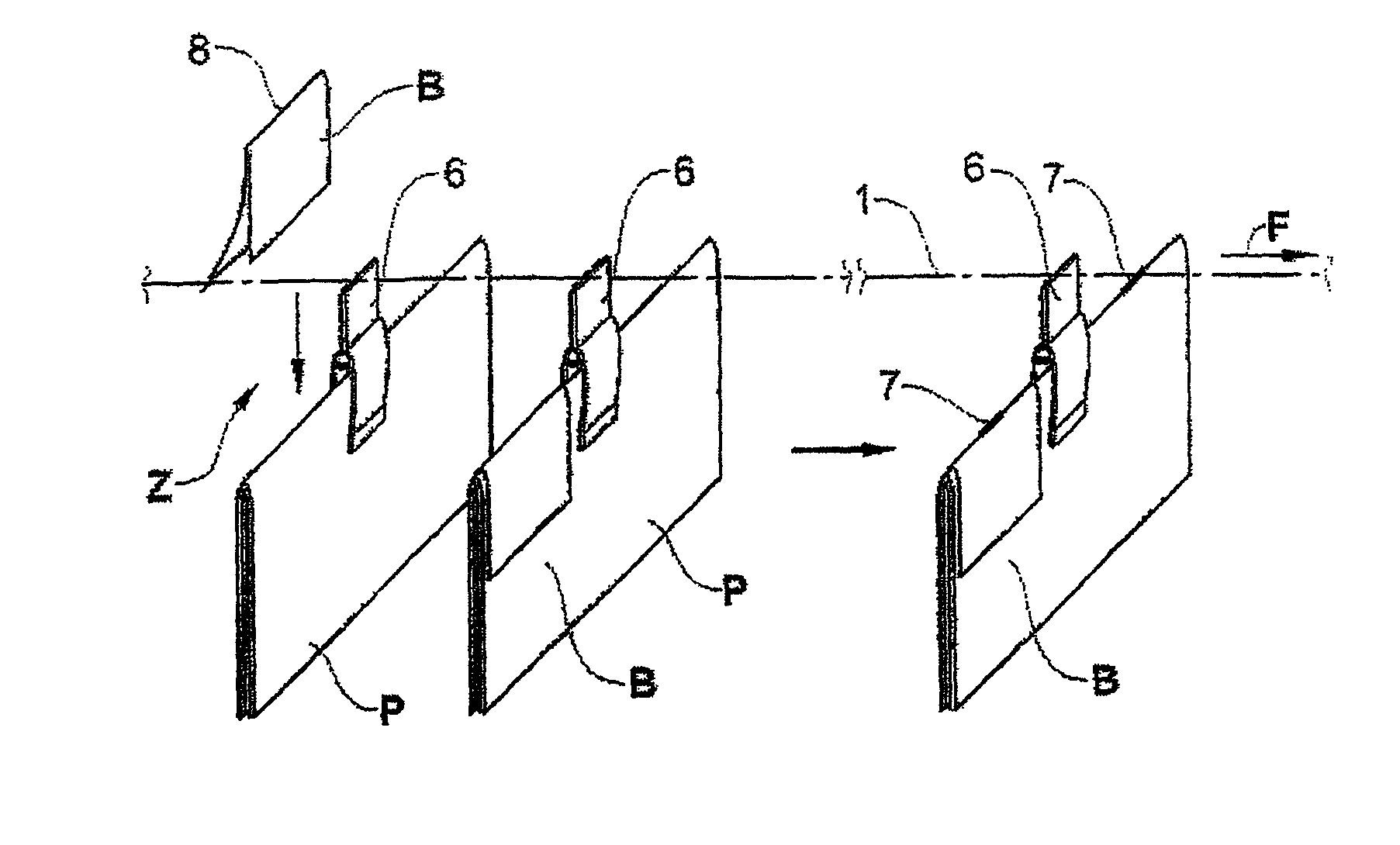

Folded inserts (B) are added to folded or bound printed products (P) which, held individually by transfer grippers (6), are conveyed in an essentially continuous fashion, in that the inserts are placed on the folded or rear edges of the printed products in a manner whereby their fold (8) is aligned with the folded or rear edge of the latter. If necessary, the inserts (B) are attached by gluing or stapling to the folded or rear edges of the printed products (P). For adding small inserts the printed products (P) can be conveyed with their folded or rear edges held by the transfer grippers (6) of a printed product conveyor (1) and the insert (B) can be placed next to the gripper (6). If the inserts are larger (B), an auxiliary conveyor takes over the printed products for the placement of the inserts. Such placement of inserts (B) into printed products (P) is simple and can, in particular, be implemented with conventional device components and easily integrated into existing equipment.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
FERAG AG | ZÜRICHSTRASSE 74 HINWIL 8340 |
International Classification(s)

- 2006 Application Filing Year
- B65H Class
- 1036 Applications Filed
- 578 Patents Issued To-Date
- 55.80 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Mockli, Heinz | Grut, CH | 6 | 12 |
# of filed Patents : 6 Total Citations : 12 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 15 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Jan 26, 2015 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Dec 28, 2014 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Dec 28, 2014 |
Dec 28, 2014 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | |
Aug 08, 2014 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Dec 06, 2013 | FEPP | FEE PAYMENT PROCEDURE | free format text: PAYOR NUMBER ASSIGNED (ORIGINAL EVENT CODE: ASPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
Dec 28, 2010 | I | Issuance | |
Apr 23, 2009 | P | Published | |
Nov 10, 2008 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNOR:MOCKLI, HEINZ;REEL/FRAME:021956/0899 Owner name: FERAG AG, SWITZERLAND Effective Date: Nov 10, 2008 |
Oct 04, 2006 | F | Filing | |
Apr 19, 2006 | PD | Priority Date |
