Load carrier for motor vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 28, 2010
Grant Date -
Jan 10, 2008
app pub date -
Jul 3, 2007
filing date -
Jul 8, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

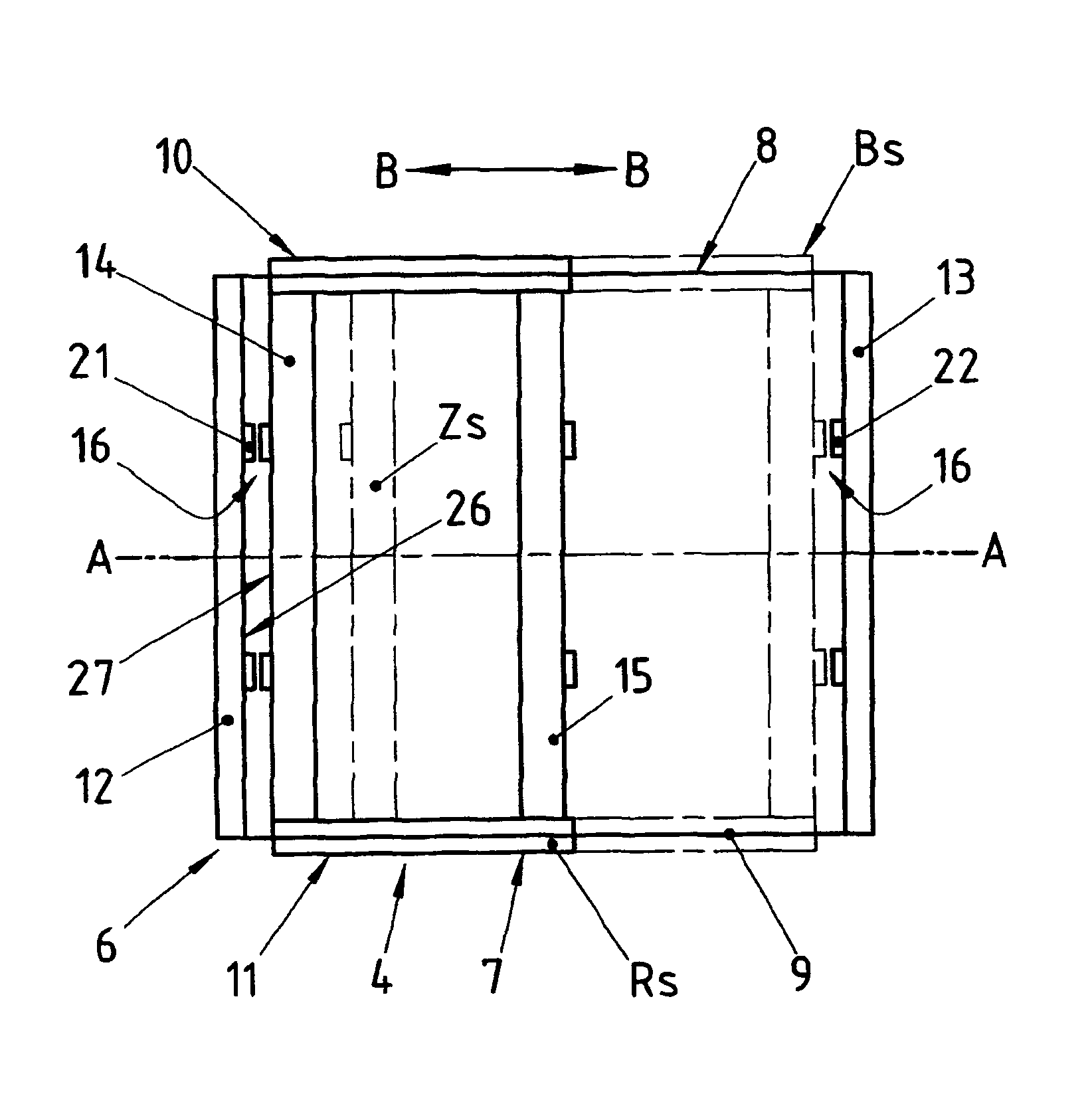

A bicycle carrier includes a base holder mountable to a vehicle and a support holder for holding a bicycle. The holders both include front and rear frames which extend transversely to a longitudinal vehicle direction. The support holder is movable in the longitudinal direction between a neutral position in which the holders extend over one another and an operating position in which the holders extend out from one another. The front frames meet when the support holder is in the neutral position and the rear frames meet when the support holder is in the operating position. A switch has a pair of switching components respectively located on one of the pair of front frames or the pair of rear frames. The switching components contact one another to activate the switch when the pair of frames meet and the switch actuates an indicator device upon being activated.
First Claim
Other Claims data not available
