Passive secondary air muffler
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 21, 2010
Grant Date -
Oct 9, 2008
app pub date -
Mar 7, 2008
filing date -
Aug 29, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

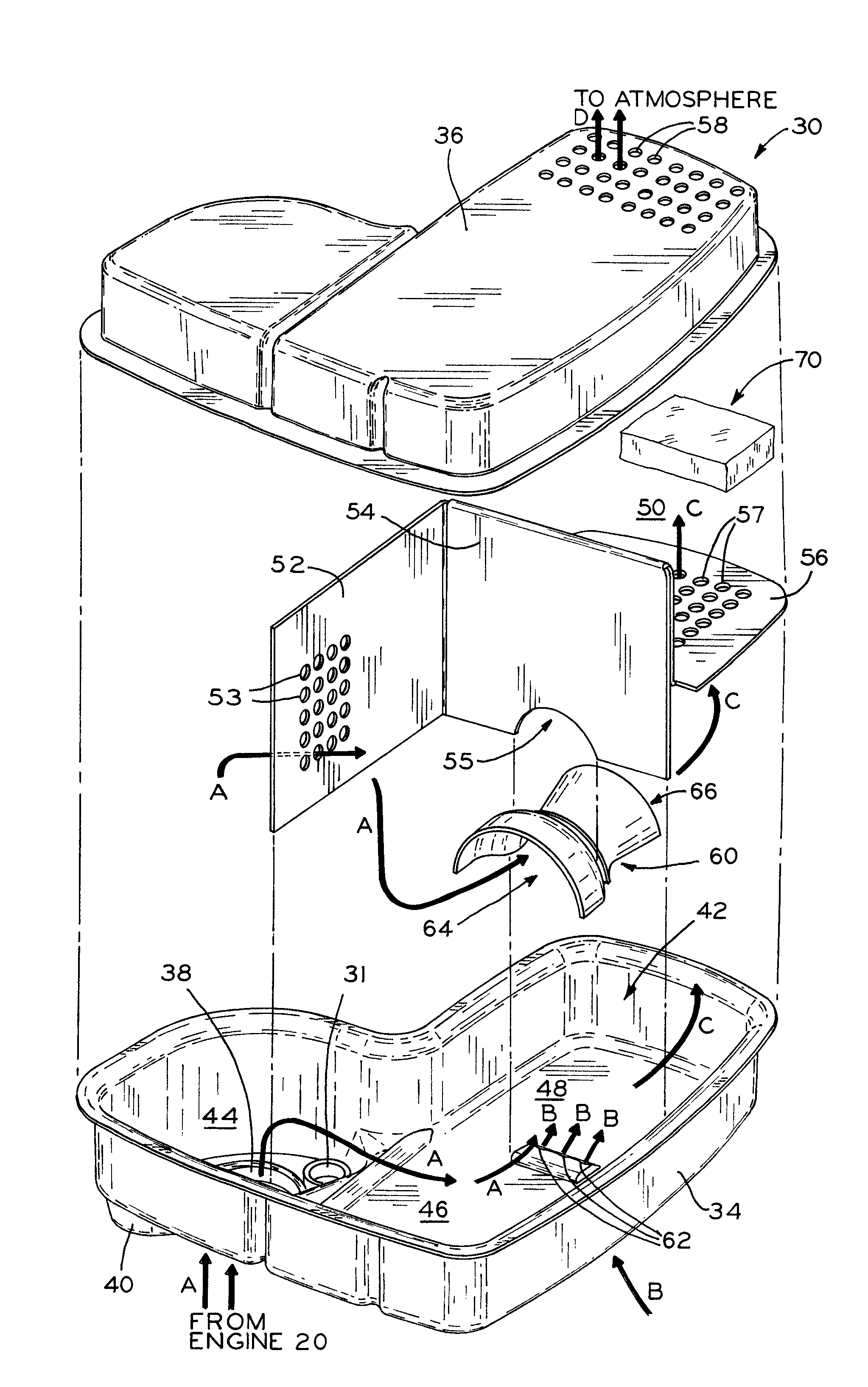

A passive secondary air muffler for a small internal combustion engine. The secondary air muffler may include a venturi device and a catalytic converter. The venturi device may be in the form of a stamped sheet metal insert which, along with the outer muffler housing or shell, forms a secondary or auxiliary air intake device. The venturi device may also be formed from baffles separating an inlet chamber from an outlet chamber of the muffler. The secondary air intake device provides auxiliary or secondary air to the exhaust gas stream exiting the engine upstream of the catalytic converter to improve the efficiency of the catalytic converter. In an exemplary embodiment, the venturi device has a hemispherical cross-sectional shape or a circular cross-sectional shape taken along a plane substantially perpendicular to the direction of flow of the exhaust gas stream.
First Claim
Other Claims data not available
