Heat shield with integral attachment flanges

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7851069
SERIAL NO

11560914

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

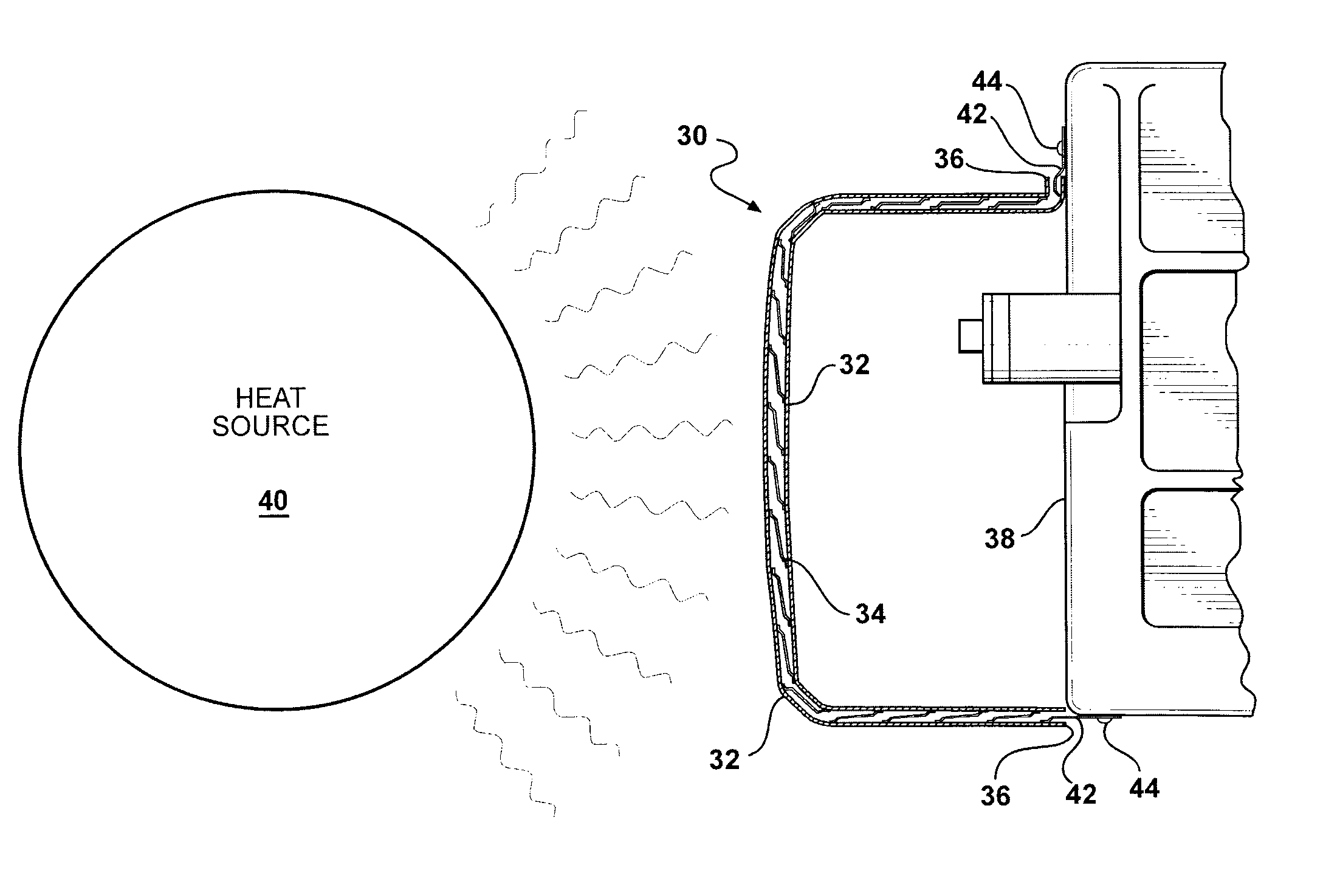

An aluminum layered heat shield assembly (30) includes a pair of spaced metallic facing sheets (32) fabricated from an aluminum composition. In the interstitial space between the facing sheets (32), a perforated steel core (34) is formed in the general shape of a zigzag baffle with segments that adjoin and maintain a generally consistent spacing. The perforated steel core (34) is fabricated with non-perforated flanges (42) which project outwardly from between the aluminum facing sheets (32) to establish extensions for attachment to a supporting structure.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
FEDERAL MOGUL WORLD WIDE INC26555 NORTHWESTERN HIGHWAY SOUTHFIELD MI 48034

International Classification(s)

loading....
  • 2006 Application Filing Year
  • B21D Class
  • 727 Applications Filed
  • 350 Patents Issued To-Date
  • 48.15 % Issued To-Date
