Adjustable terminal basket with light weight, horizontal diffuser grille
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 30, 2010
Issued Date -
N/A
app pub date -
Aug 27, 2007
filing date -
Jun 14, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

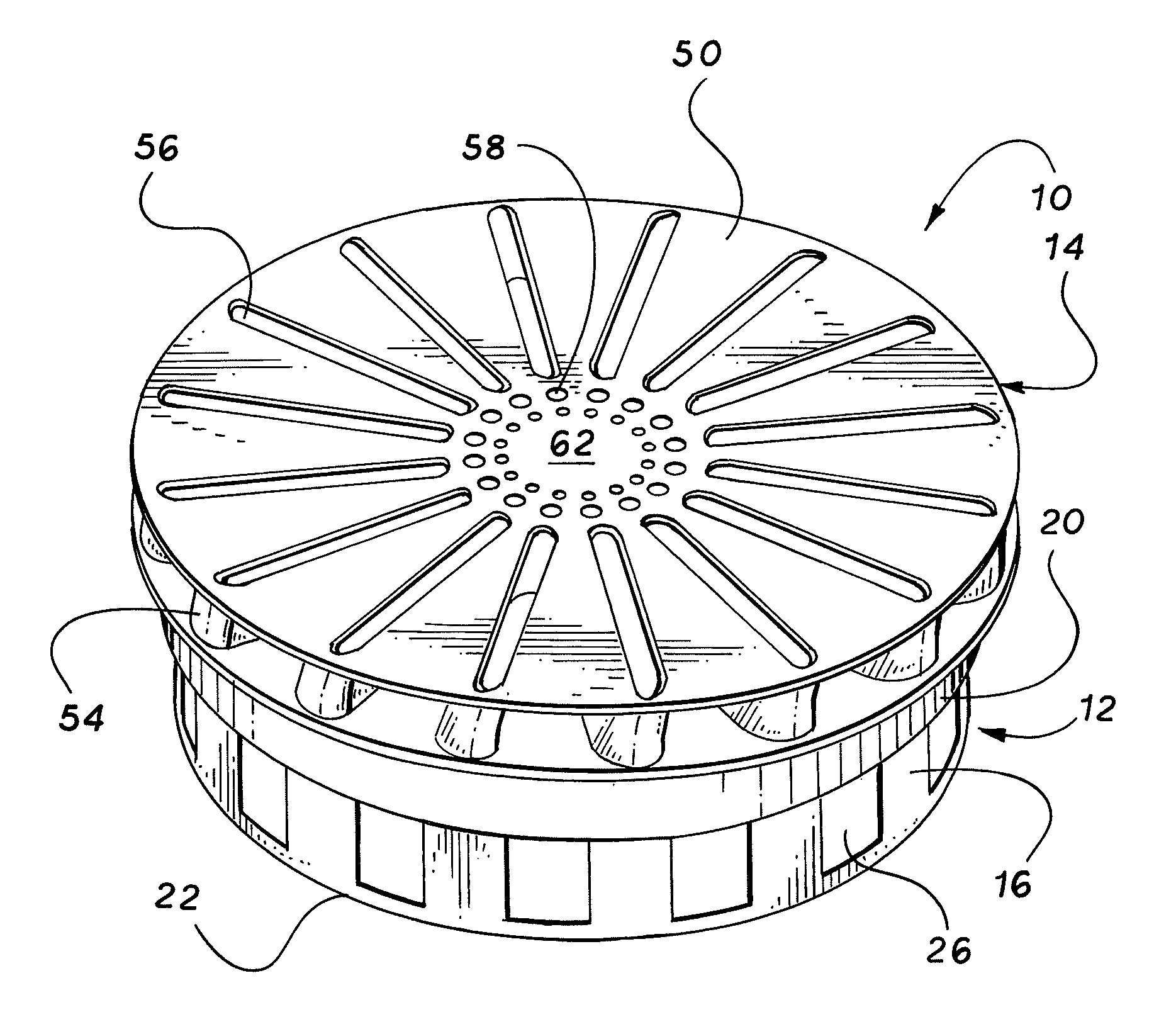

An adjustable terminal basket with lightweight horizontal diffuser grille is mounted in the floor of an occupied space for delivering conditioned air from an under floor air plenum to the occupied space above the floor. The modular floor terminal basket regulates the air passing through the terminal, and the lightweight horizontal diffuser grille diffuses the conditioned air along the floor of the occupied space. The lightweight horizontal diffuser grille is constructed with a top and bottom plate with hollow support pillars between the plates and with reinforcing ribs adjacent the center of the diffuser grille.
First Claim
Other Claims data not available
