Method for manufacturing a composite of carbon nanomaterial and metallic material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 23, 2010
Issued Date -
N/A
app pub date -
May 11, 2007
filing date -
May 12, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

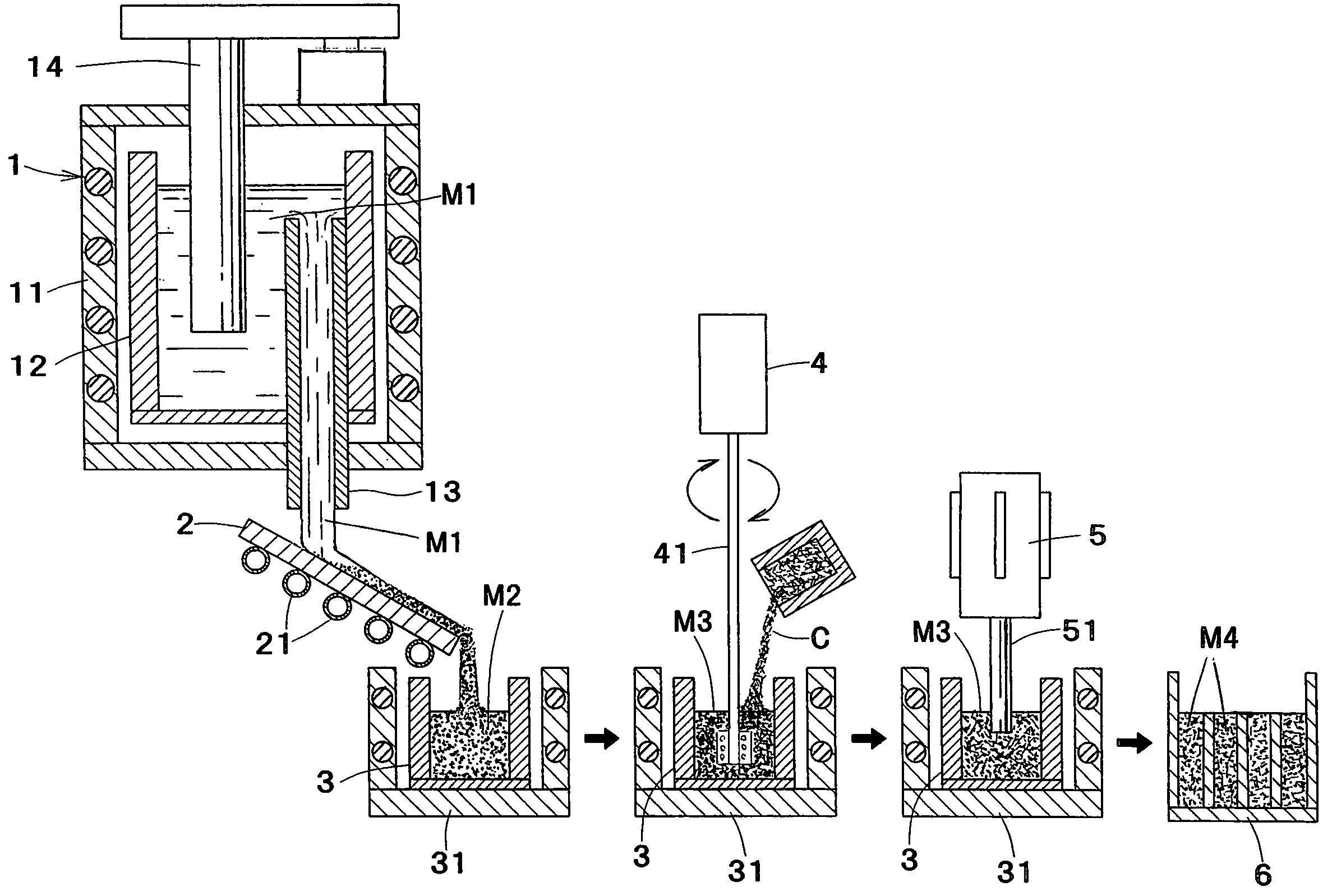

The present invention provides a method for manufacturing a composite of a carbon nanomaterial and a metallic material which has a homogeneous composite metal structure and thixotropic properties by compositing a metallic material of a non-ferrous metal alloy with a carbon nanomaterial by using both stirring and ultrasonic vibration. The method comprises compositing the metallic material of the non-ferrous metal alloy with the carbon nanomaterial by adding the carbon nanomaterial in a state where the metallic material shows thixotropic properties by spheroidization of solid phase in a semi-solid state, and the compositing is performed by a process for stirring and kneading the semi-solid metallic material while keeping the temperature thereof at a solid-liquid coexisting temperature, and a process for dispersing the carbon nanomaterial to liquid phase between solid phases by ultrasonic vibration.
First Claim
Other Claims data not available
