Multi electrode series connected arrangement supercapacitor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 9, 2010
Issued Date -
N/A
app pub date -
Sep 25, 2007
filing date -
Sep 25, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

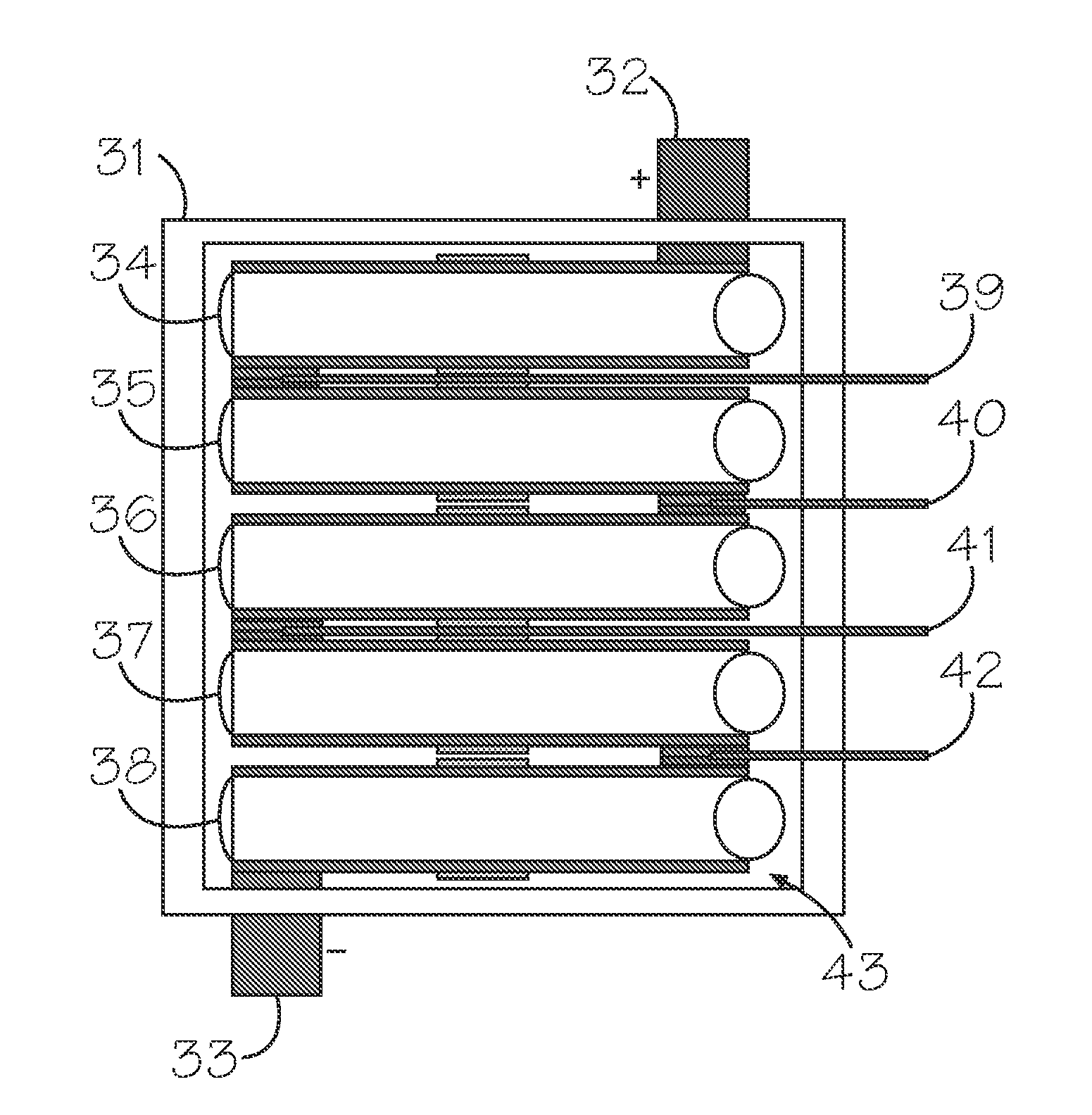

The present invention is an electrochemical double layer capacitor (EDLC) series stack formed into a single electrolyte cell structure. The concatenated multiple electrode assembly stack has electrode assemblies electrically connected in series. The electrode assemblies have a double-sided activated carbon electrode formed on a current collector. Power tabs are connected to the end electrode assemblies. An electrolyte is also provided. A poly bag contains the electrolyte and the electrode assemblies. The electrode assemblies form a double-sided activated-carbon electrode on a current collector. The EDLC stack has a number of segments and mass free zones separating them. The segments are folded so that mass free zones are disposed at the apex of each fold.
First Claim
Other Claims data not available
