Solid-state image pickup element and image pickup device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 9, 2010
Grant Date -
Nov 9, 2006
app pub date -
Apr 19, 2006
filing date -
Apr 21, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

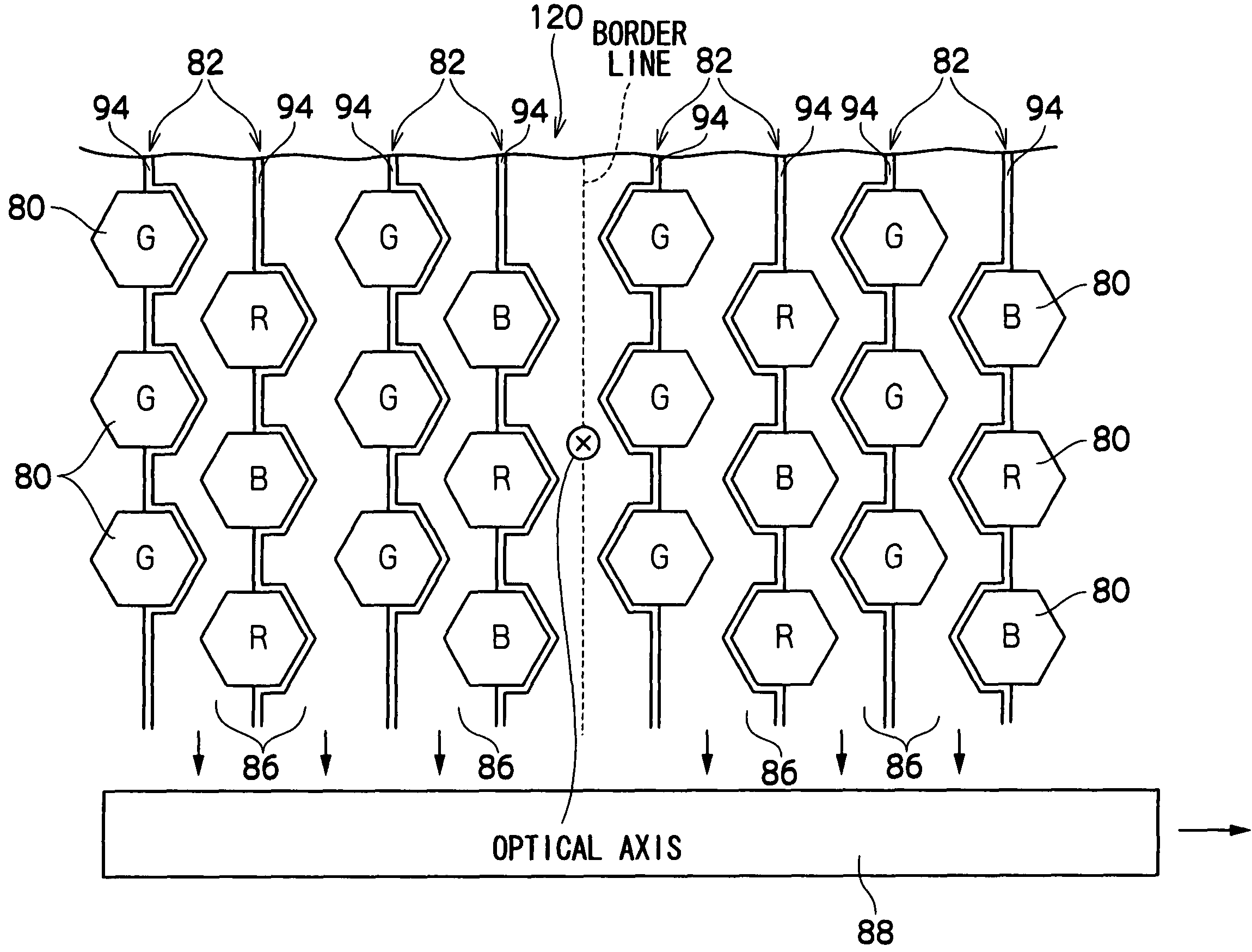

A solid-state image pickup element is disclosed which includes: a semiconductor substrate at which a plurality of element rows, in which a plurality of light-receiving elements are aligned along a vertical direction, are disposed in parallel along a horizontal direction; a plurality of color filters disposed in a predetermined color pattern at a light incident side of the semiconductor substrate; and a plurality of transfer paths transferring charge accumulated in the respective light-receiving elements of corresponding element rows. The sequence of lining-up in the horizontal direction of the element rows and the vertical transfer paths corresponding to the element rows at divisional regions, which are divided at a border line that runs along the vertical direction and includes a position corresponding to an optical axis of light incident from an optical unit on the semiconductor substrate, are opposite to one another. Also disclosed is an image pickup device using the solid-state image pickup element.
First Claim
Other Claims data not available
