Press fitting arrangement with a pre-press leak indicator sealing ring
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 2, 2010
Issued Date -
N/A
app pub date -
Apr 19, 2007
filing date -
Apr 19, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

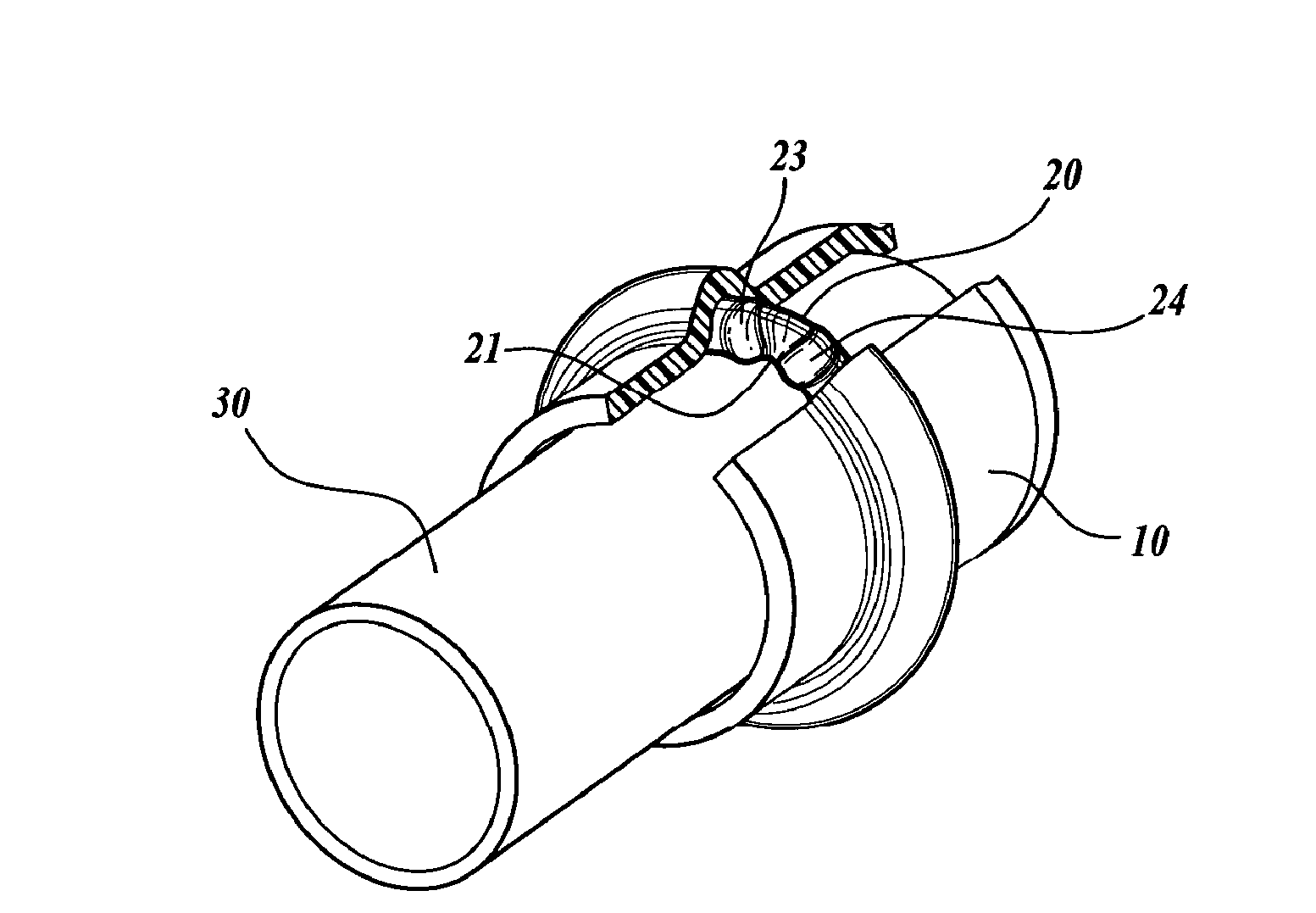

A press fitting arrangement includes a sealing ring to be housed within a bead of a press fitting into which a tube is to be inserted. There is at least one gap between the press fitting together with the sealing ring and the tube which is closed by pressing at least one portion of the press fitting. The sealing ring has at least one first portion along the majority of its circumference. Each first portion of the sealing ring has an outside diameter (SOD1) prior to fitment into the press fitting bead which is larger than the inside bead diameter (BID) and an inside diameter (SID1) prior to the insertion of the tube which is less than the tube outside diameter (TOD). Additionally, the sealing ring has at least one pair of diametrically opposing second portions, each second portion of the sealing ring comprising a recess between the two projections.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 17 Citation Count
- F16L Class
- 67.97 % this patent is cited more than
- 15 Age
