Remotely reconfigurable system for mapping subsurface geological anomalies
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2010
Grant Date -
Feb 21, 2008
app pub date -
Oct 12, 2007
filing date -
Jun 22, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

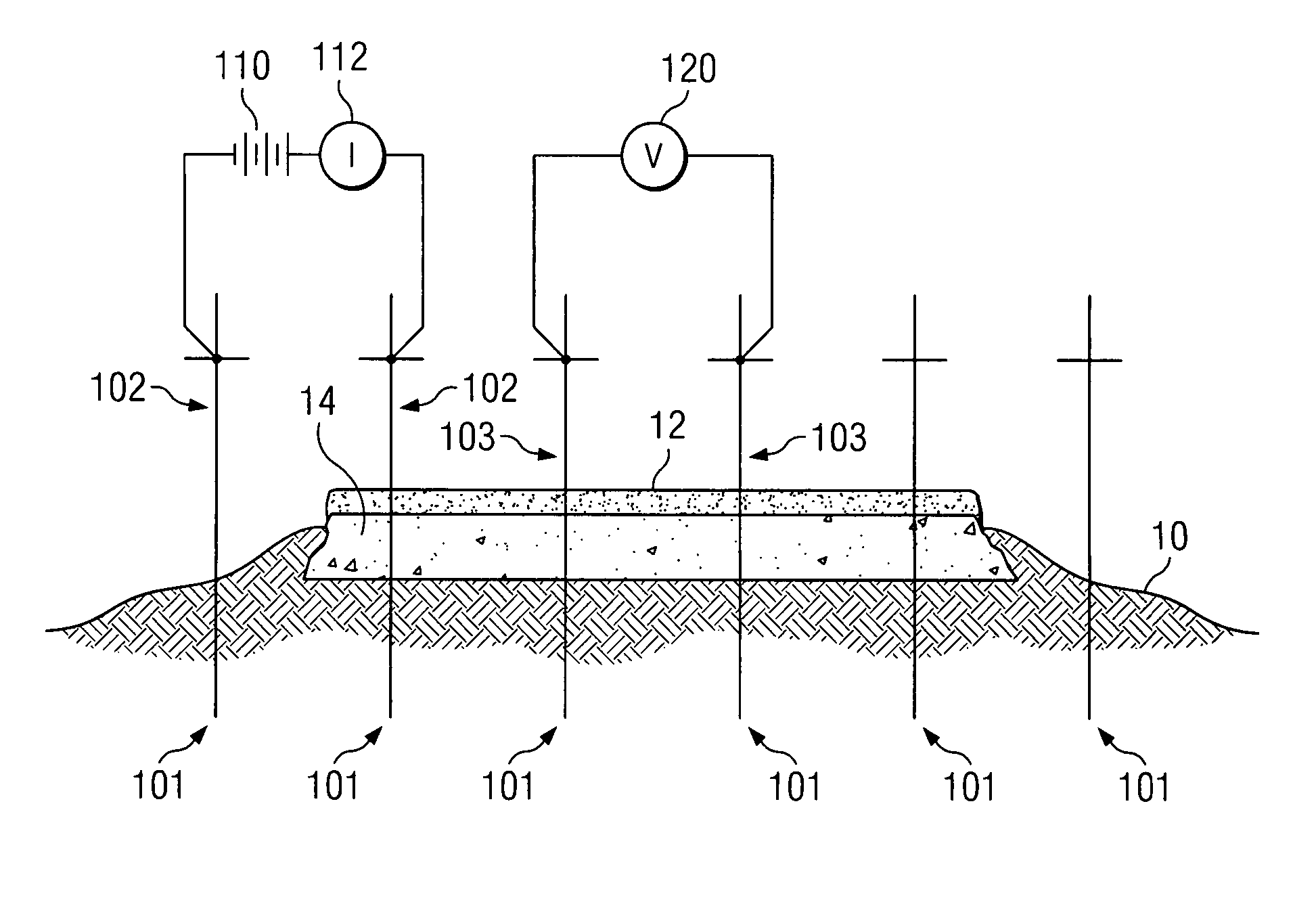

Methods and apparatus are provided for receiving, detecting and transmitting geophysical data from a plurality of electrodes inserted through a structure's pavement foundation in a non-destructive manner and into the soil utilizing a dynamically reconfigurable wireless control unit located on each electrode. Data from the control units is transmitted by a wireless signal to a centralized data processor for analysis. Control data is provided from a central control processor to the control unit by wireless transmission. The control unit, which is positioned, includes a multi-channel radio frequency transmitter/receiver and a processor to actuate relays and record data returns from the measured substrate soil for transmission to the central data processor. The control unit incorporates a changeable code or address to unambiguously identify itself, and its spatial relationship to other electrodes, to the central data processor and the central control processor. The control units are equipped with a GPS positioning device to allow for automatic transmission of electrode location and for electrode placement without a manual survey being required.
First Claim
Other Claims data not available
Family
