Synchronized streaming layer with presentation layer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2010
Grant Date -
Jan 12, 2006
app pub date -
Mar 25, 2005
filing date -
Jul 6, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

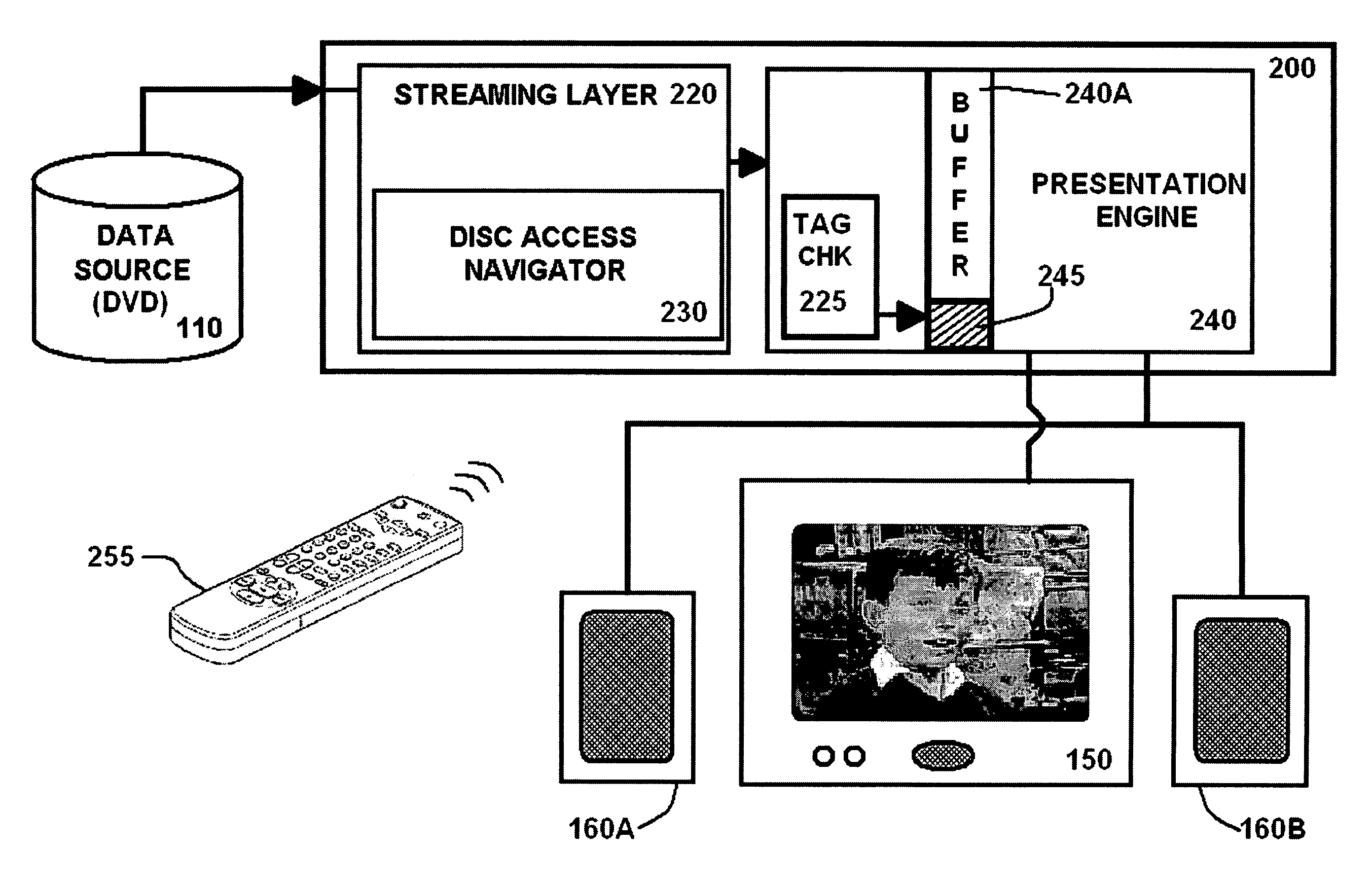

A “tag” is attached to streaming video data as it is streamed from the streaming layer to the presentation engine. Each frame containing a button or other user feature also has a “tag” associated with it. When the presentation engine processes a packet of data, it updates a state variable with the tag associated with the packet of data. The streaming layer can query this state variable at any point to get the tag associated with the currently rendered unit. When the user clicks on a button or feature, the streaming layer, rather than utilizing an associated operation in the data being streamed, instead uses the tag associated with the frame being displayed and then takes the appropriate action. The invention may also be used to provide frame-accurate editing features to allow streaming video data to be indexed or reversed to a frame-accurate level.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04N Class
- 2.83 % this patent is cited more than
- 15 Age
