Compact multiple transformers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2010
Issued Date -
N/A
app pub date -
Jan 8, 2008
filing date -
Jan 8, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

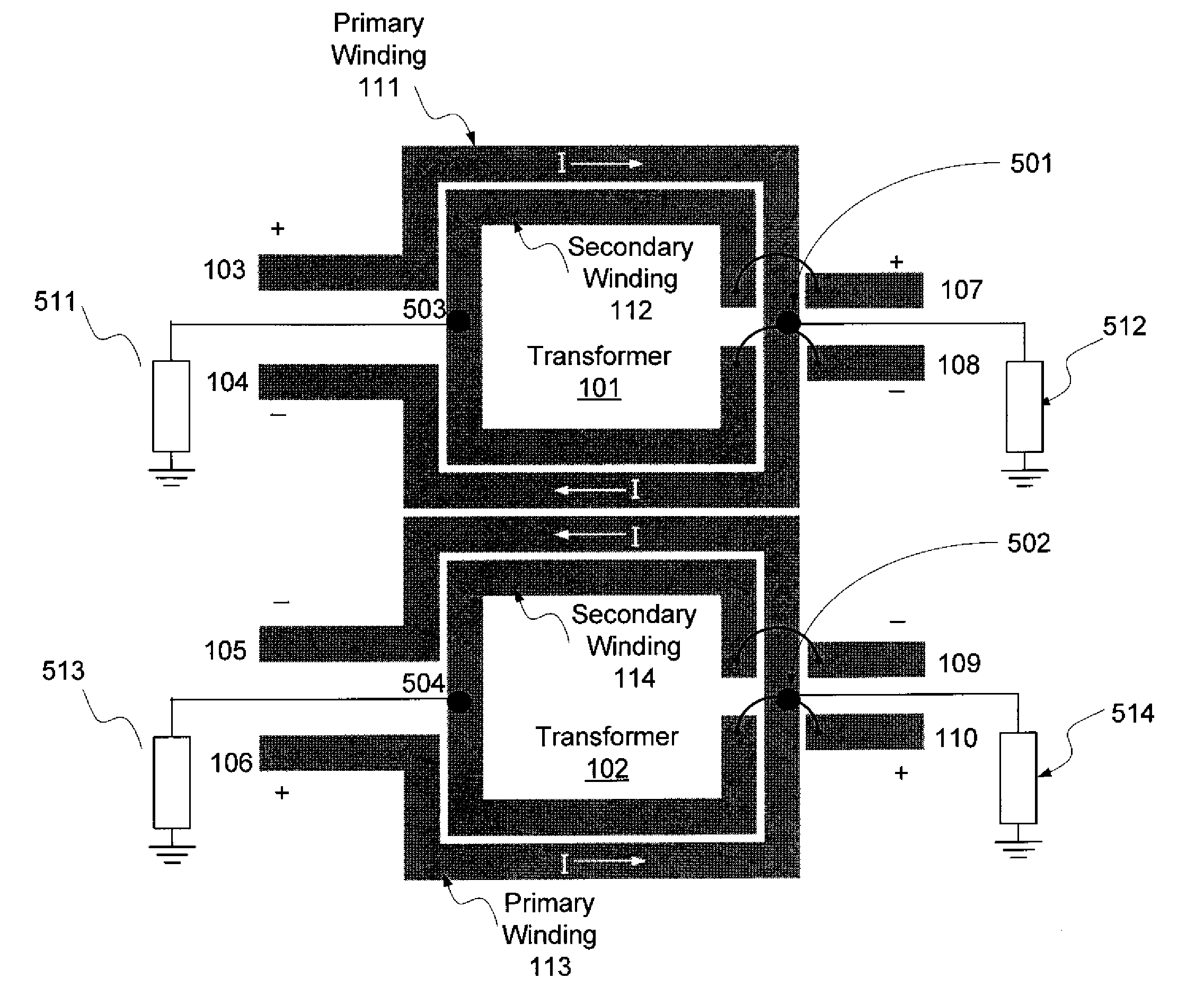

Example embodiments of the invention may provide systems and methods for multiple transformers. The systems and methods may include a first transformer that may include a first primary winding and a first secondary winding, where the first primary winding may be inductively coupled to the first secondary winding, where the first transformer may be associated with a first rotational current flow direction in the first primary winding. The systems and methods may further include a second transformer that may include a second primary winding and a second secondary winding, where the second primary winding may be inductively coupled to the second secondary winding, where the second transformer may be associated with a second rotational current flow direction opposite the first rotational current flow direction in the second primary winding, where a first section of the first primary winding may be positioned adjacent to a second section of the second primary winding, and where the adjacent first and second sections may include a substantially same first linear current flow direction.
