Knitting machine without holding-down sinkers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2010
Grant Date -
Jun 17, 2010
app pub date -
Dec 2, 2009
filing date -
Dec 12, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

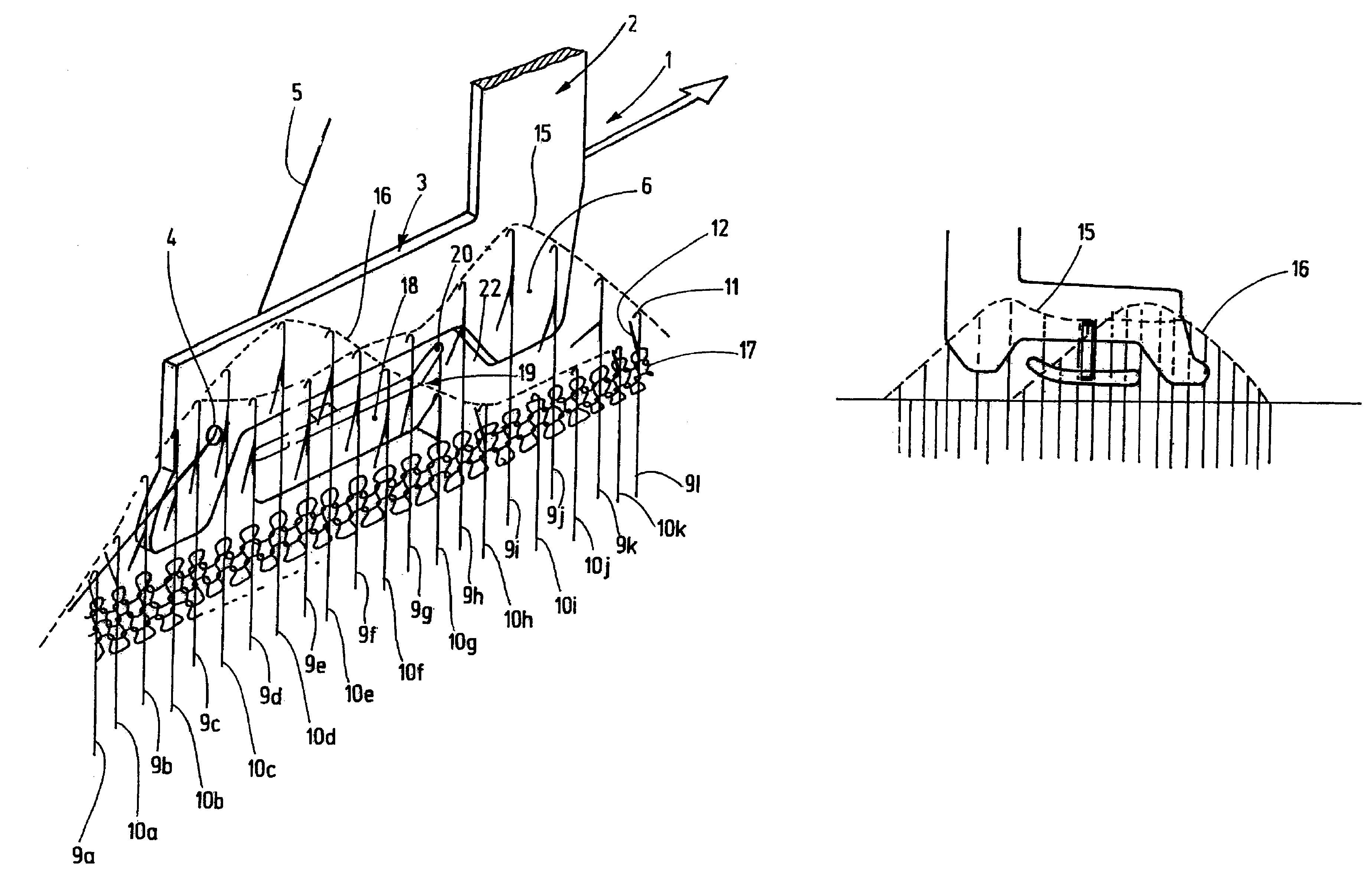

A knitting machine in accordance with the invention includes a thread guide that is associated with a runner. The runner is disposed to hold open the latches of driven out needles of a first group while the needles of a second group are being driven out. Due to the time-staggered driving-out of the latch-type needles and of a first group and a second group, and due to the alternating arrangement of the needles of the first group and the second group, a rising of the knit fabric while the needles are being driven out is prevented without the assistance of holding-down/knock-over sinkers. Inasmuch as a runner that is separate from the thread guide is used for holding open the latches, the position of said runner can be optimally adjusted independent of the position of the thread guide.
First Claim
Other Claims data not available
