System and method for forming debit card using improved print cylinder mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 14, 2010
Issued Date -
N/A
app pub date -
May 15, 2008
filing date -
May 15, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

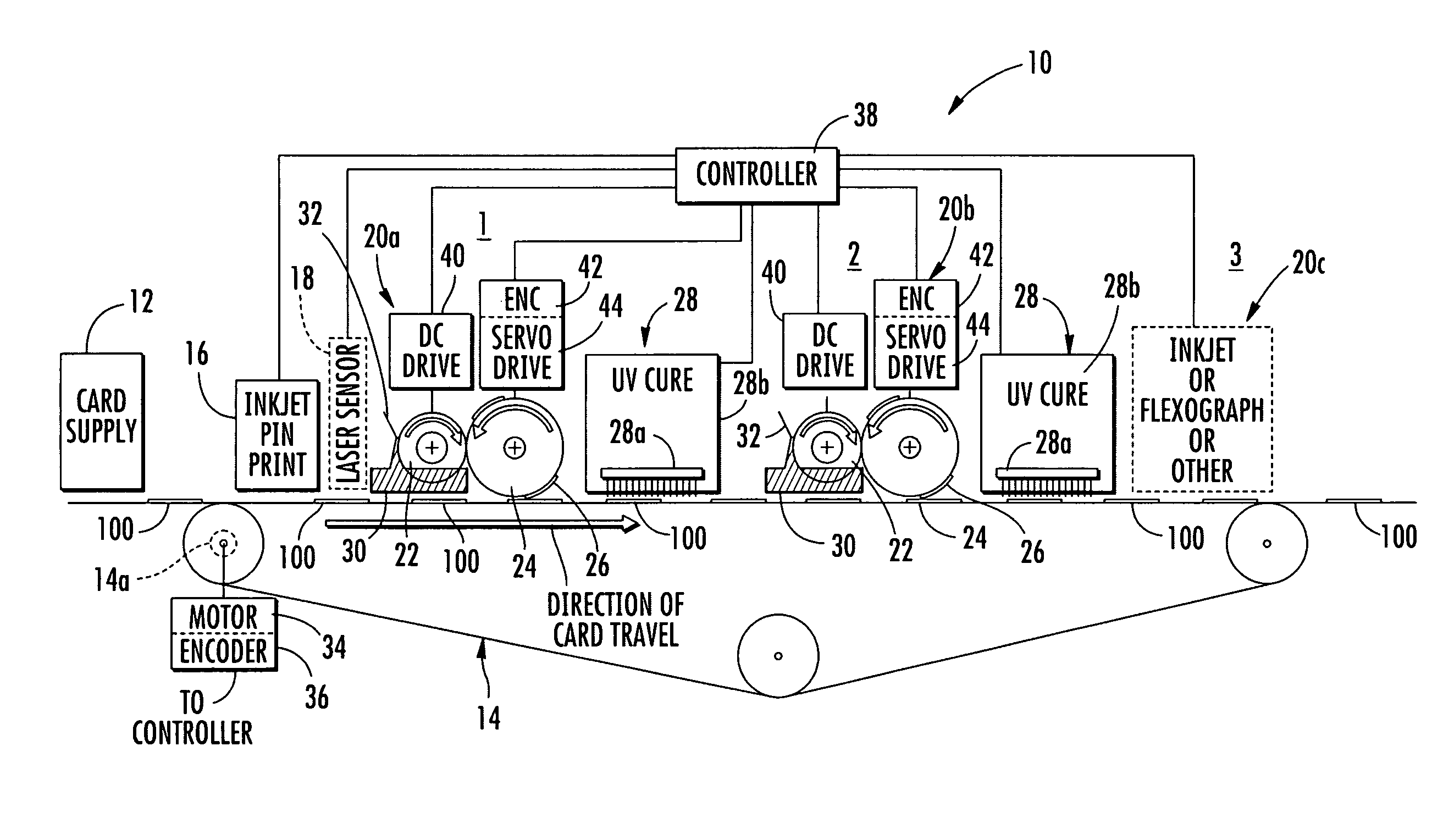

A flexographic printing station prints at least one print stripe of opaque scratch-off coating onto the surface of the card over a PIN as a card member is advanced into a printing station. A print cylinder has a circumferential printing surface that engages an Anilox metering roll and receives the scratch-off coating therefrom and transfers the scratch-off coating from the printing surface onto the surface of the debit card. A controller controls movement of the print cylinder via a mounting mechanism into and out of engagement with the surface of the debit card at a predetermined location and for a predetermined length of time to apply at least one print stripe of predetermined length onto the surface of the debit card based on the length of time the printing surface engages the surface of the debit card.
First Claim
Other Claims data not available
