Oscillating grinding machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 2010
Grant Date -
May 14, 2009
app pub date -
Oct 31, 2008
filing date -
Feb 23, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

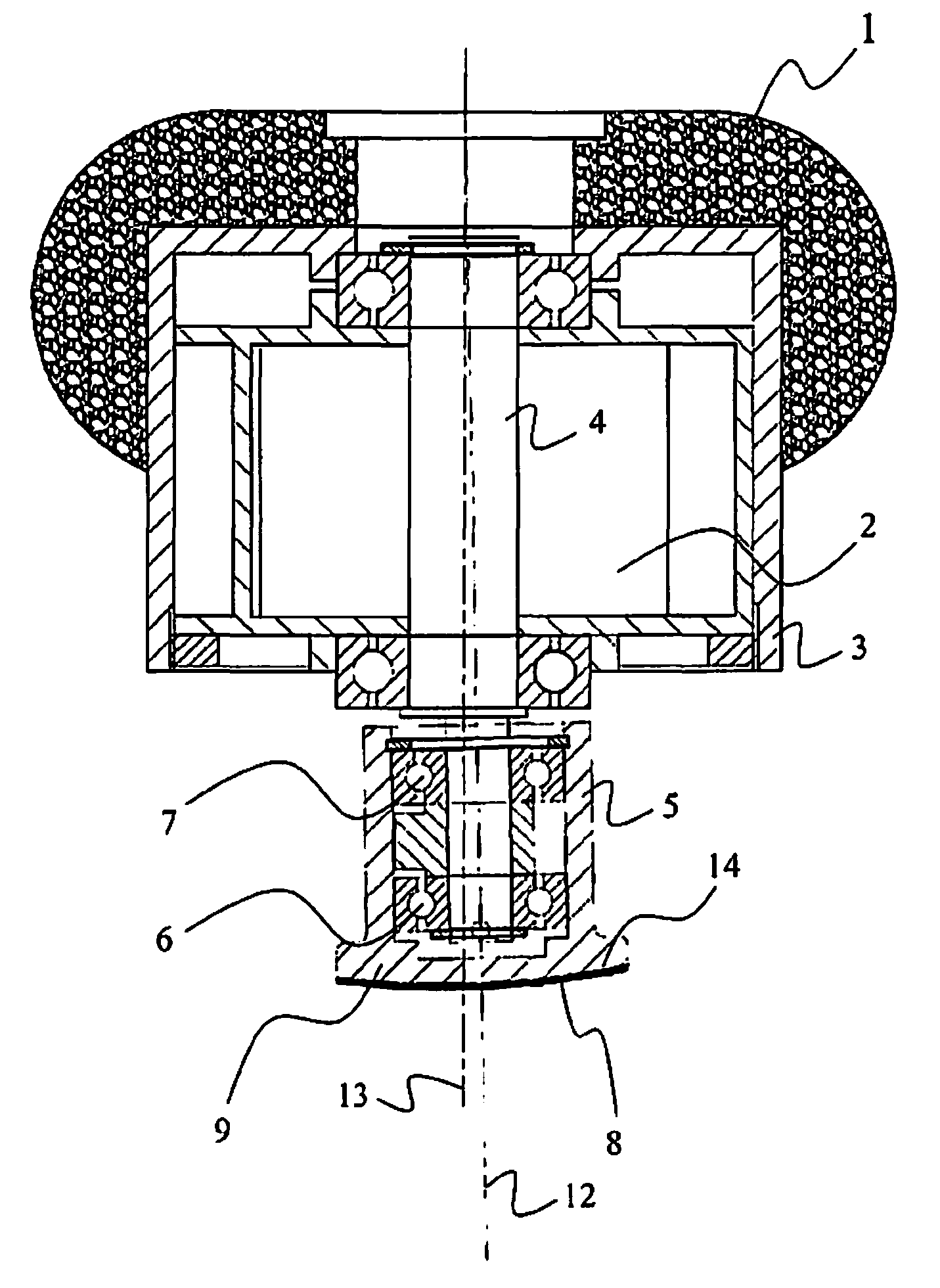

The present invention relates particularly to an oscillating grinding machine. The grinding machine comprises a driving motor (3) surrounded by a body (3), and a drive shaft (4) cooperating with the driving motor. The drive shaft comprises a grinding head (5) that constitutes a support for a grinding product (8). The drive shaft (4) is arranged in two pieces and comprises a main shaft (11) and an eccentric shaft (10) arranged rigidly thereto. The eccentric shaft comprises a center line (12) that assumes an angle (.alpha.) against a corresponding center line (13) of the main shaft, and thus the grinding head (5) will assume an eccentric placement in relation to the main shaft (11). Thus, the grinding head is arranged to oscillate in a substantially spherical plane provided by the rotation of the main shaft and the eccentricity and inclination of the eccentric shaft in relation to the main shaft.
