Control barrier with rotatable legs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 2010
Grant Date -
Nov 12, 2009
app pub date -
Jun 1, 2009
filing date -
May 8, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

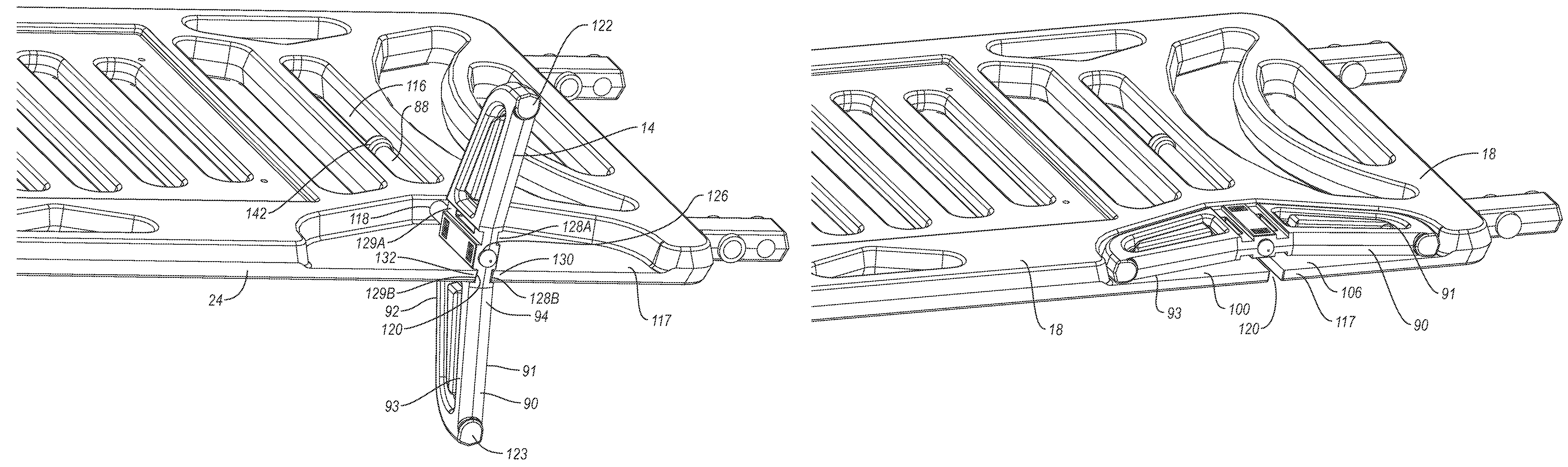

A control barrier includes a barrier wall having a front face and an opposing back face each extending between a top end and an opposing bottom end, a first recess being formed on the front face at the bottom end of the barrier wall. A first slot extends through the barrier wall from the first recess to the back face. A first foot coupled with the barrier wall and being movable between a first position wherein the first foot is at least partially disposed within the recess of the barrier wall and a second position wherein the first foot is rotated a least 45° relative to the first position and is removably positioned within the slot extending through the barrier wall.
