Unit for X-ray CT imaging and X-ray imaging apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 10, 2010
Grant Date -
Feb 26, 2009
app pub date -
Apr 11, 2006
filing date -
Apr 11, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

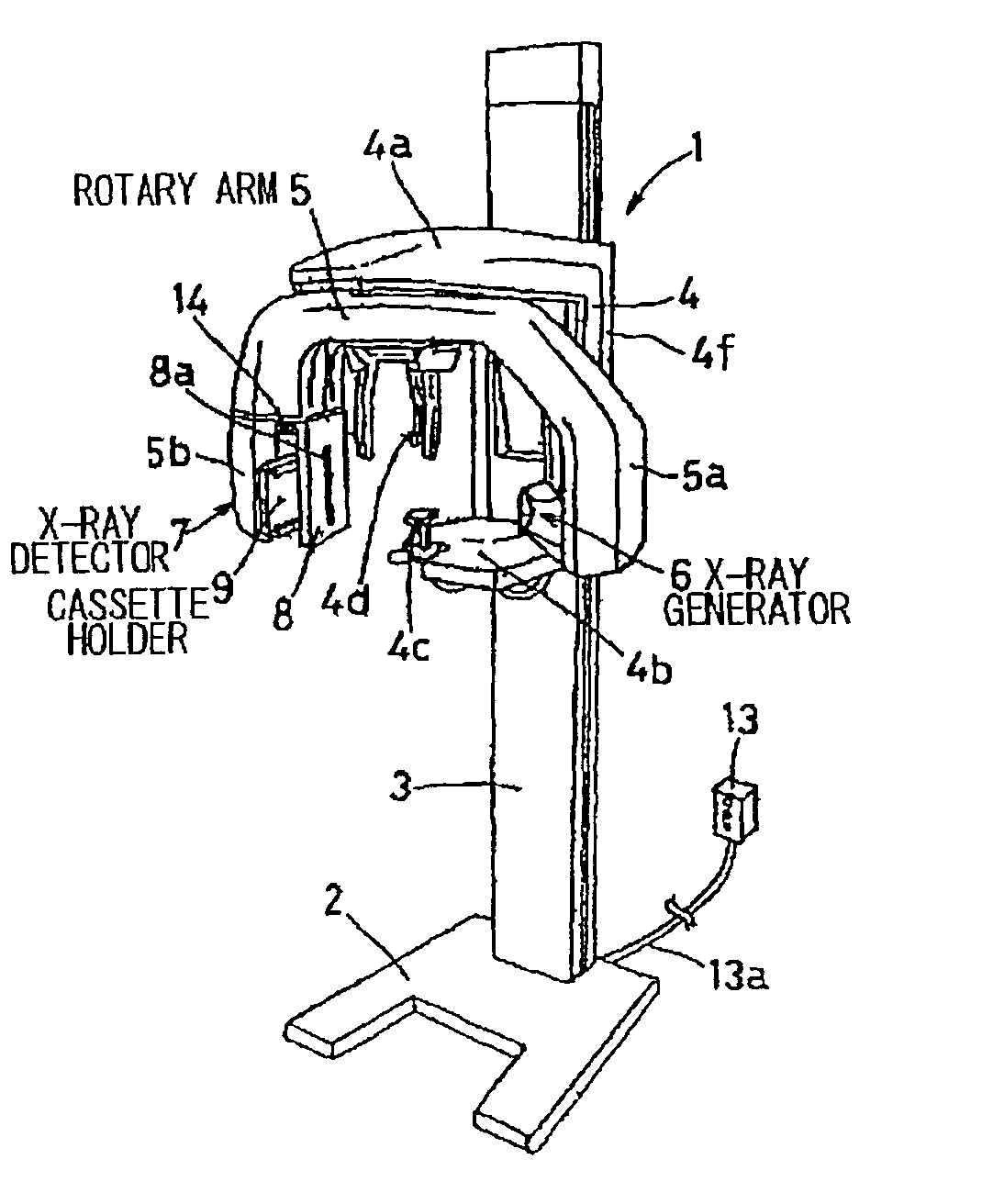

A unit for X-ray CT imaging to be set in a panorama X-ray imaging apparatus having a cassette holder has a digital sensor cassette for CT imaging to be set in the cassette holder, includes a two-dimensional X-ray detector for acquiring X-ray projection data for CT imaging of an object, and a controller for controlling a timing of X-ray CT imaging, a radiation field of X-ray beam generated by the X-ray detector, and the rotary device. Alternatively, the unit has the digital sensor cassette for X-ray CT imaging, an image reconstructor which calculates to convert the X-ray projection data obtained with the two-dimensional X-ray detector to a distribution of X-ray absorption coefficients of the object and creates tomographic image data of sections of the object, and an image processor which sends and receives signals for X-ray CT imaging between the X-ray detector and the image reconstructor when the digital sensor cassette for CT imaging is set in the cassette holder.
First Claim
Other Claims data not available
