Vibration-damping structure for audio apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 10, 2010
Grant Date -
Jun 26, 2008
app pub date -
Jul 11, 2007
filing date -
Dec 25, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

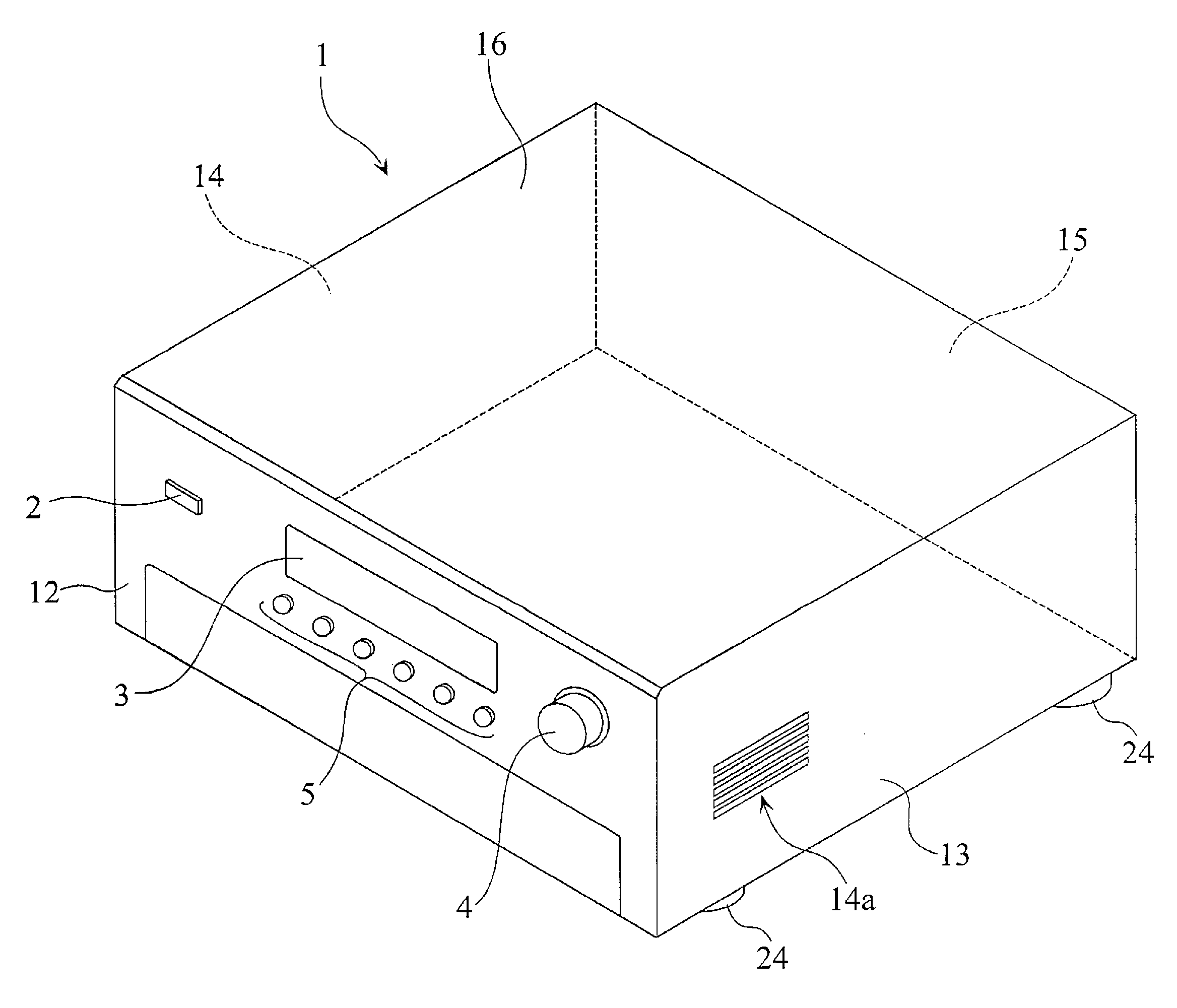

The present invention provides a vibration-damping structure for an audio apparatus, accommodating a main transformer, which becomes a vibration source when driven, the vibration-damping structure including: a main chassis to which a signal processing board for processing an audio signal is attached, the first chassis defining a portion of an outer shape of an assembly of the vibration-damping structure; a sub-chassis fastened to an inner surface of the main chassis so as to be partially in contact with the inner surface of the main chassis via a plurality of fastening members; and a component accommodating chassis fastened to an inner surface of the sub-chassis so as to be partially in contact with the inner surface of the sub-chassis via other fastening members, wherein the main transformer is fixed to the component accommodating chassis.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 15 Age
