Bleed valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 10, 2010
Grant Date -
Apr 30, 2009
app pub date -
Oct 7, 2004
filing date -
Dec 23, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

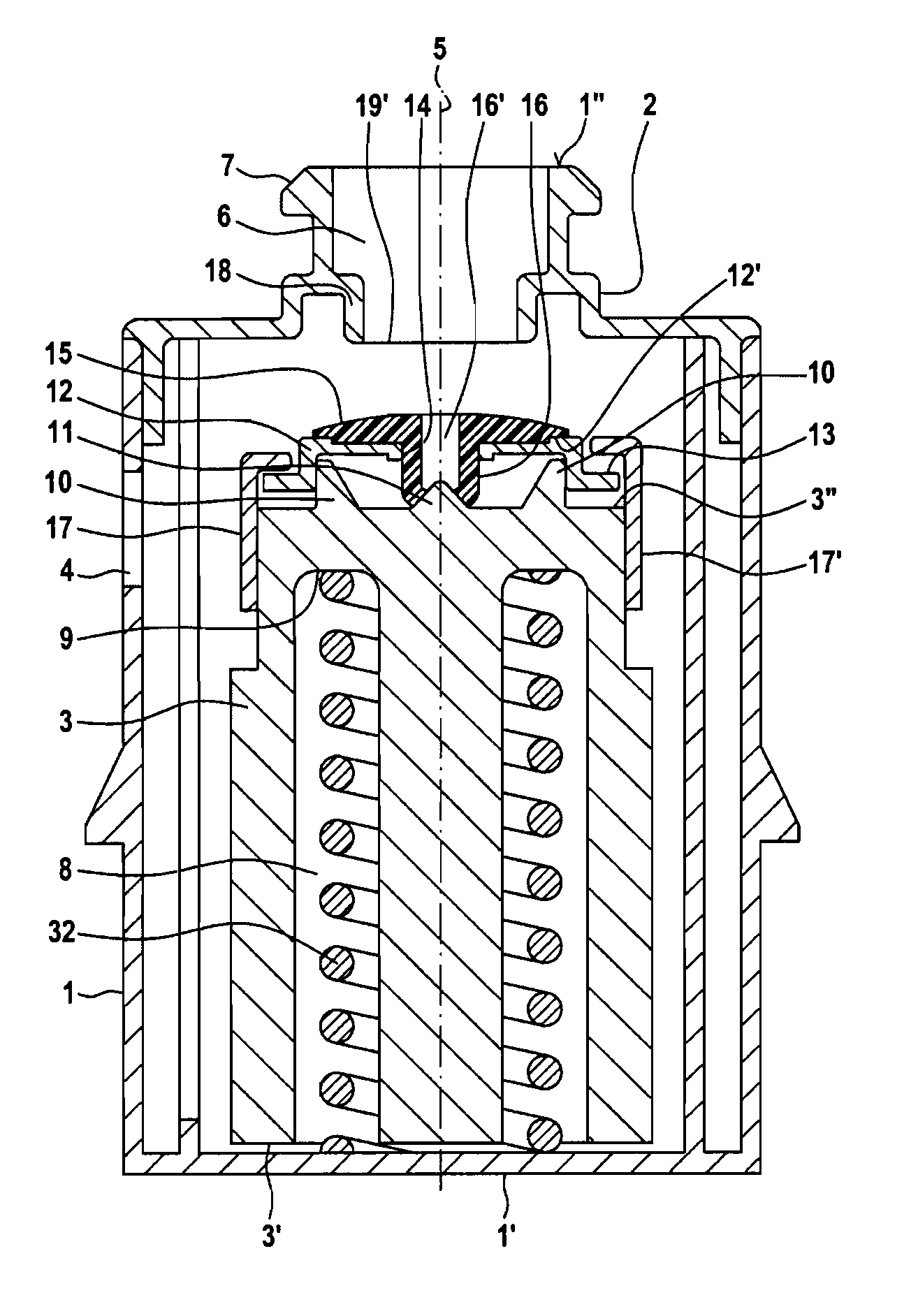

A bleed valve which is intended for the fuel tank of a vehicle has a housing, a floating body disposed in such a manner as to be able to move in the longitudinal direction. A rim of an outlet orifice forms a valve seat for a sealing element which is supported by a support disc, wherein the support disc is articulated in a cardanic manner on the floating body. The sealing element is disposed in such a manner as to be able to move according to the movement of the floating body between a position which closes the outlet orifice and a position which opens same, wherein as a result of the said articulation of the support disc on the floating body positional changes, e.g. inclined positions, which are caused by the drive operation of the vehicle do not impair the sealing function.
First Claim
Other Claims data not available
