United States of America Patent
Stats
-
Jul 20, 2010
Grant Date -
Aug 9, 2007
app pub date -
Mar 16, 2005
filing date -
Apr 28, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

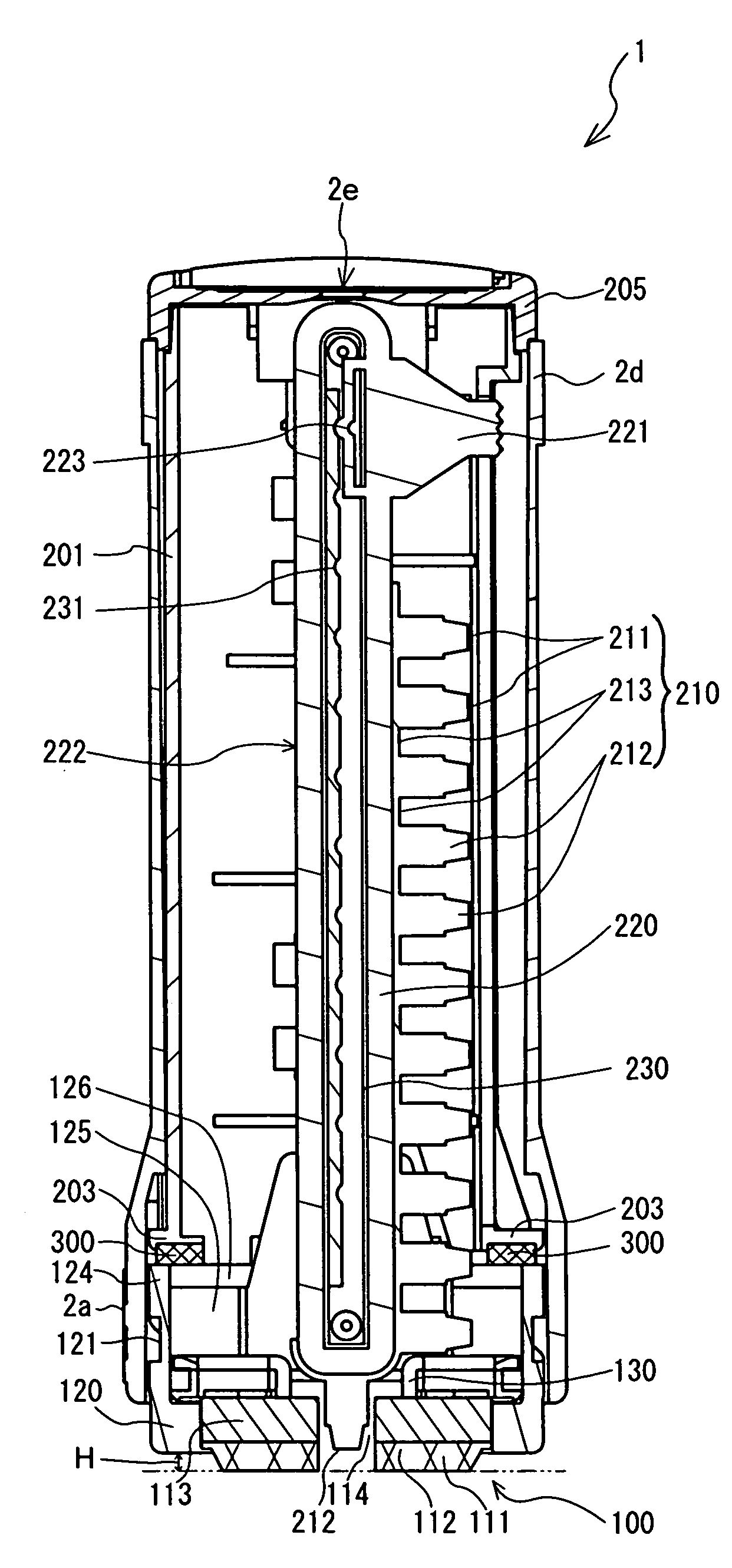

In a fixed print portion 100, a cylindrical holding member 125 holds a fixed print member 112 and an ink storage body 113 from the side of the ink storage body 113 and a frame member 120 having an L-shaped section is set from the side of the fixed print member 112 so that it is fitted to the outer periphery of the holding member 125, thereby a print face 111 is held and exposed outside. A portion of the fixed print member 112 near the outer periphery is nipped between the frame member 120 and the holding member 125 in a compressed state because the frame member 120 is fitted to the holding member 125 and an exposed portion of the fixed print member 112 has a difference of height H between the end face of the frame member 120 and the print face 111. A damper member 300 is disposed between the frame member 120 and a flange 203 provided on a supporting case 201 of the movable print portion 200.
First Claim
Other Claims data not available
