Long-handled tool with plastic molded-over handle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 13, 2010
Grant Date -
Sep 1, 2005
app pub date -
Feb 25, 2005
filing date -
Feb 27, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

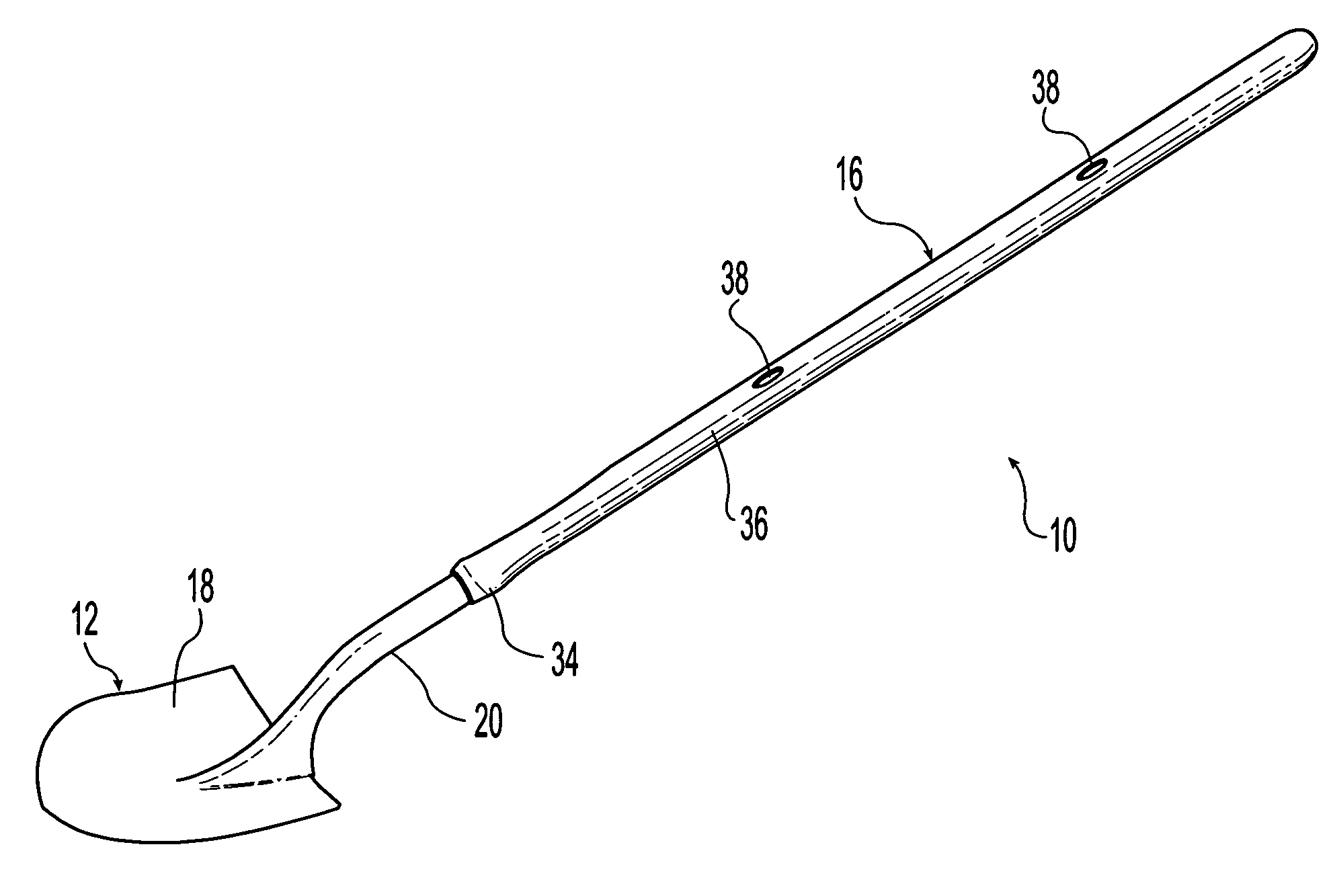

A long-handled shovel includes a head having a blade and a socket and an elongate handle member partially extending into the socket of the head. The handle member is a tube. A rod partially extends into the handle member and partially extends into the socket to provide resilient flexing between the head and the handle member when prying forces are applied thereto. A collar encircles the socket to limit outward expansion of the socket. A continuous outer layer of plastic material is molded over the entire length of the handle member and at least partially molded over the socket and the collar. The outer layer provides added strength by extending over the joint between the handle member and the socket.
