Push broom bracket assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 8, 2010
Grant Date -
Jan 4, 2007
app pub date -
Dec 14, 2005
filing date -
Dec 14, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

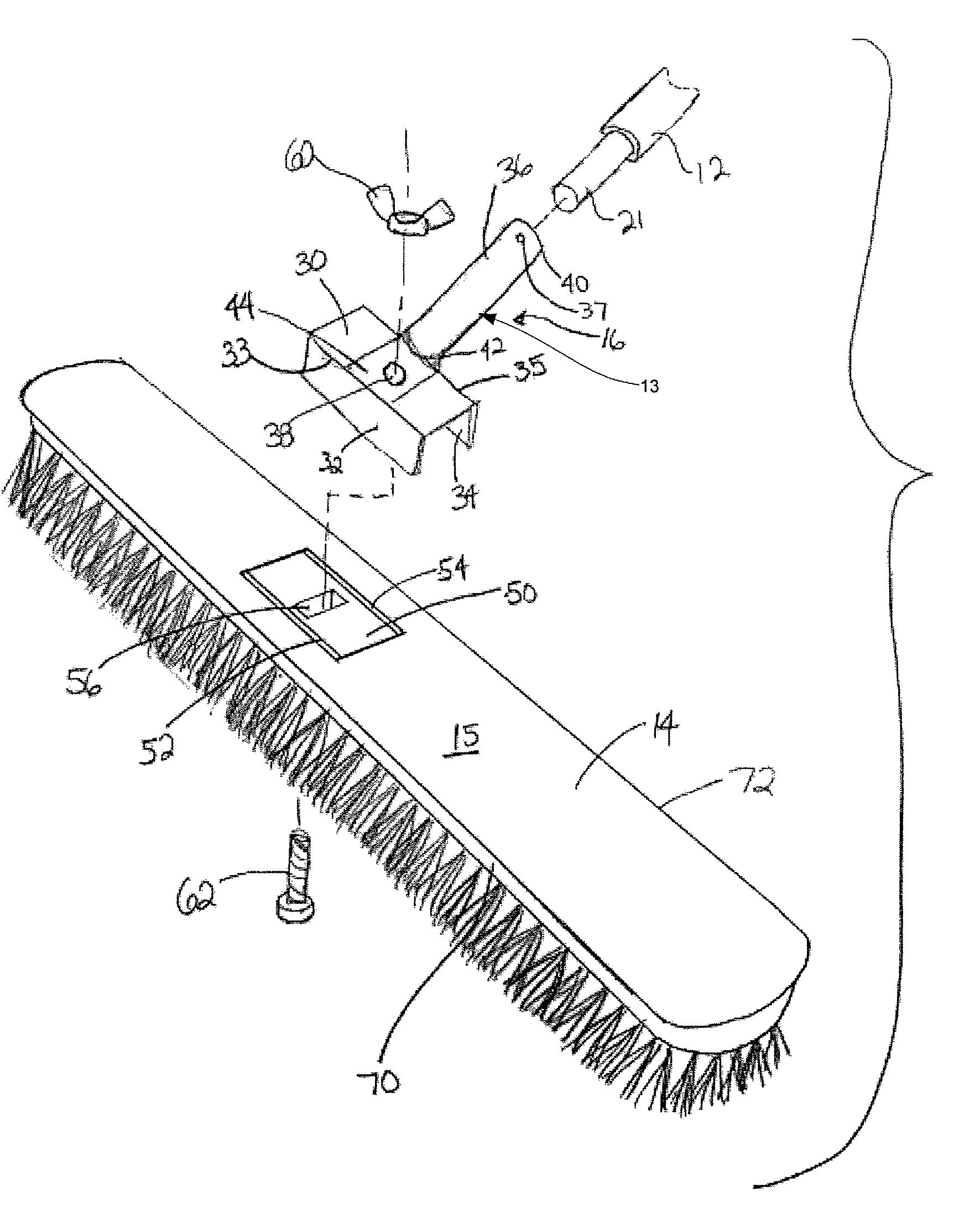

A bracket assembly for use with cleaning implements such as push brooms has a handle connector for mounting a handle and a plate with a pair of depending flanges that are inserted into the broom head. The bracket assembly may be removably secured to the broom head with a fastener such as bolt and nut to provide an attachment mechanism having sufficient strength to withstand repeated sweeping motion. The removable bracket allows the arrangement of the handle and broom head to be reversed so that both faces of the broom head and bristles can be used interchangeably for sweeping. The removable bracket can be used with cleaning implements having heads of various dimensions and shapes.
First Claim
Other Claims data not available
