Ice making machine, evaporator assembly for an ice making machine, and method of manufacturing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 27, 2010
Issued Date -
N/A
app pub date -
Jun 22, 2006
filing date -
Jun 22, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

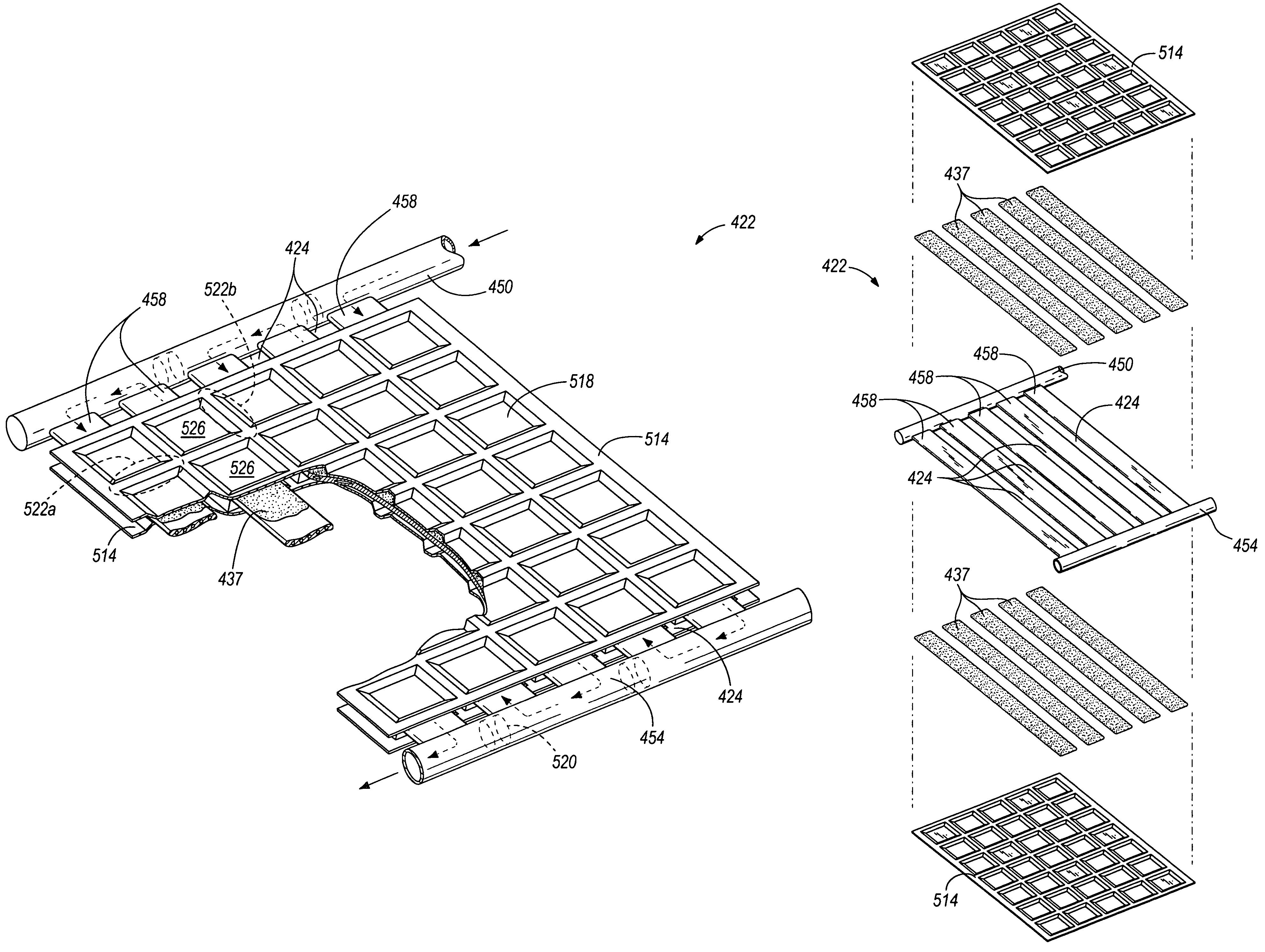

An ice-making machine having an ice-forming surface upon which ice is formed, a refrigeration system including a microchannel evaporator that cools the ice-forming surface, and a water-supply system. The microchannel evaporator includes a microchannel tube that facilitates a distributed cooling effect in a contact area between the microchannel tube and the ice-forming surface. In some embodiments, the microchannel tube includes a series of recessed portions that define insulated regions and divide the tube into non-insulated regions. The insulated and non-insulated regions can be dimensioned to form individual ice cubes on the ice-forming surface. In other embodiments, spaces between microchannel tubes and/or spaces between the ice-forming surface and microchannel tubes can form insulated regions at least partially defining the size and shape of ice produced by the ice-making machine. The ice-forming surface can be attached to the microchannel tubes by adhesive and/or cohesive bonding material (such as glue, epoxy, or other adhesive).
First Claim
Other Claims data not available
