Adjustable stroke mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 13, 2010
Grant Date -
Jul 6, 2006
app pub date -
Jan 31, 2006
filing date -
Aug 16, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

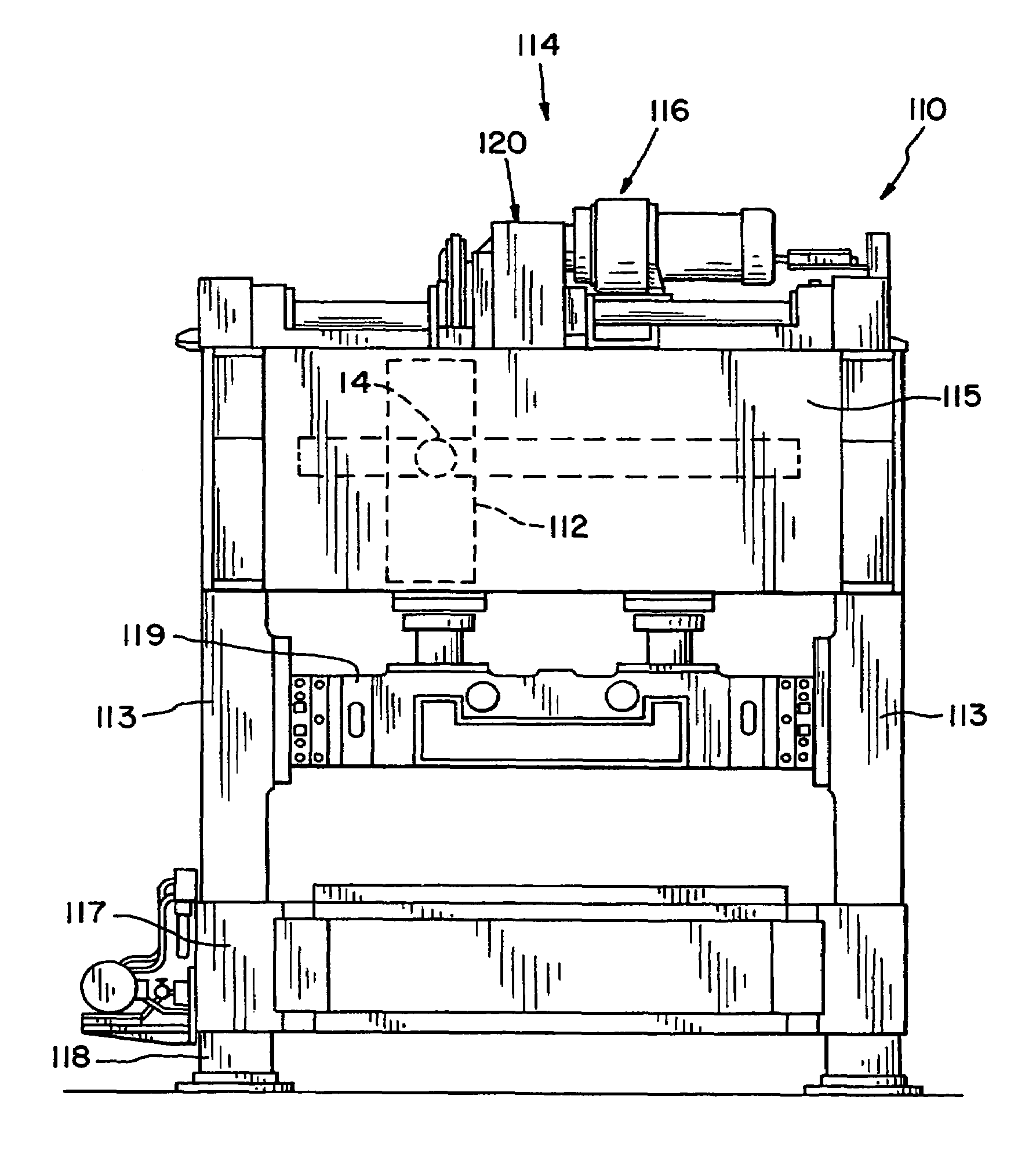

An adjustment stroke connection for a mechanical press includes an eccentric bushing disposed within a press connection member and an eccentric crankshaft member disposed within the eccentric bushing. A rotatable crankshaft is connected to the eccentric member. A mechanism is provided for connecting the eccentric bushing with the press connection member in a manner that prevents rotation therebetween and concurrently permits rotation of the eccentric member relative to the eccentric bushing. When the mechanism is activated, driving rotation of the crankshaft produces a press stroke adjustment. A torque actuator delivers equal driving torque to plural eccentric crankshaft members to enable minimization of relative bushing angle slip. Suitable control of the bushing angle and slide position crank angle during bushing expansion and contraction also minimizes relative bushing angle slip.
First Claim
Other Claims data not available
