Method and apparatus for determining an EMG signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 30, 2010
Grant Date -
Nov 29, 2007
app pub date -
Nov 18, 2004
filing date -
Nov 19, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

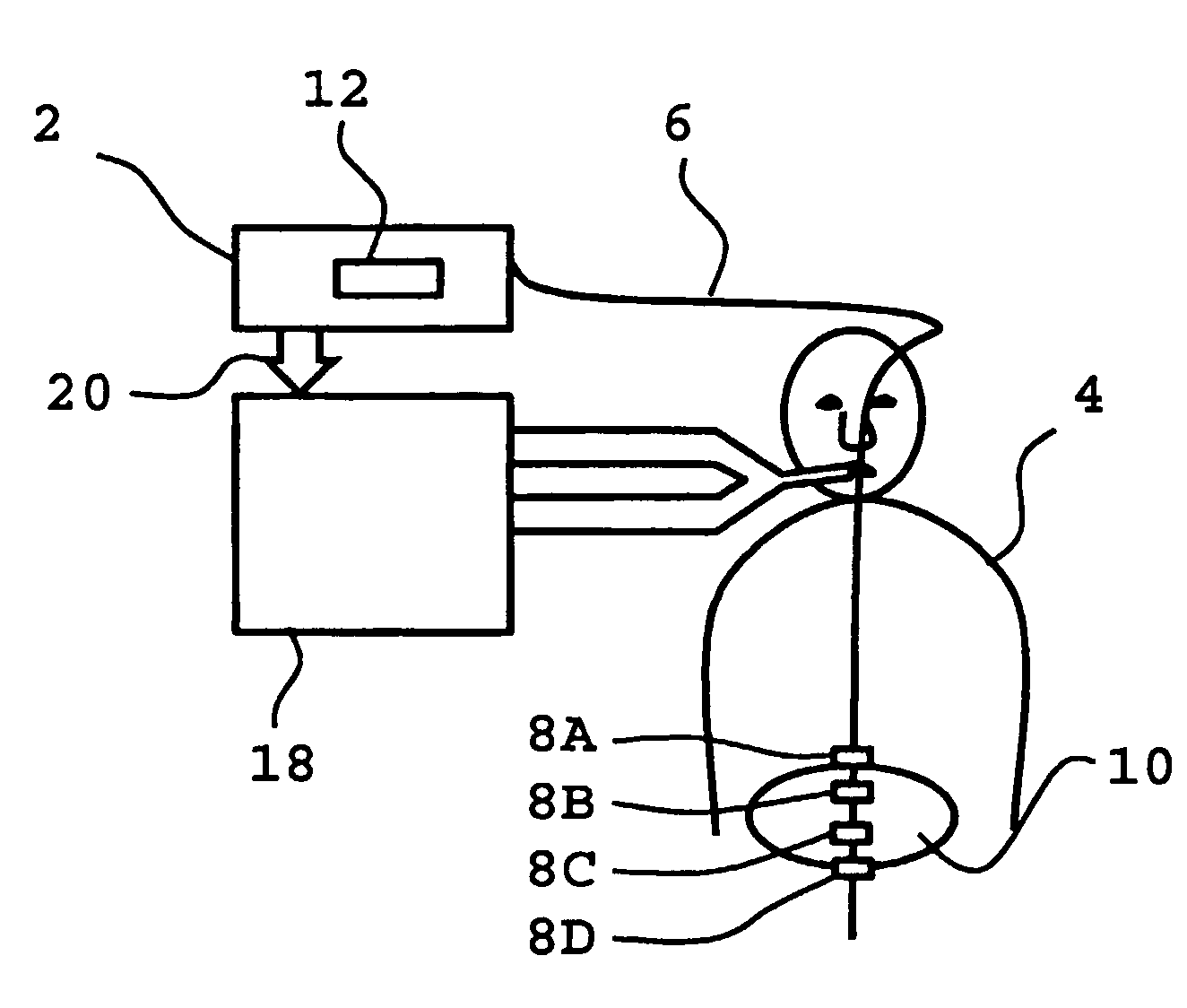

A method and apparatus for filtering an electromyogram (EMG) signal from a raw signal which includes a contribution from an electrocardiogram (EKG) signal is disclosed. The method includes the steps of estimating an attribute (such as a Fourier transform) of both the EMG contribution to the raw signal and the EKG contribution to the raw signal and, dependent on both frequency spectrums, determining an EMG window in a frequency range and obtaining the EMG signal by passing it through a filter defined by the frequency range. The method is particularly used when monitoring a multi-channel electrical recording from a plurality of electrodes attached to a patient's diaphragm.
First Claim
Other Claims data not available
Family
International Classification(s)
- F16K:VALVES; TAPS; COCKS; ACTUATING-FLOATS; DEVICES FOR....
- H03K:PULSE TECHNIQUE
- H04B:TRANSMISSION
- A61B:DIAGNOSIS; SURGERY; IDENTIFICATION
- H03D:DEMODULATION OR TRANSFERENCE OF MODULATION FROM ON....
- H03F:AMPLIFIERS
- G01R:MEASURING ELECTRIC VARIABLES; MEASURING MAGNETIC V....
- A61M:DEVICES FOR INTRODUCING MEDIA INTO, OR ONTO, THE B....
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- F16K Class
- 4.46 % this patent is cited more than
- 15 Age
