Actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 30, 2010
Grant Date -
Feb 28, 2008
app pub date -
Mar 29, 2005
filing date -
Jun 4, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

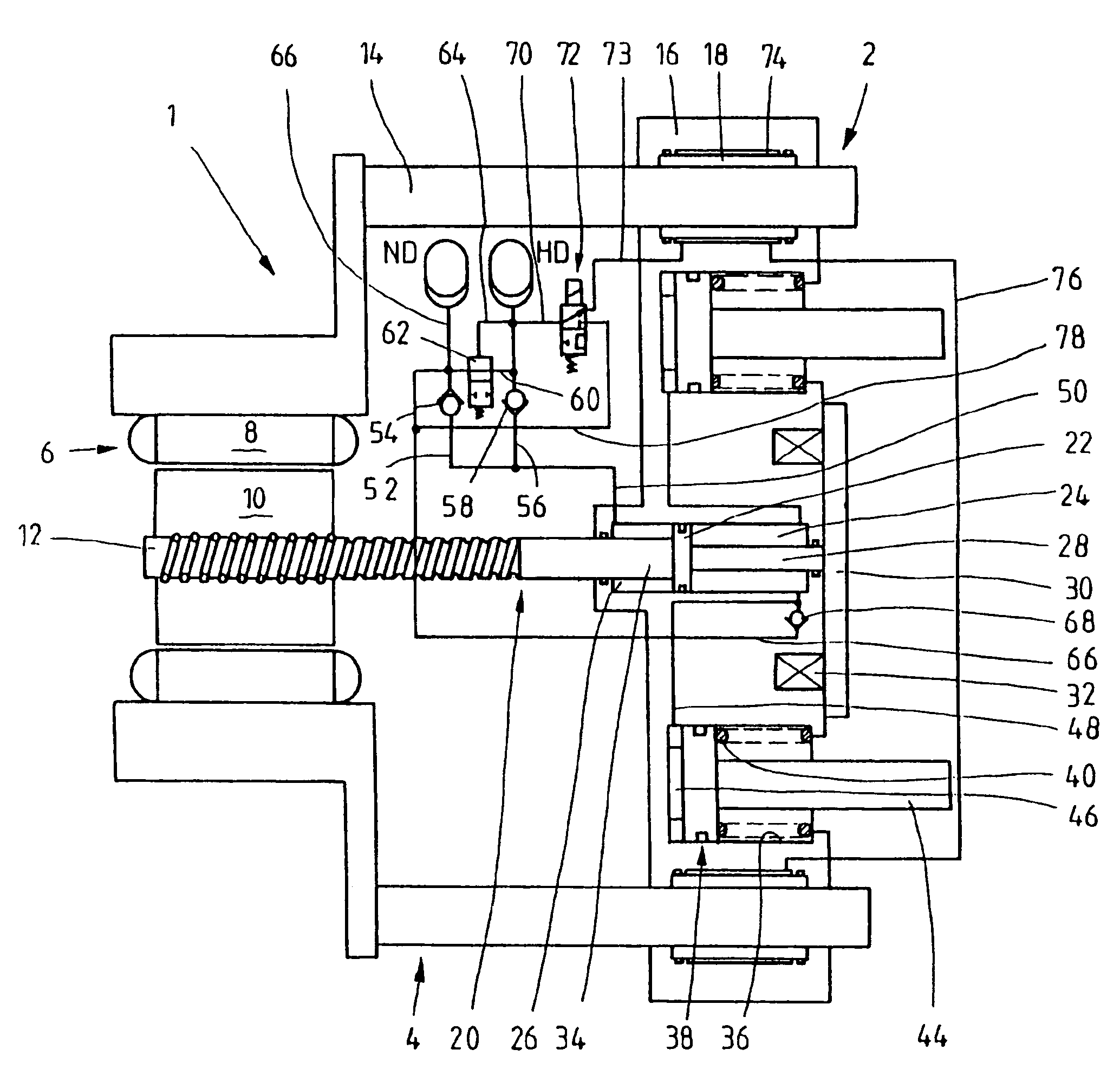

An actuator is disclosed, in particular for a locking unit of an injection compression machine, comprising a hydraulic force translator with two piston units moving relative to each other with different effective areas. The foregoing enclose a pressure chamber together with a cylinder or spacer of the force translator. The smaller piston unit is electrically driven, wherein the axial displacement of the smaller piston unit may be transmitted to the cylinder. The cylinder can be fixed relative to a chassis of the injection compression machine by means of a hydraulic clamping device. According to the invention, the pressure necessary for clamping is delivered by a high-pressure reservoir which may be charged during the displacement of the smaller piston unit.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B29C Class
- 7.07 % this patent is cited more than
- 15 Age
