Full Text

US Patent No: 7681857

Portable sign and barricade assemblies and plastic molded uprights and light and flag mounts therefor

---

Abstract

---

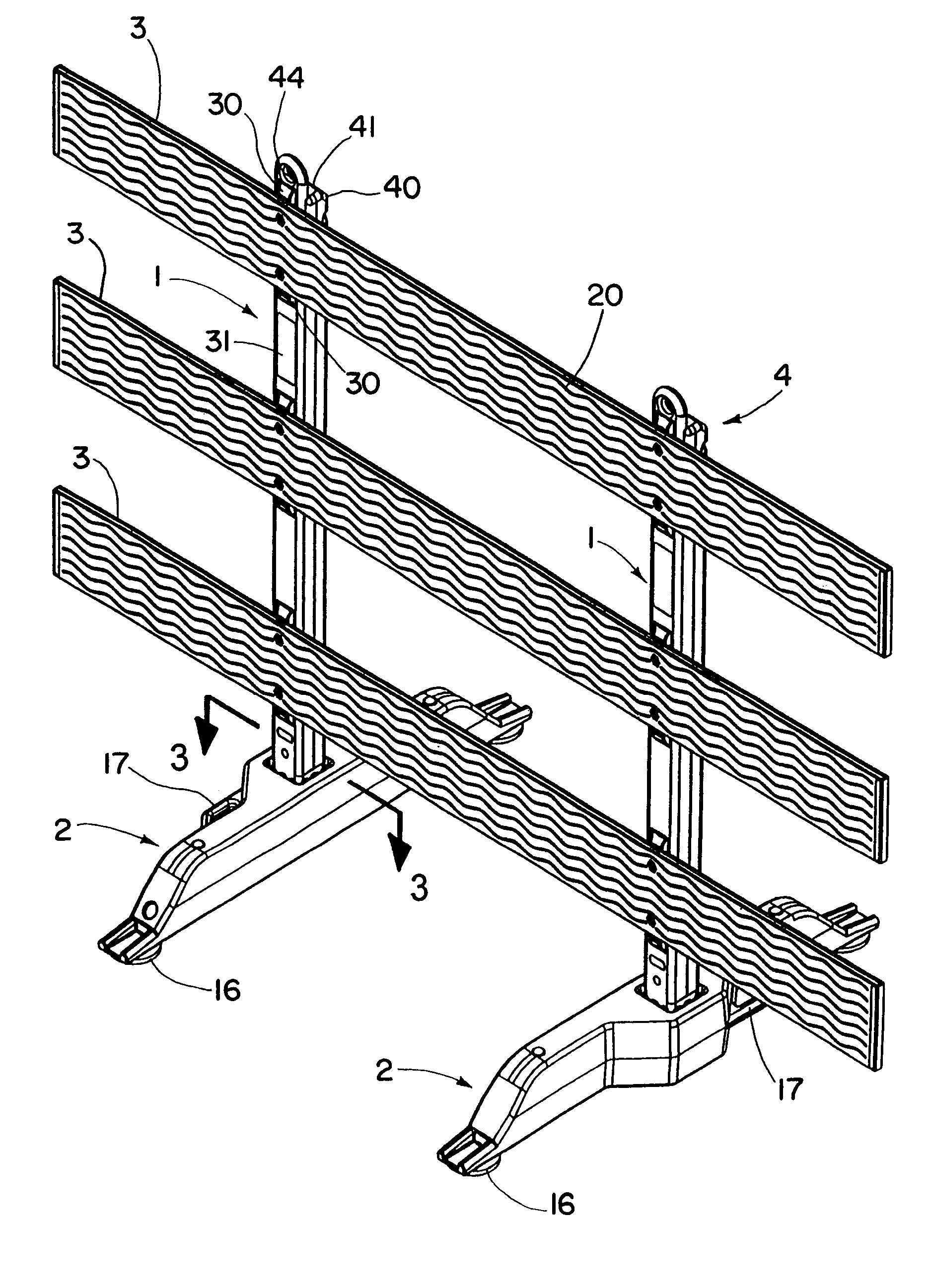

Plastic molded uprights and/or light and flag mounts may include stepped upper ends for mounting of a light thereon and/or laterally spaced apart oppositely downwardly angled flag mounting holes extending at least partway therethrough adjacent the upper ends thereof. One or more pairs of integral molded, axially spaced apart flanges may protrude outwardly from one of the front and back walls of the uprights for aiding in locating and supporting one or more barricade boards between respective pairs of flanges.

---



---

Description

---

Claims

---

Claims data not available

---
