Drive device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 23, 2010
Grant Date -
Mar 22, 2007
app pub date -
Jun 22, 2006
filing date -
Jun 27, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

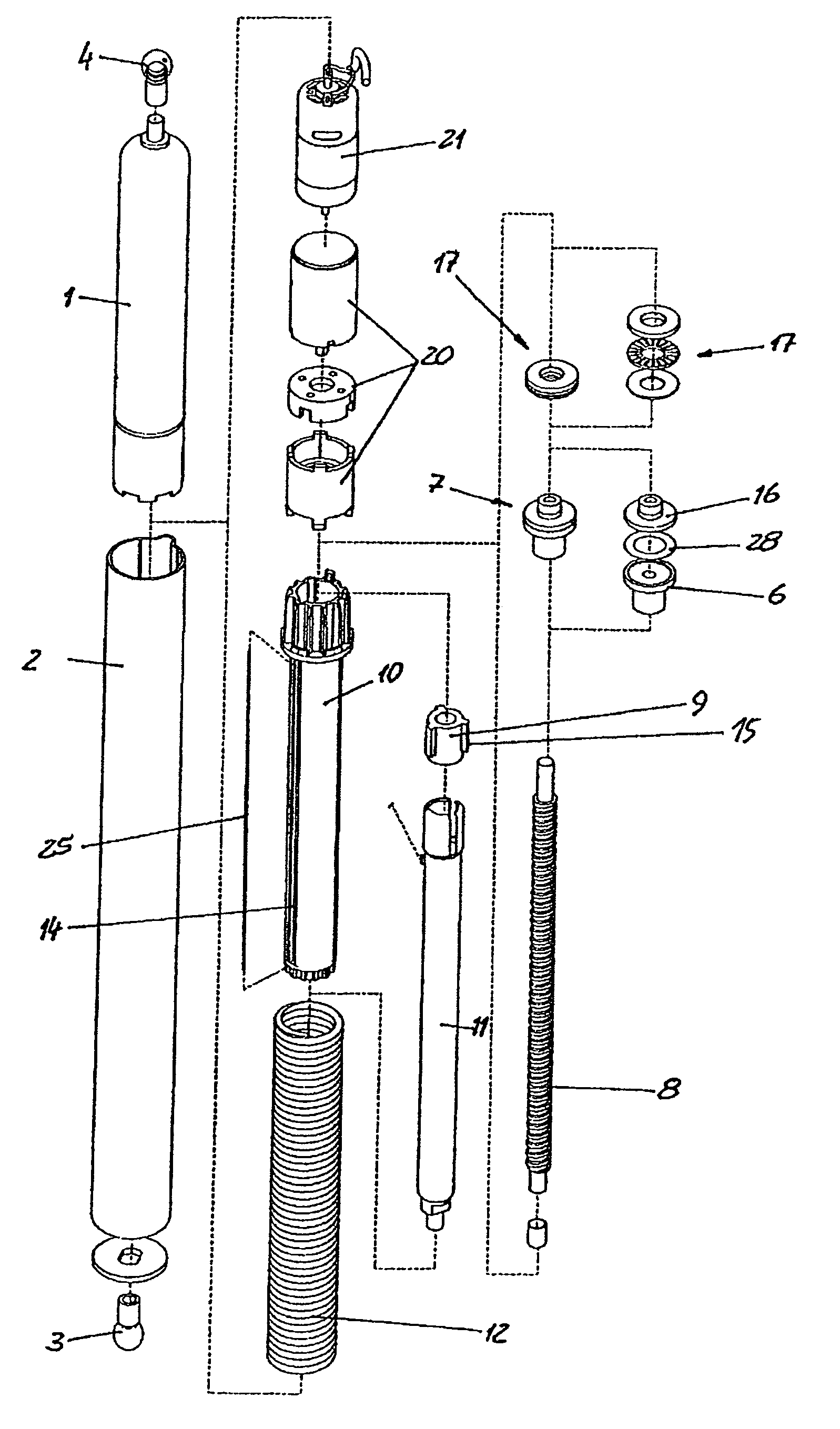

A drive device for moving a flap of a vehicle includes a first fastening element which can be connected to one of a moveable component and a fixed component, and a housing tube which is axially movable relative to the first fastening element. The housing tube has an end opposite the first fastening element which carries a second fastening element which can be connected to the other of the moveable component and the fixed component. A spindle drive includes a threaded spindle having end mounted for rotation in the housing tube and fixed against axial movement with respect to the housing tube, and a spindle nut arranged on the threaded spindle. The spindle nut is connected to the first fastening element and secured against rotation with respect to the housing tube, and a rotary drive is arranged to drive the spindle in rotation.
