Drip shield for a drawer-type dishwasher
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2010
Grant Date -
Oct 25, 2007
app pub date -
Apr 20, 2006
filing date -
Apr 20, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

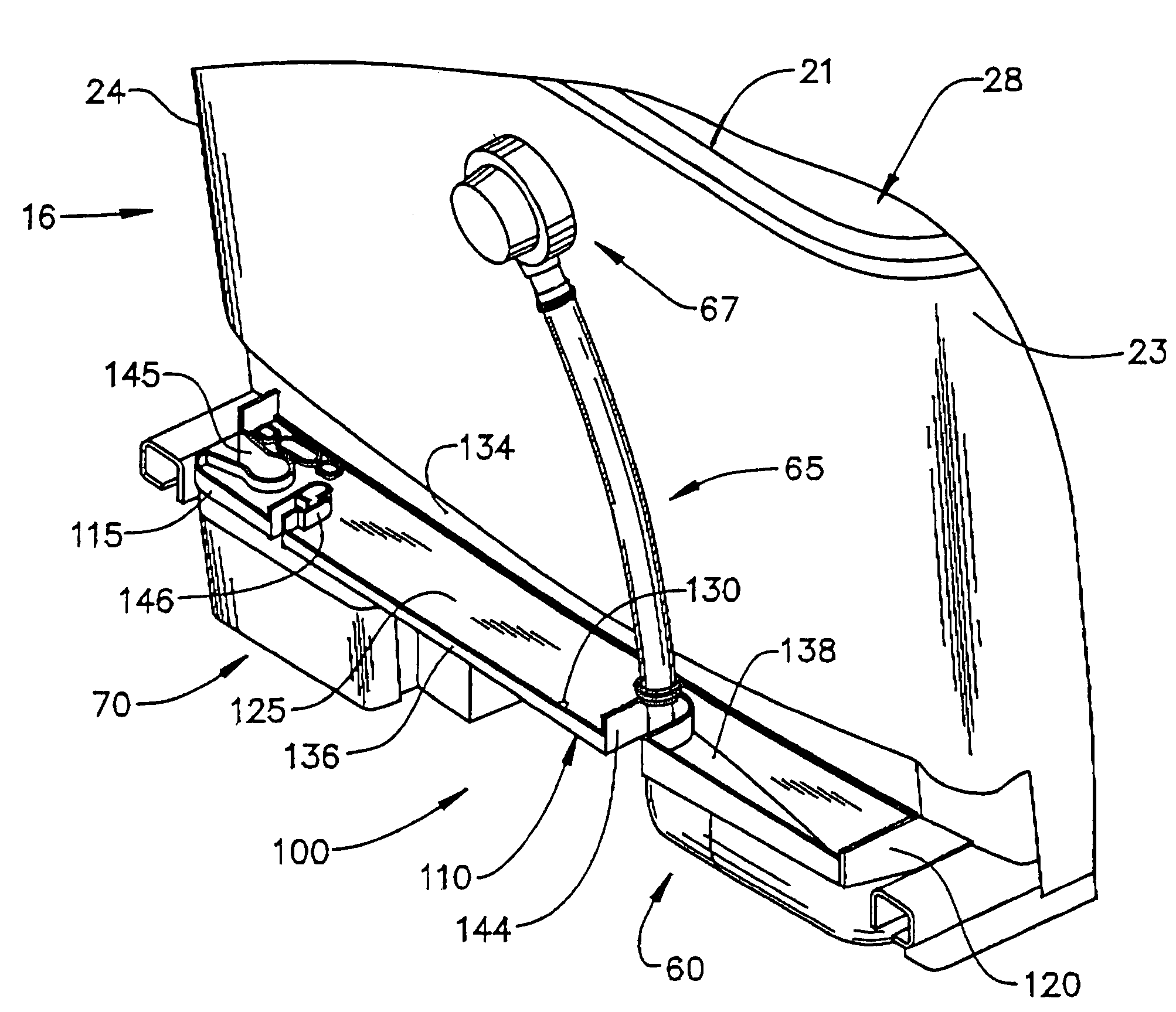

A drip shield is mounted to a drawer of a drawer-type dishwasher so as to extend along an outer rear surface of the drawer and catch droplets of washing fluid falling from a lid of the dishwasher. The drip shield includes a shelf that extends between up-turned wall portions. The shelf is angled away from the tub so that any droplets of washing fluid that may fall onto the drip shield will migrate away from the drawer. The shelf is also formed such that first and second end portions are positioned higher than a central or intermediate portion. This construction forces the droplets of washing fluid to collect in a centralized drain point from where the droplets of water can be guided to a controlled location.
