Rear body panel for a golf car
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2010
Grant Date -
Apr 30, 2009
app pub date -
Dec 28, 2007
filing date -
Oct 31, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

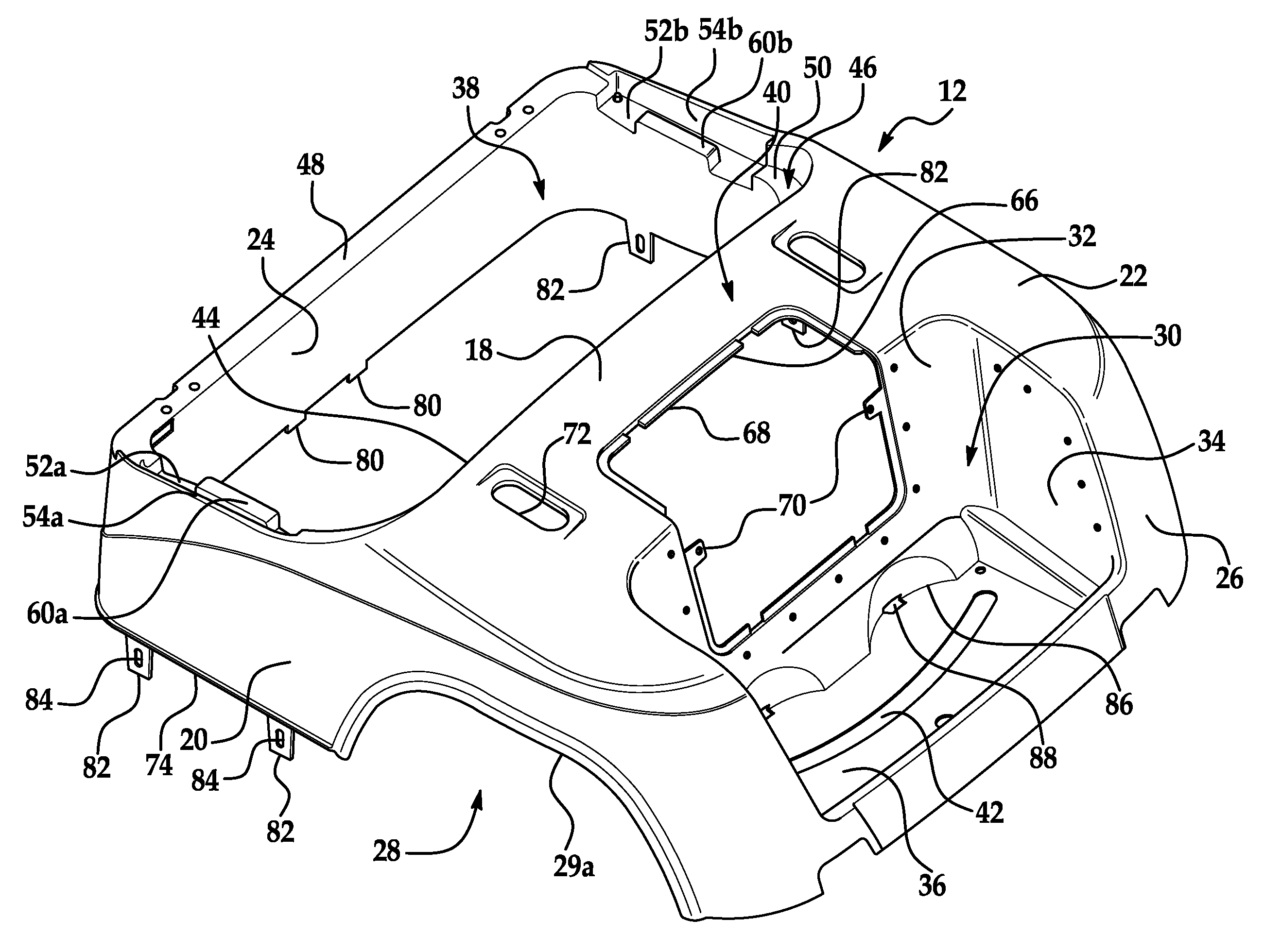

A rear body panel for a golf car includes a seat support portion and a bag well portion disposed rearward from the seat support portion. The rear body panel also includes a pair of wheel wells disposed on opposite sides of the bag well portion. The seat support portion includes a discontinuous recessed flange, a lower end trim edge, and at least one tab for limiting movement of the rear body panel on the golf car. Stiffening ribs are also included adjacent the wheel wells, and hand hold apertures are further included. The bag well portion includes a front wall portion, a pair of outwardly sloped side walls, and a floor portion with an impact absorption feature.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B62D Class
- 3.13 % this patent is cited more than
- 15 Age
