Reducing residual stresses during sand casting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 16, 2010
Grant Date -
Jan 1, 2009
app pub date -
Jun 29, 2007
filing date -
Jun 29, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

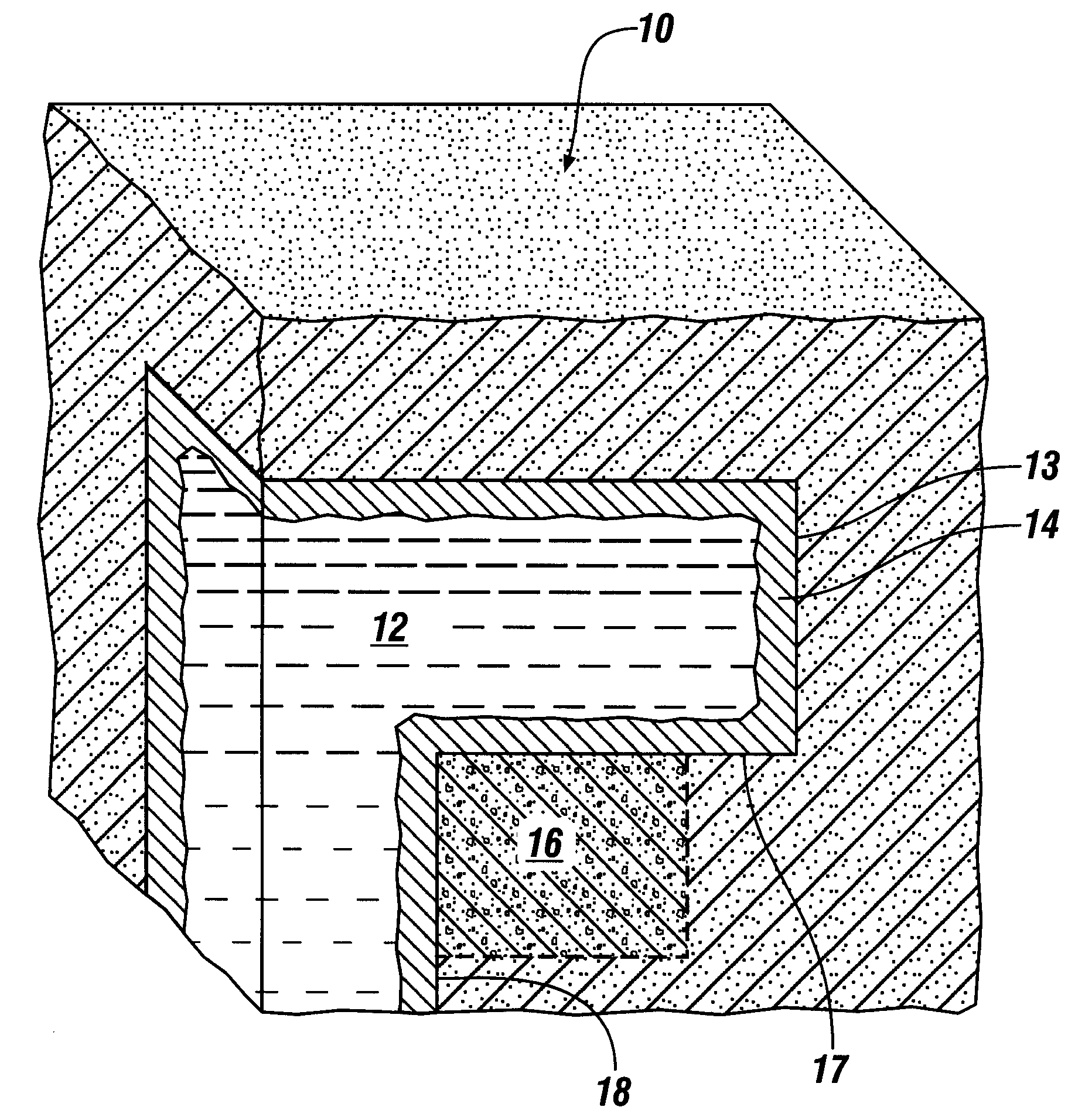

Residual stress is reduced in light metal alloy articles, e.g. aluminum alloy articles, formed as castings against a sand casting mold body by incorporating a wax composition of suitable softening or melting temperature with the sand particles of the mold or core body. The hot cast metal heats adjoining surfaces of the mold body. As the cooling metal forms a solid shell, the surrounding sand particle and wax mixture are heated sufficiently to melt or soften the wax incorporated on or between sand particles. This softens portions of the rigid mold body that could otherwise restrain shrinking surfaces of the casting and produce unwanted stressed regions that are retained in the casting and must be removed by subsequent processing.
First Claim
Other Claims data not available
