Mountable speaker assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 2010
Issued Date -
N/A
app pub date -
Nov 29, 2005
filing date -
Nov 29, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

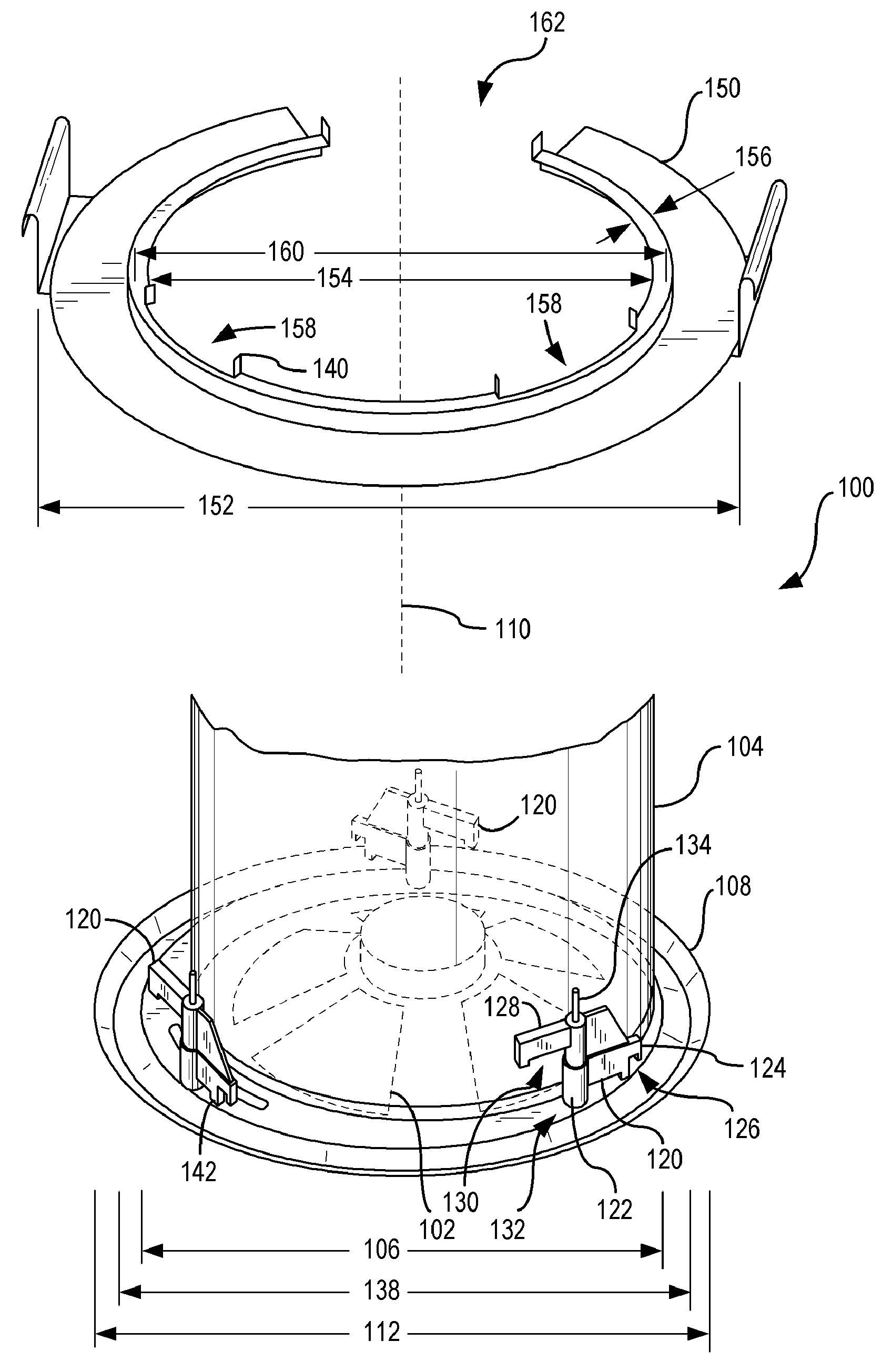

Embodiments of a speaker assembly and cooperating suspension ring designed to allow installation of the assembly in a horizontal ceiling tile from below are disclosed. The speaker assembly includes a body or housing with a flange at one end. The body has a diameter that allows it to fit through a hole the ceiling tile and the suspension ring. The assembly is further provided with clamps attached to the flange next to the body. In order to bring the flange into contact with the ceiling tile, the assembly must be aligned so that the clamps penetrate cooperating voids in the suspension ring. The assembly is then rotated in a direction depending on the tile thickness and lowered into a position where the clamps engage with projections on the suspension ring so that the suspension ring supports the weight of the assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- H04R Class
- 51.45 % this patent is cited more than
- 15 Age
