Method and device for wheel camber adjustment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 2010
Grant Date -
Oct 5, 2006
app pub date -
Jan 23, 2004
filing date -
Feb 7, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

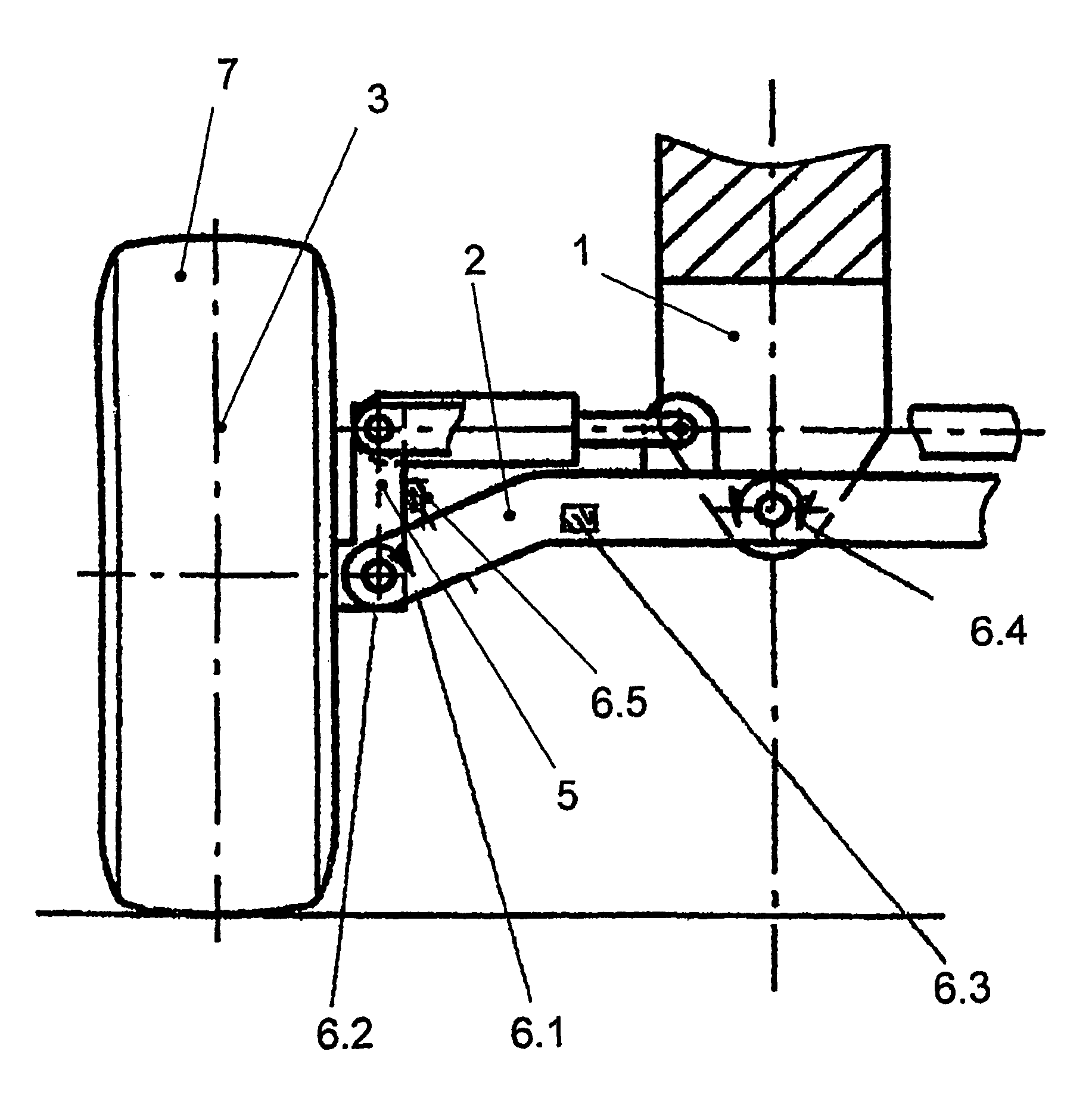

The invention concerns a method and a device for the adjustment of wheel camber in commercial vehicles, particularly wheeled construction vehicles used for earthworks, particularly on uneven ground. The camber angle is set inventively and automatically by means of a camber cylinder and a wheel pivot unit, as a function of at least one of the driving parameters. For this purpose, the driving parameters, e.g. the axle swing angle, the steering lock angle, the lateral force on the vehicle wheels on the front axle and the absolute inclination of the construction vehicle are detected by sensors, the output signals of which are fed to an electronic control unit as input parameters. The camber angle sets itself as a function of the setting signal from the electronic control unit by means of a camber cylinder and a wheel pivot unit, in accordance with specified control strategies. As well as the self-setting wheel camber adjustment system, the camber cylinder is embodied so that it can still be operated manually.
First Claim
Other Claims data not available
