Grip for parking brake operating lever
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2010
Issued Date -
N/A
app pub date -
Dec 8, 2006
filing date -
Sep 22, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

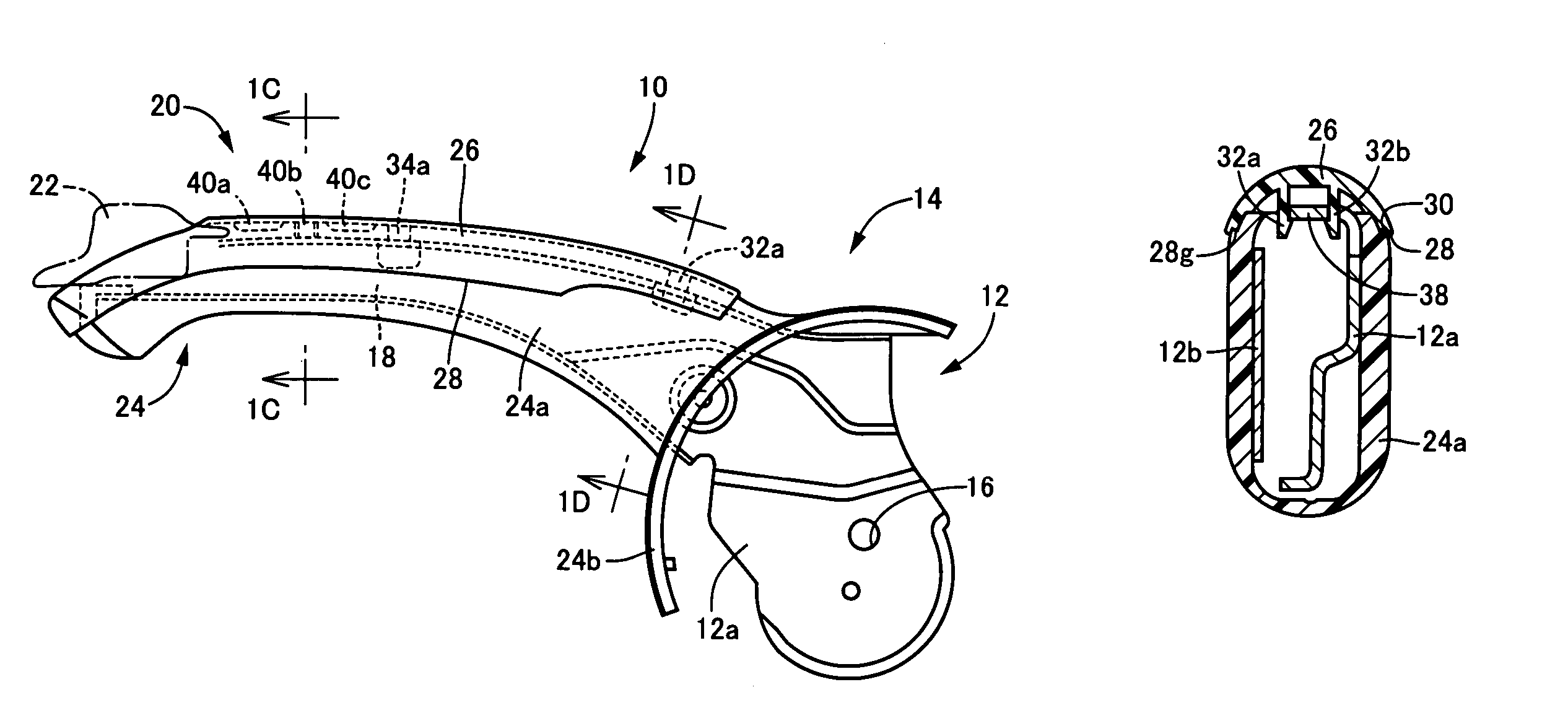

A grip for a parking-brake operating lever includes a tubular-shaped grip main body which is press-fitted on a lever main body of the operating lever so as to be mounted on an outer circumferential periphery of the lever main body, a grip cover which is mounted on a part of a circumferential periphery of the grip main body, an engaging tab which projects from an inner surface of the grip cover and which is inserted through an insertion hole provided in the grip main body and is held in engagement with an engaging portion provided in the lever main body, such that the engaging tab is movable relative to the engaging portion in a longitudinal direction of the lever main body, and a fitting protrusion and recess which are respectively provided in the inner surface of the grip cover and the outer circumferential surface of the grip main body, and which are held in fitting engagement with each other for positioning the grip cover in a predetermined relative to the grip main body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2006 Application Filing Year
- B60T Class
- 467 Applications Filed
- 276 Patents Issued To-Date
- 59.11 % Issued To-Date
