Cosmetic applicator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 2010
Issued Date -
N/A
app pub date -
Jun 2, 2005
filing date -
Jun 2, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

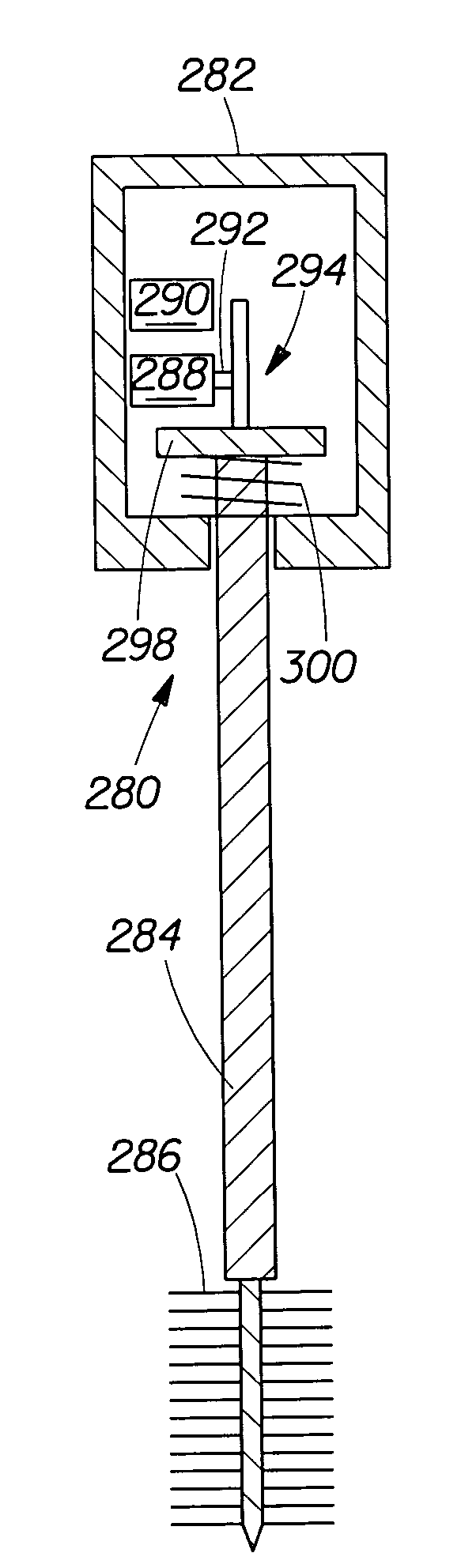

An apparatus for applying a cosmetic, such as mascara to eyelashes, includes a handle, a stem, and an applicator head coupled to the stem and supported for movement relative to the handle in a direction substantially parallel to the stem axis. An actuator moves the applicator head in an axial motion comprising a forward stroke and a reverse stroke. Additionally or alternatively, the actuator may move the applicator head in a composite motion including an axial component substantially parallel to the stem axis and having a forward stroke and a reverse stroke, and a rotational oscillating component. The actuator may be a motor having a rotating motor shaft, and the applicator may further include a transmission coupling disposed between the motor shaft and the applicator head for automatically converting rotation of the motor shaft in one direction into axially reciprocating movement of the applicator head.
First Claim
Other Claims data not available
