Ceramic coating member for semiconductor processing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 2010
Grant Date -
Sep 20, 2007
app pub date -
Mar 20, 2007
filing date -
Mar 20, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

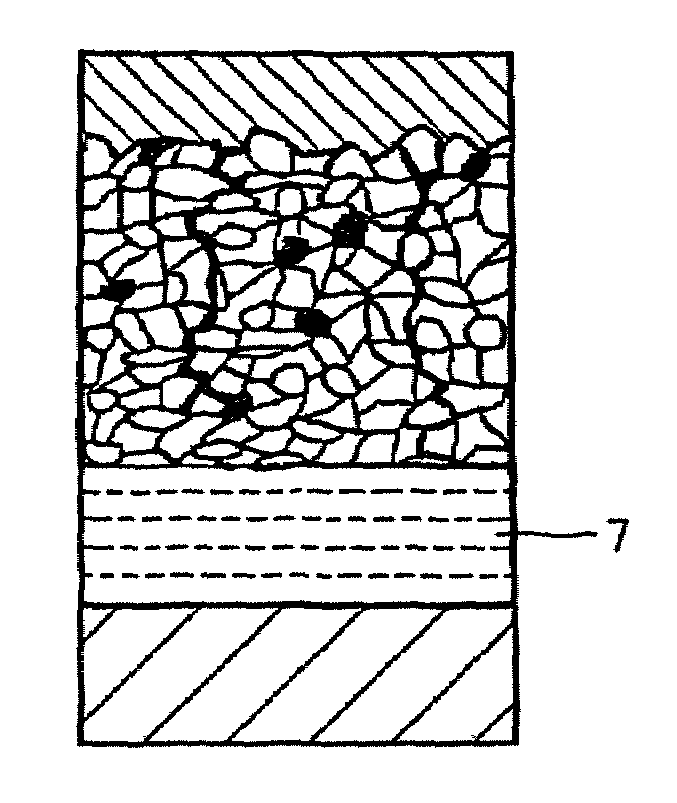

Improving the resistance of members and parts disposed inside of vessels such as semiconductor processing devices for conducting plasma etching treatment in a strong corrosive environment. A ceramic coating member for a semiconductor processing apparatus comprises a porous layer made of an oxide of an element in Group IIIb of the Periodic Table coated directed or through an undercoat on the surface of the substrate of a metal or non-metal and a secondary recrystallized layer of the oxide formed on the porous layer through an irradiation treatment of a high energy such as electron beam and laser beam.
