Method and apparatus for humidification of the membrane of a fuel cell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 12, 2010
Grant Date -
Jul 31, 2008
app pub date -
Sep 20, 2007
filing date -
Jun 30, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance

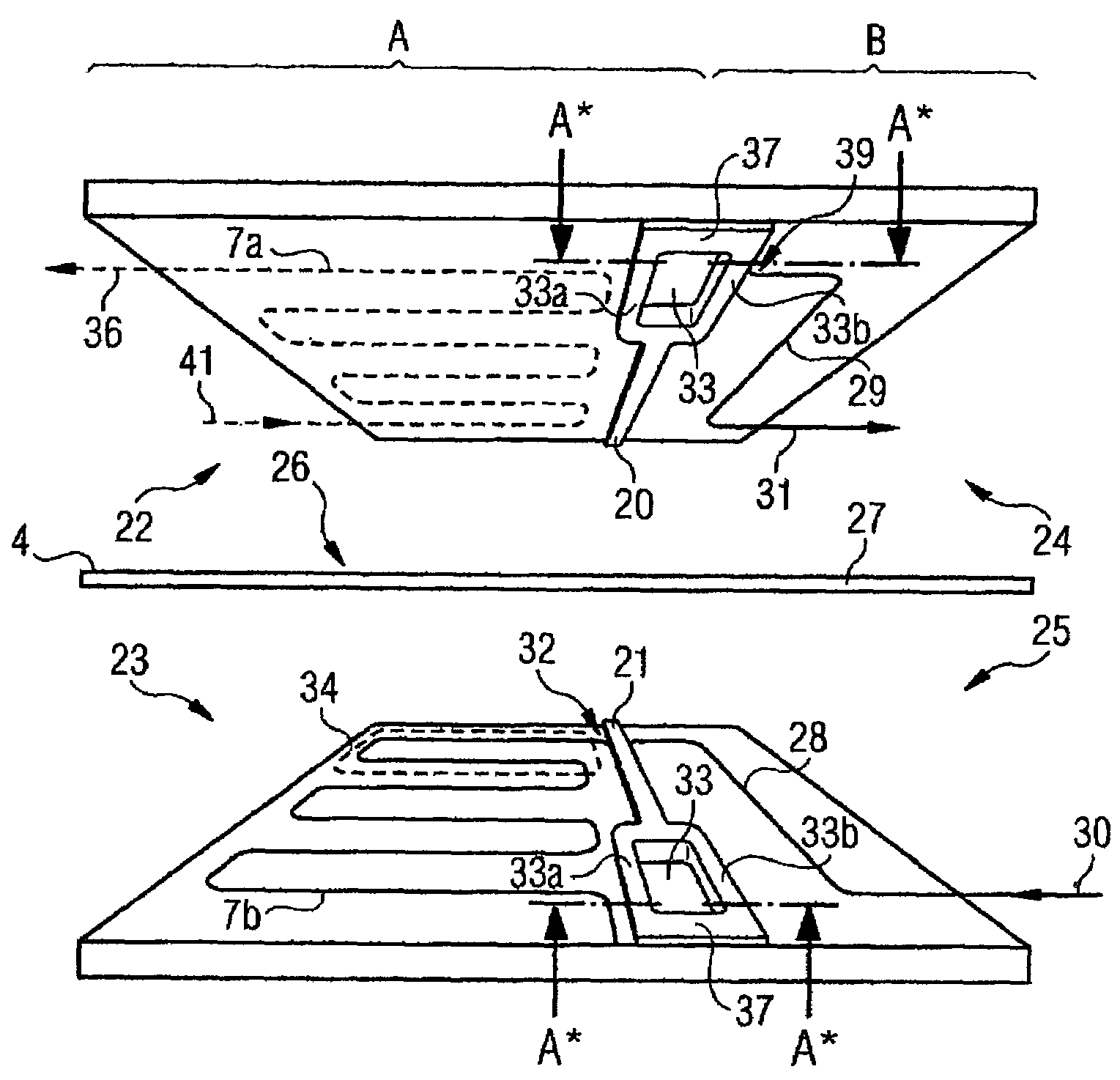

Abstract
A fuel cell has an electrochemical process area having a cathode area, an anode area and an ion-exchanging membrane that separates these areas. The cathode area has a gas passage way having a gas inlet, a gas channel and a gas outlet, wherein the gas passage way is for an oxygen-containing gas to flow from the gas inlet through the gas channel to the gas outlet. The fuel cell includes further a humidity transfer area having a dehumidifying zone, a humidifying zone and a humidity transfer membrane that separates these zones. An exhaust channel connects the gas outlet to the dehumidifying zone, and an inlet channel connects the gas inlet to the humidifying zone. Humidity is extracted from the oxygen-containing gas in the dehumidifying zone, and added to the oxygen-containing gas in the humidifying zone via the humidity transfer membrane.
First Claim
Other Claims data not available
Family
