Two-wheel axle suspension arrangement for an agricultural machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 12, 2010
Grant Date -
Aug 14, 2008
app pub date -
Feb 14, 2008
filing date -
Feb 14, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

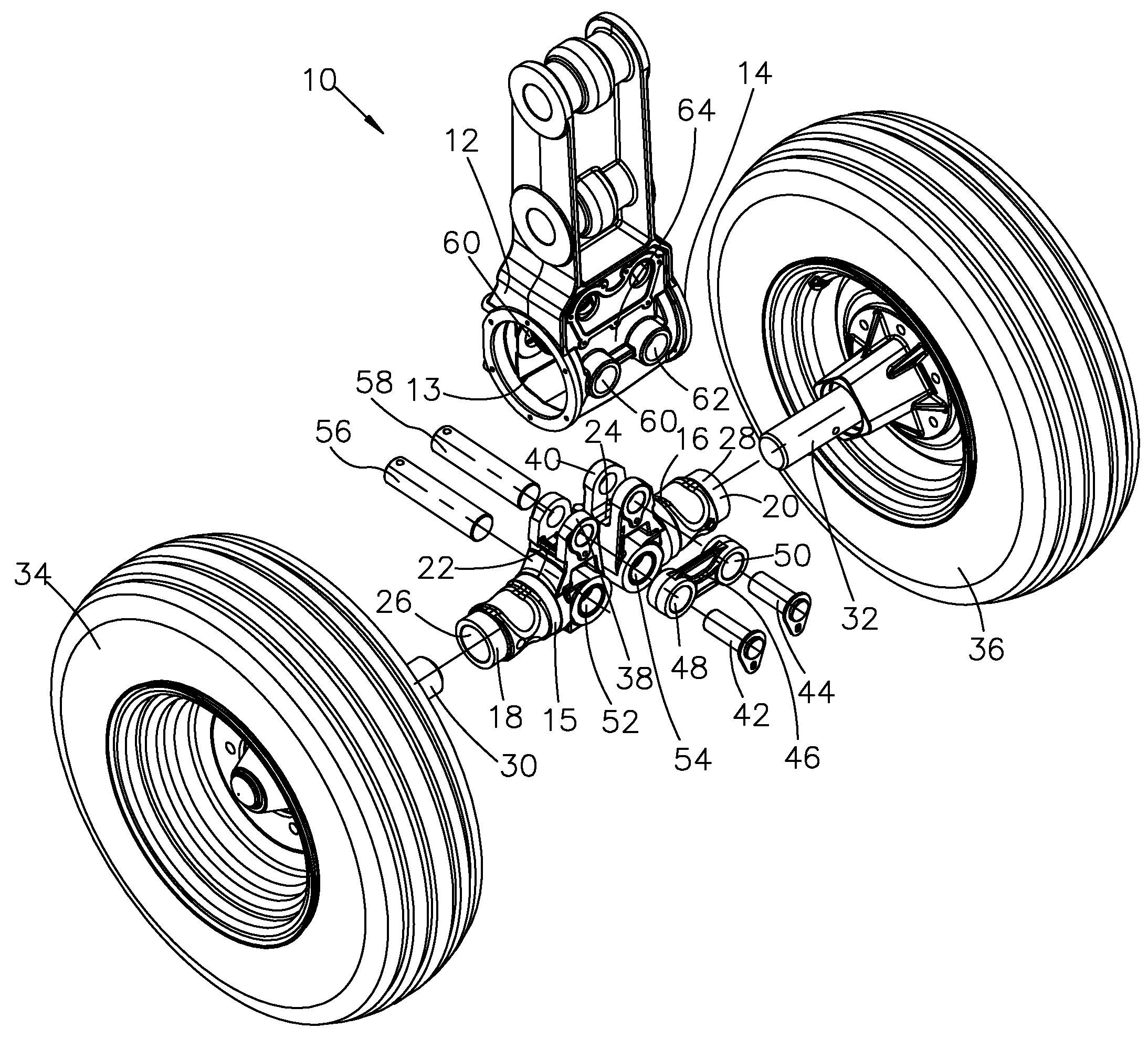

An axle suspension for first and second implement ground support wheels, the axle suspension comprising a housing connected to the implement frame and having an interior portion supporting first and second axle carriers for pivoting about first and second pivotal axes. The axle carriers each include outwardly extending members projecting from opposite sides of the housing and upright members fixed to the outwardly extending members for pivoting therewith about the first and second pivotal axes. A connector extending between the upper ends of the upright members constrains the axle carriers for rotation in the same direction about their respective pivotal axes.
First Claim
Other Claims data not available
