Tool for cutting structural materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2009
Grant Date -
Sep 13, 2007
app pub date -
Mar 7, 2007
filing date -
Mar 8, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

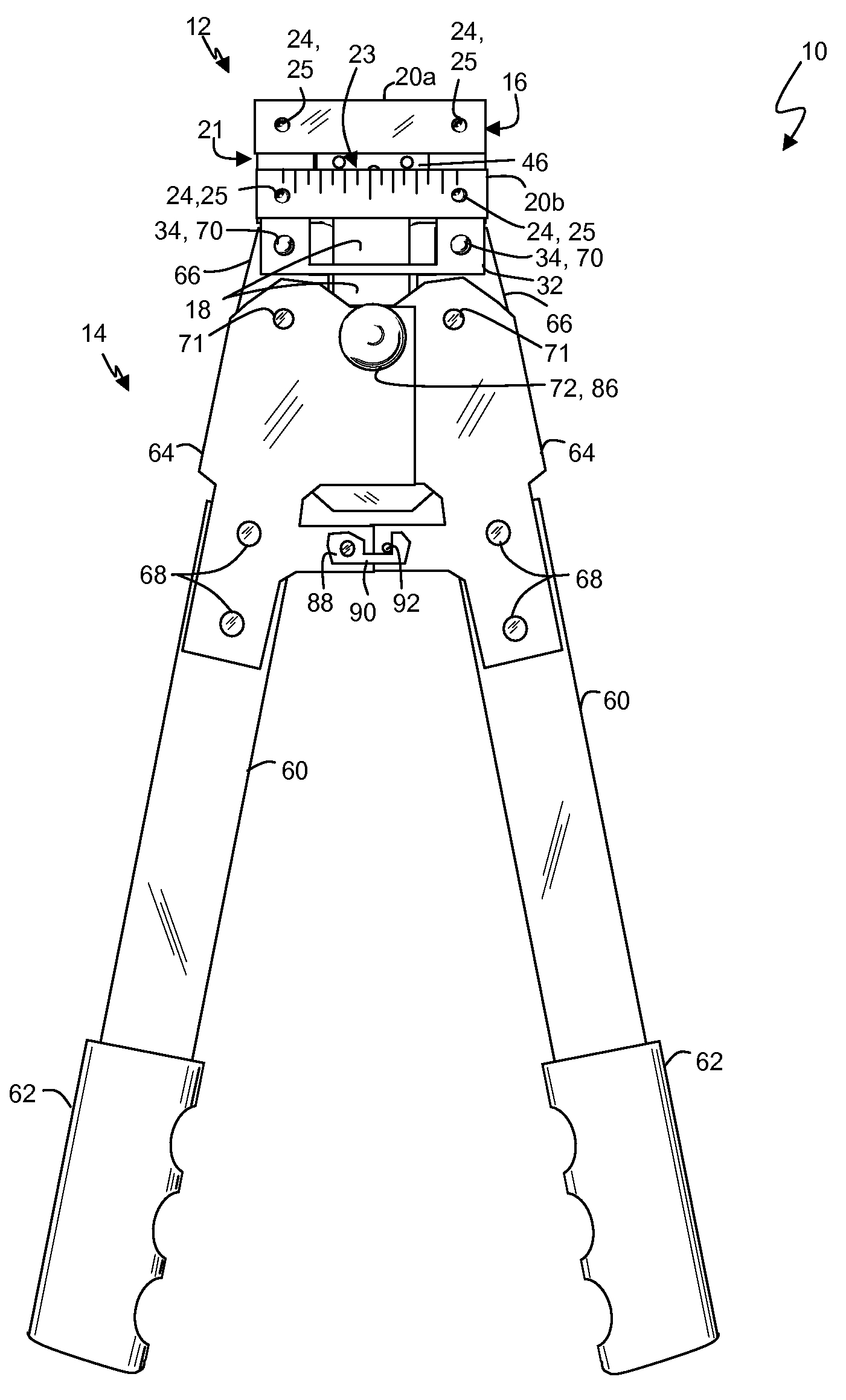

A clipper with a cutting head and having an actuator. The heads contain a structural profile-specific channel into which structural material having the profile for which the head is designed is inserted and clipped. The head is designable for various structural profiles and, in one embodiment, multiple heads are interchangeably operated by a single actuator. In the interchangeable embodiment, a release button having two sections of differing diameters is disposed in the actuator and communicates with a connector slot of the head to permit attachment and detachment of the head from the actuator. The structure-specific clipper increases the quality of cuts and decreases the amount of deformation caused to the material. The clipper reduces buildup of waste material by ejecting cuttings from the head upon clipping.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US8113096 | Dec 11, 2009 |
International Classification(s)
- 2007 Application Filing Year
- B26B Class
- 198 Applications Filed
- 133 Patents Issued To-Date
- 67.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B26B Class
- 3.01 % this patent is cited more than
- 16 Age
