Contact lens

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7625084
APP PUB NO 20090009712A1
SERIAL NO

12077953

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage
Patent Longevity
    Expired
Forward Citations

Abstract

See full text

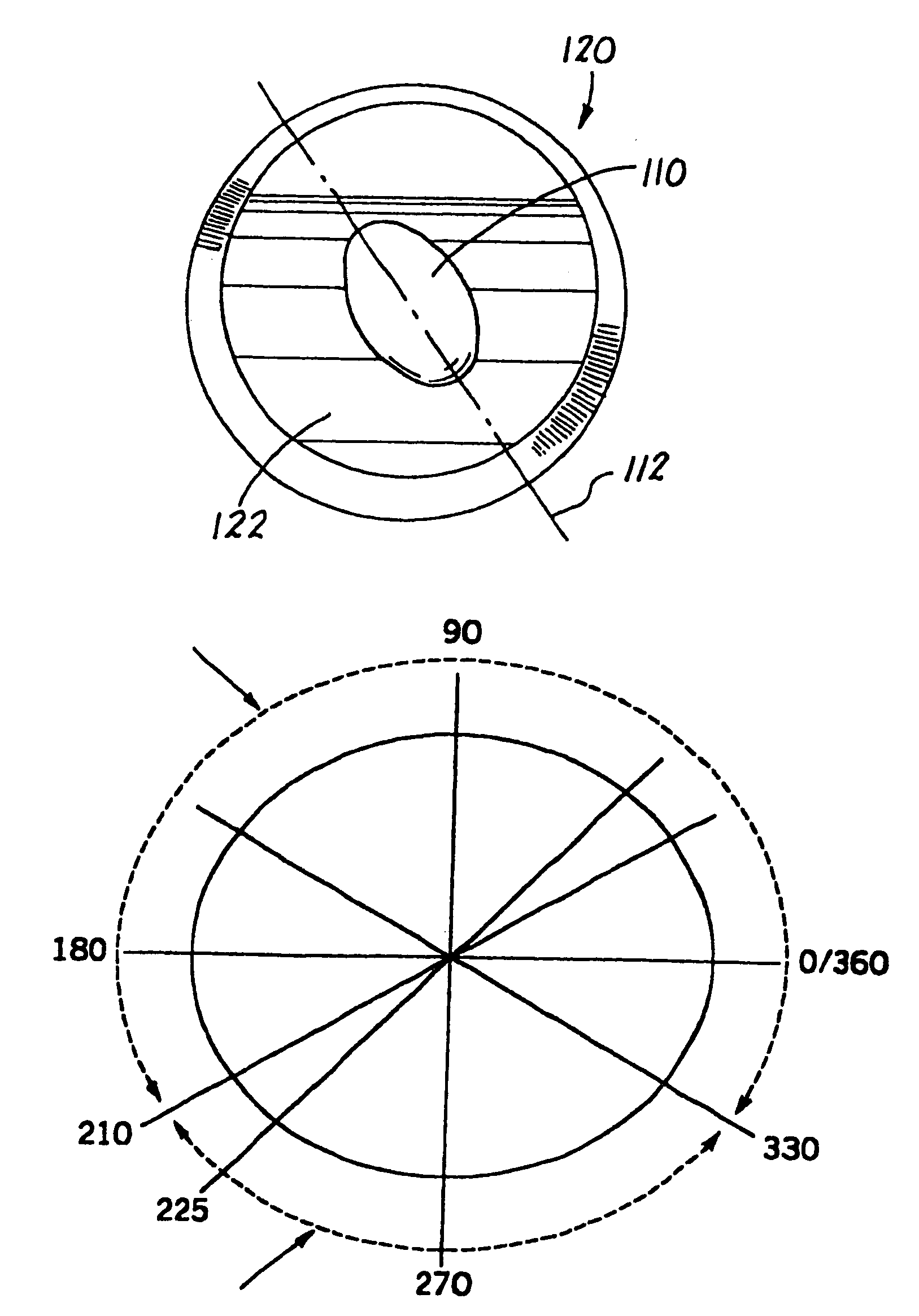

A contact lens having a rotational stabilization mechanism thereon, such as a prism ballast, and a thickness profile that reduces the torque imparted on the lens by the action of the eyelids, especially for stabilizing toric lenses. The prism ballast is provided on one or more portions of the anterior face of the lens such that the lens body has a uniform thickness of within 10% along horizontal cross-sections. The anterior face of the lens may be segregated into a peripheral zone, an inner zone circumscribed by the peripheral zone, and a central optic zone. The prism ballast portion is provided within the inner zone, which may be further subdivided into a superior portion, an intermediate portion proximate the optic zone, and an inferior portion. The ballast portion increases in thickness along a superior-inferior line parallel to a vertical meridian, and has a substantially uniform thickness perpendicular thereto. The peripheral zone may be tapered, and have a rounded edge. The rate of thickness change across any portion of the peripheral zone is less than about 250 μm/mm.

First Claim

See full text

Other Claims data not available

Family

Patent Owner(s)

  • COOPERVISION INTERNATIONAL HOLDING COMPANY, LP

International Classification(s)

loading....
  • 2008 Application Filing Year
  • G02C Class
  • 248 Applications Filed
  • 163 Patents Issued To-Date
  • 65.73 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances200820092010201120122013201420150255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Back, Arthur Danville , US 69 1783

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • G02C Class
  • 0 % this patent is cited more than
  • 16 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges6672910126611101 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7081 - 90100 +051015202530354045505560657075

Forward Cite Landscape

Load Citation
