Spring supported lower clamper for direct tensile test
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 1, 2009
Grant Date -
Nov 13, 2008
app pub date -
Oct 31, 2007
filing date -
Nov 8, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

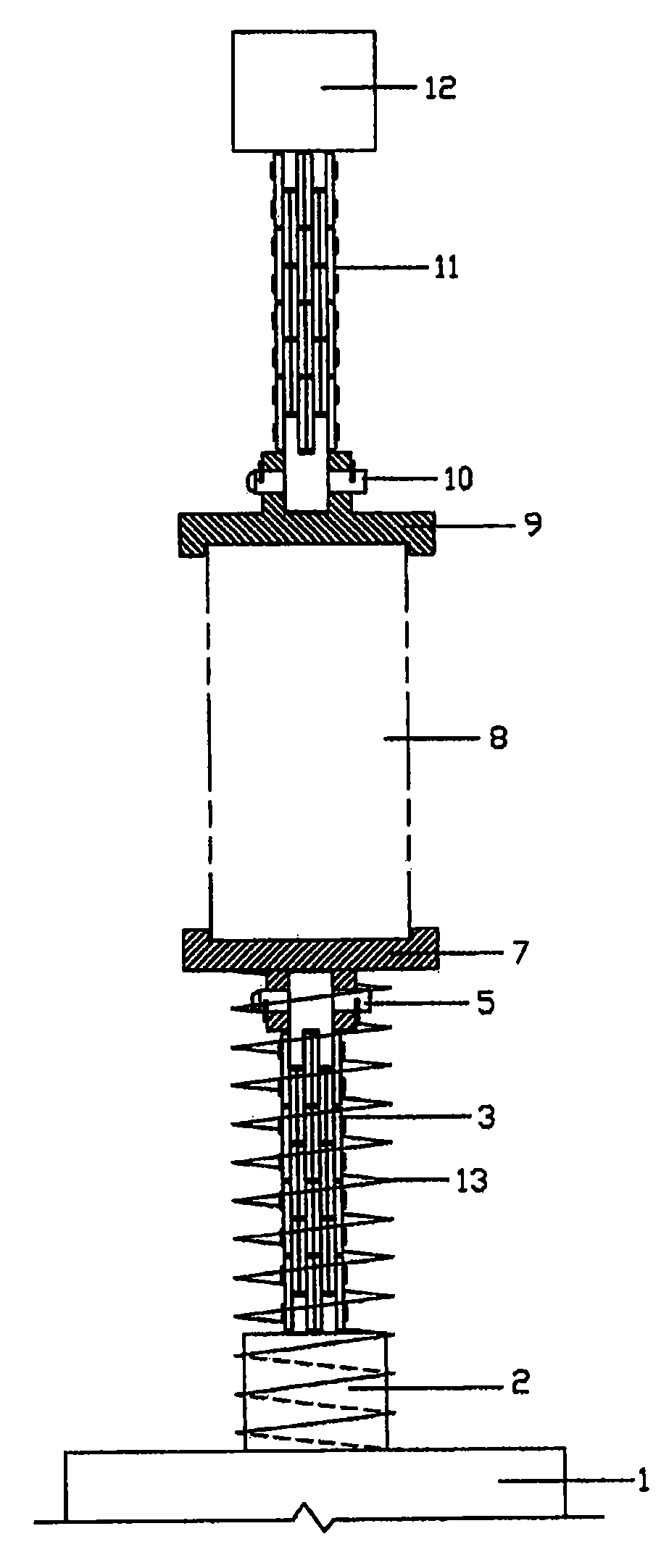

A spring supported lower clamper for direct tensile test, comprising a lower connection member, a lower end cap for holding a sample, a lower chain for connecting the lower connection member with the lower end cap, and spring-type supporting provisions for supporting a broken-apart lower part of the sample formed during the tensile test and the lower end cap. During the tensile test, the sample, the lower end cap and the lower chain are supported by the spring-type supporting provisions. Thus the sample can be prevented from being broken abruptly when a tensile force in the sample reaches its maximum level, and the mechanical behavior after the maximum tensile force is reached can be measured.
First Claim
Other Claims data not available
Family
