Conversion kit for particulate screening system and related implementation methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 24, 2009
Grant Date -
Aug 17, 2006
app pub date -
Dec 2, 2005
filing date -
Aug 7, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

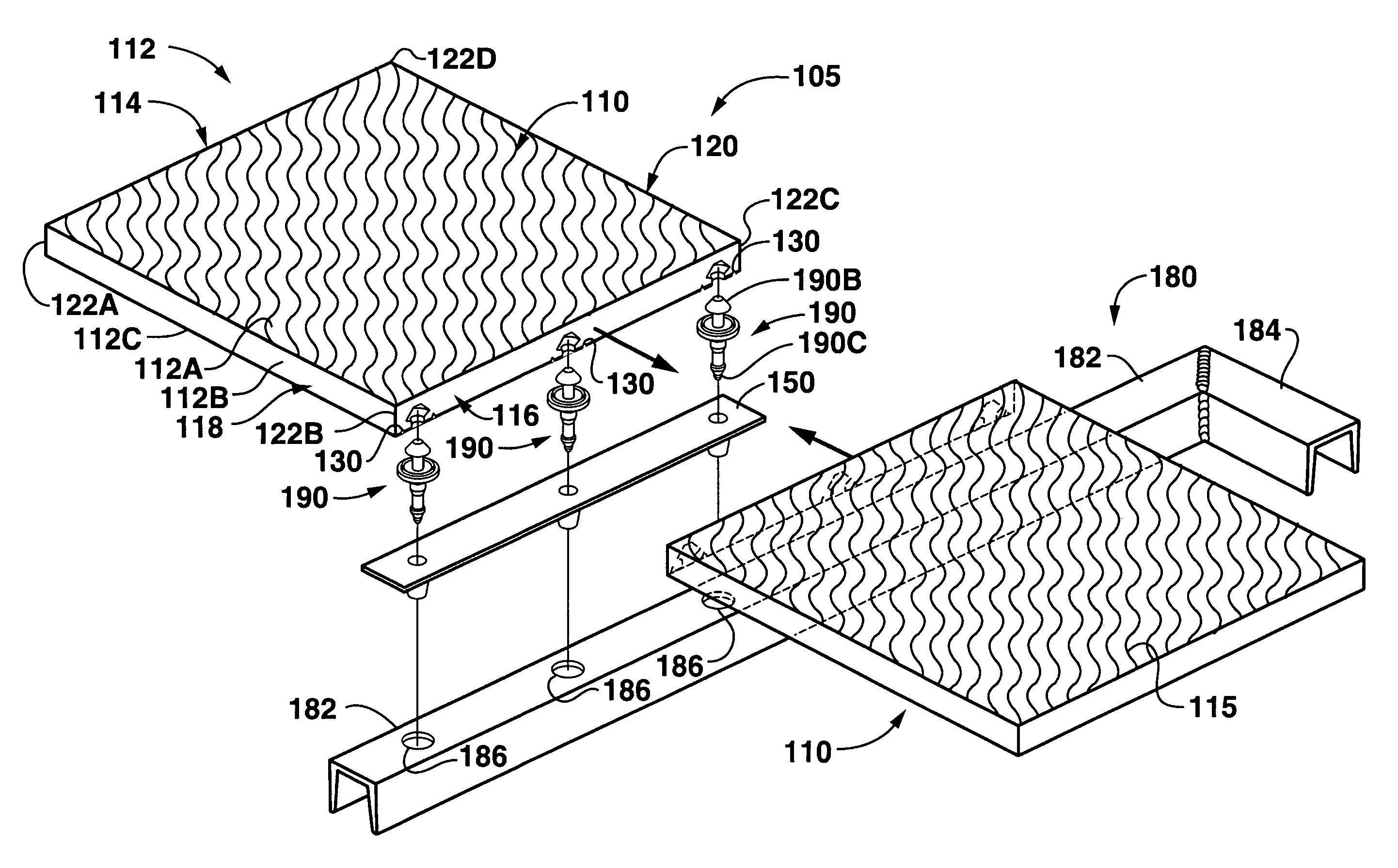

A conversion kit for interconnecting particulate screening panels to a support frame includes a plurality of panels, an interface and a connecting pin. A method of using the conversion kit includes the steps of providing at least two of the screening panels each defining at least one locating recess; providing an interface having at least one skirt depending therefrom and a bore therethrough; providing at least one pin defining a head and an opposing extension; attaching the head in the locating recesses to connect the screening panels together; inserting the skirt in an aperture of a support frame; and inserting the opposing extension in the bore of the skirt to attach the screening panels to the support frame for screening particulates.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2005 Application Filing Year
- B07B Class
- 63 Applications Filed
- 37 Patents Issued To-Date
- 58.74 % Issued To-Date
