Pump and filter system for a drawer-type dishwasher
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2009
Grant Date -
Aug 10, 2006
app pub date -
Feb 9, 2005
filing date -
Feb 9, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance

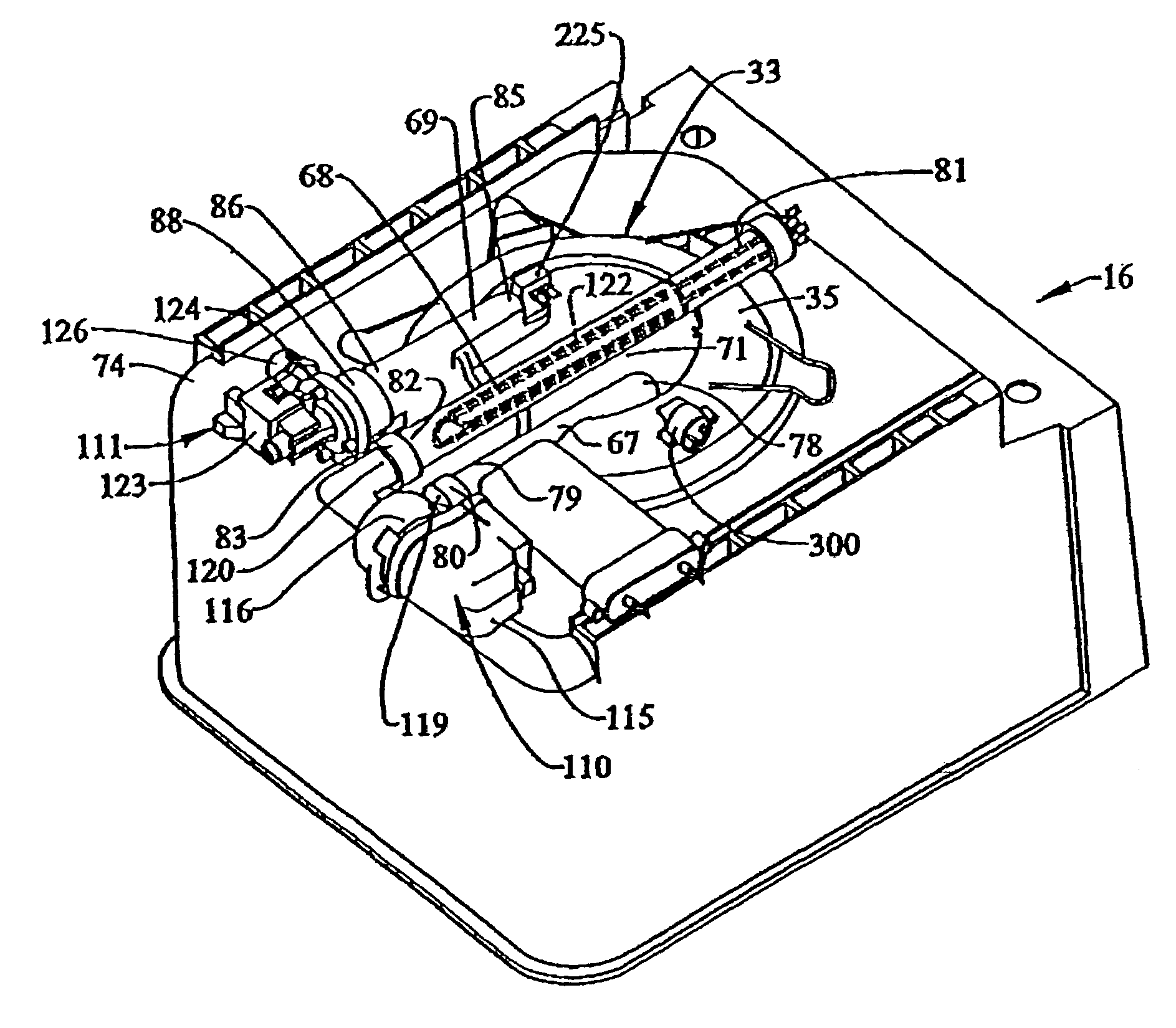

Abstract
A drawer-type dishwasher includes a pump system which functions to pump and filter washing fluid in the dishwasher. The pump system includes a sump having an inlet passage, a recirculation passage, a drain passage, a coarse article collection chamber, a filter assembly that is divided into a filter chamber and a washing fluid manifold, and a stationary hub that rotatably supports a wash arm for spraying washing fluid onto dishware supported in the dishwasher. The filter chamber includes a fine particle collection chamber having a valve that selectively opens to allow particles trapped in the filter chamber and fine particle collection chamber to flow to the drain passage. The filter assembly includes a cover having a plurality of radial spaced openings over the filter chamber, as well as a central opening that receives a stationary hub member which rotatably supports a wash arm.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2005 Application Filing Year
- B08B Class
- 559 Applications Filed
- 304 Patents Issued To-Date
- 54.39 % Issued To-Date
