Continuously variable transmission device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2009
Grant Date -
Jun 21, 2007
app pub date -
Nov 11, 2004
filing date -
Nov 14, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

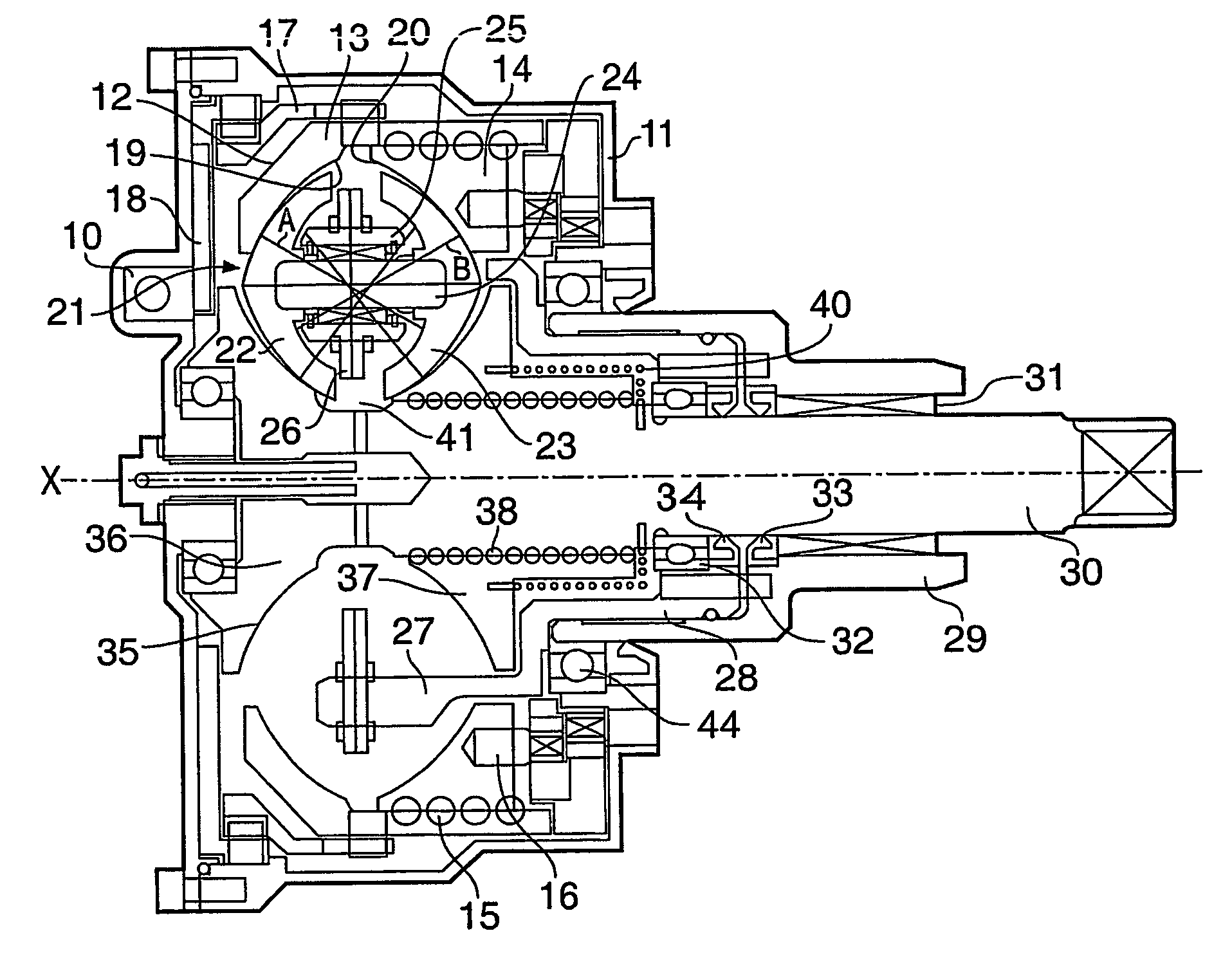

A continuously variable transmission device has planetary members (23) in rolling contact with radially inner and outer races (12, 14; 36, 37) each comprising axially spaced relatively axially movable parts, and control means (18) for determining the axial separation of the parts (12, 14) of one of the two races, in which the planetary members (23) are connected for drive transmission to an input or output member (30) of the transmission device by connection means which allows the radial position of the planets to vary in response to variation in the axial separation of the parts (12, 14) of the said one of the two races (37), and in which the generatrix of the curved surface (70, 71) of at least one of the races (37) and/or planetary members (23) is non-circular.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16H Class
- 4.30 % this patent is cited more than
- 16 Age
