Method for forming layered heating element for glow plug
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2009
Grant Date -
Jul 5, 2007
app pub date -
Dec 29, 2005
filing date -
Dec 29, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

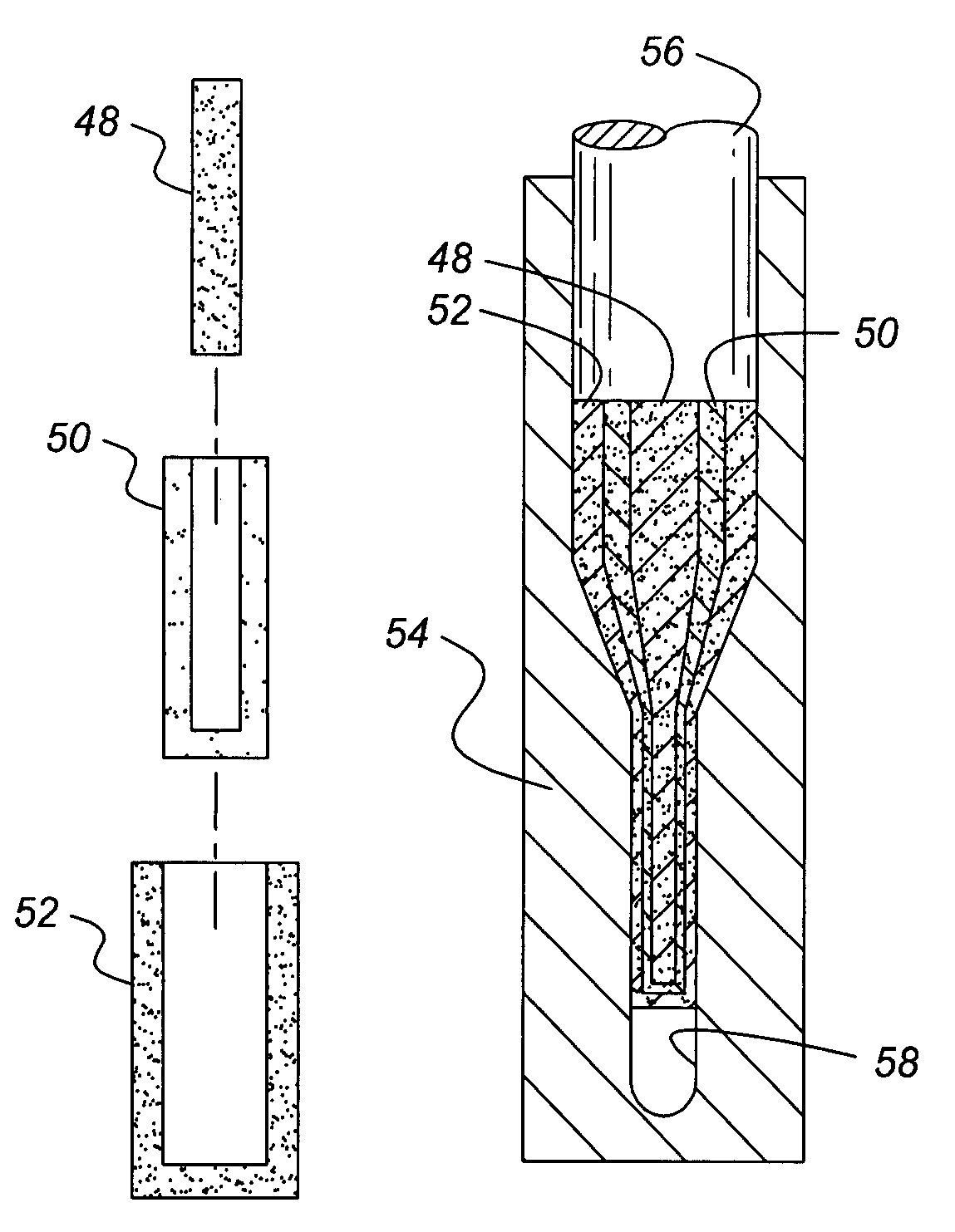

A monolithic, multi-layer heating element forms the high temperature tip of a glow plug assembly. The heating element includes a conductive core which is surrounded by an insulator layer, which in turn supports a resistive layer. An optional conductive jacket can surround the resistive layer. These layered components are pre-formed in prior operations and then assembled one into the other to form a precursor structure. The precursor structure is transferred to a die, where it is compressed to form a so-called green part having dimensional attributes proportional to the finished heating element. The individual layers remain substantially intact, with some boundary layer mixing possible to enhance material-to-material bonding. The green part is sintered to bond to various materials together into an essentially solid mass. Various finishing operations may be required, following which the heating element is assembled to form a glow plug.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B23P Class
- 6.54 % this patent is cited more than
- 16 Age
