Powered device for vehicle sliding door
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2009
Grant Date -
Jul 14, 2005
app pub date -
Sep 24, 2002
filing date -
Sep 21, 2001
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

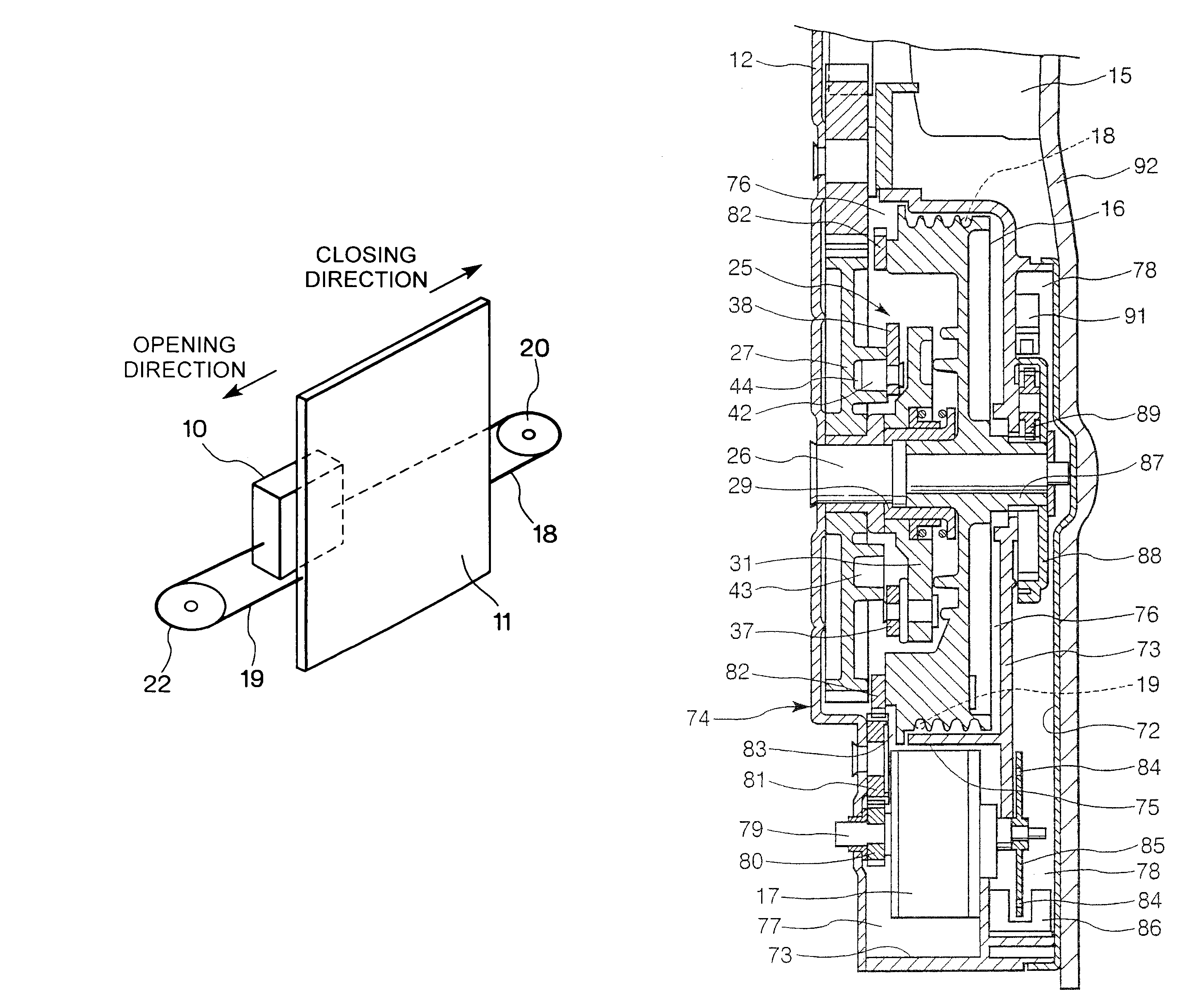

A powered sliding device includes a wire drum (16) connected to a vehicle sliding door (11) through wire cables (18, 19), a motor (14) for rotating the wire drum, a clutch mechanism (25) provided between the motor and the wire drum, a rotational member (85) rotated integrally with the wire drum, detection apparatus (86) for detecting the rotation of the rotational member, and a housing (74). The housing includes a first space (76) accommodating the wire drum and communicating with the outside of the housing through the wire cables and a second space accommodating the rotational member and the detection apparatus, and a housing body (73) provided between the first space and the second space which separates the first space and the second space.
