Deep separation method and processing system for the separation of heavy oil through granulation of coupled post-extraction asphalt residue
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2009
Grant Date -
Jan 11, 2007
app pub date -
Nov 1, 2005
filing date -
Jul 5, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

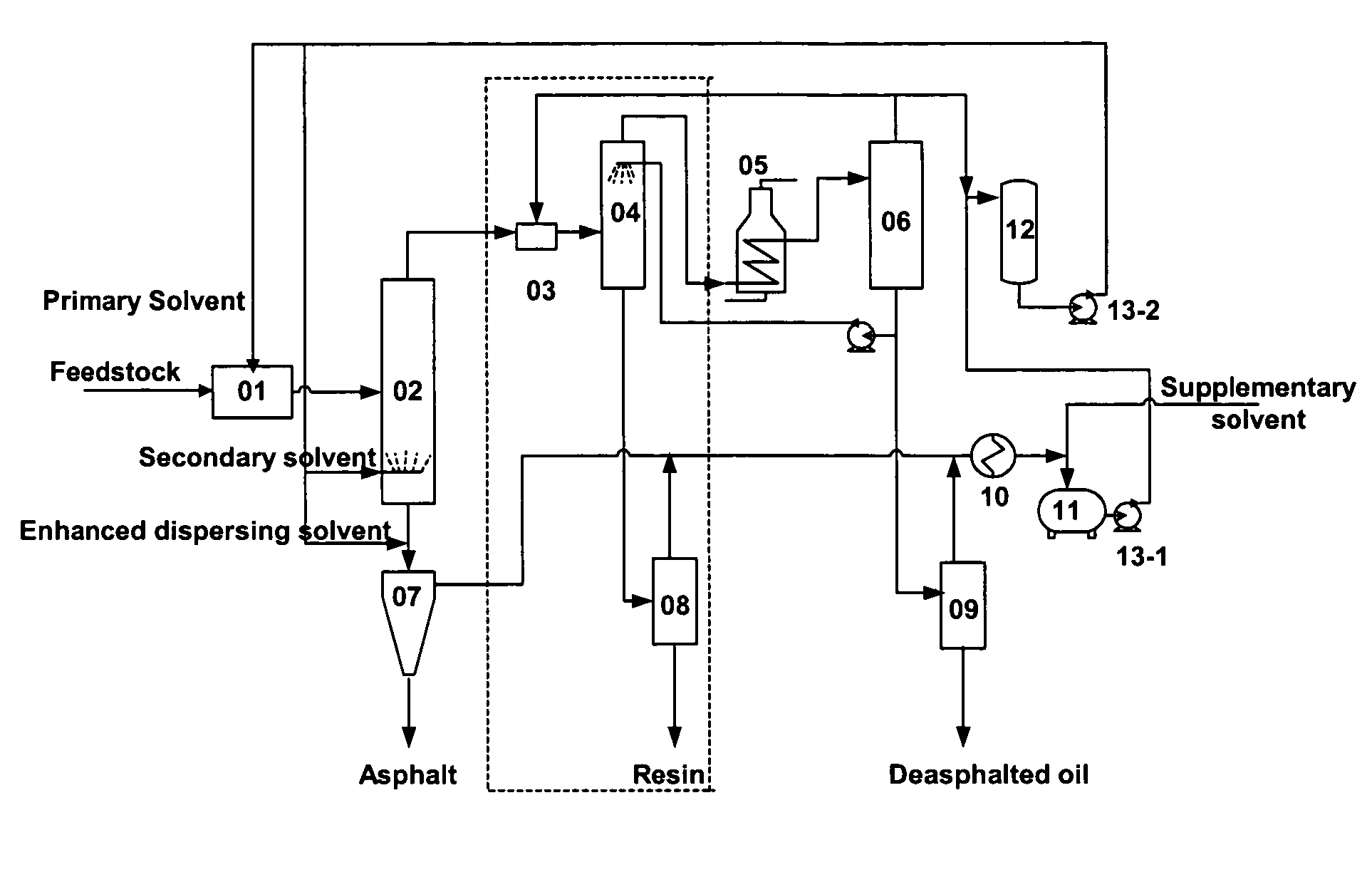

The present invention is a separation method and system in which granulation of coupled post-extraction asphalt residue is used to achieve deep separation of heavy oil. A dispersion solvent is introduced into the asphalt phase after separation by solvent extraction and the asphalt phase undergoes rapid phase change in a gas-solid separator and is dispersed into solid particles while the solvent vaporizes, resulting in low temperature separation of asphalt and solvent with adjustable size of the asphalt particles. The separation method of this invention also includes a three-stage separation of heavy oil feedstock, in which the deasphalted oil phase separated from heavy oil is treated with supercritical solvent and results in the further separation of the resin portion of the deasphalted oil, maximizing the yield and quality of the deasphalted oil. The processes and systems in this invention use atmospheric pressure and a low temperature gas-solid separator instead of a high temperature and high pressure furnace and do not require the feed pre-heating or heat exchange equipment at the inlet of resin separator column, resulting in a simplified process flow and reduced investment.
First Claim
Other Claims data not available
