Method and apparatus for connecting a passenger bridge to an aircraft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2009
Grant Date -
Apr 19, 2007
app pub date -
Sep 21, 2004
filing date -
Sep 24, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

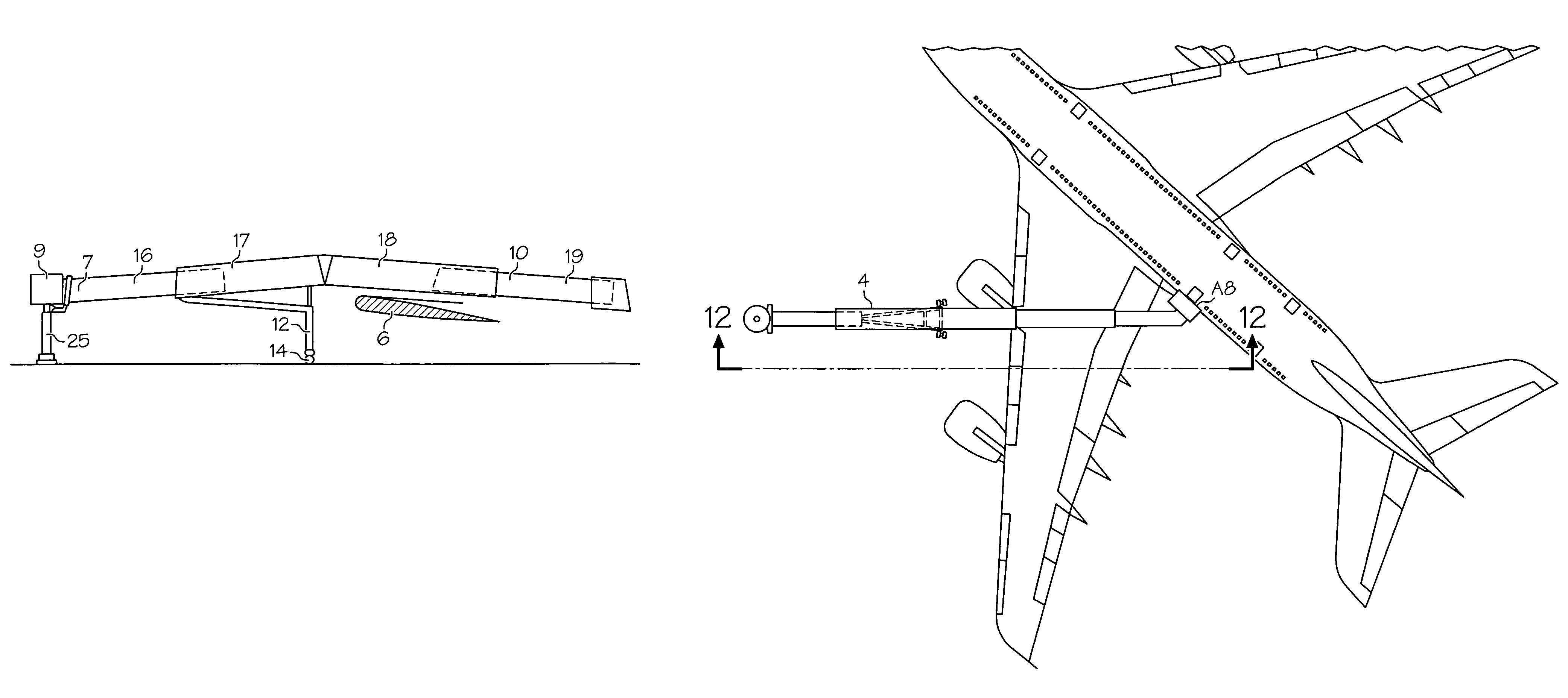

A method and apparatus for connecting the outer end of a telescopically extendable passenger bridge to an aircraft door aft of the wing. An inner part of the bridge is connected to a terminal building by a rotunda, and the outer part of the bridge carries a cabin for connection to the aircraft at a passenger door. The bridge is movable by a drive system positioned at the outermost end of the inner part of the bridge, and the outer part is pivotable in a vertical plane relative to the inner part. The bridge is moved to a docking position, and the drive system is positioned close to the leading edge of the aircraft wing. After telescopically extending the inner part of the bridge, the outer part is swung downward and is telescopically extended to an end position at which the cabin is docked against the aircraft body.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| SE | C2 | SE526976 | Sep 24, 2003 |
| EP | B1 | EP1667906 | Sep 21, 2004 |
| WO | A1 | WO2005028307 | Sep 21, 2004 |
International Classification(s)
- 2004 Application Filing Year
- E01D Class
- 54 Applications Filed
- 27 Patents Issued To-Date
- 50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E01D Class
- 7.69 % this patent is cited more than
- 16 Age
