Sewing frame of sewing machine and sewing frame drive mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2009
Grant Date -
May 15, 2008
app pub date -
May 1, 2007
filing date -
May 2, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

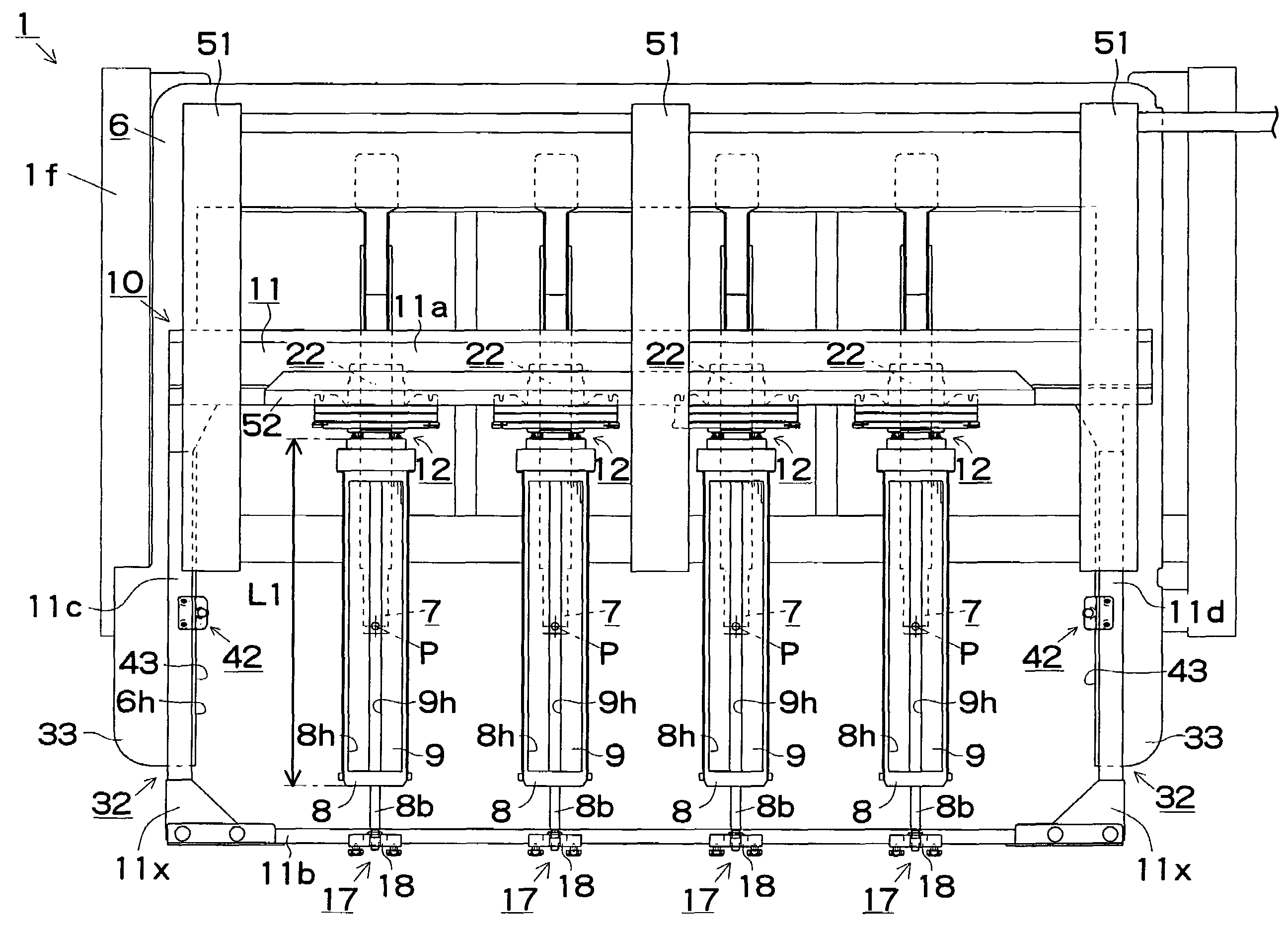

A sewing frame for extending and holding a sewing cloth is provided with a supported portion, such as a shaft and an engagement portion, which is movably or rotatably supported at front and rear frame side portions of the rectangular support frame at the front and rear ends. A sewing frame drive mechanism includes a support mechanism for supporting the front and rear ends of the sewing frame movably at the front and rear frame side portions of the support frame which is movable in the longitudinal direction but not movable in the lateral direction. The sewing frame drive unit includes left and right protruding portions to the left and right of recess portions of a table, and a front hanging preventive mechanism formed of left and right frame side portions of the support frame movably disposed on the left and right protruding portions in the longitudinal direction.
